KYOCERA Document Solutions

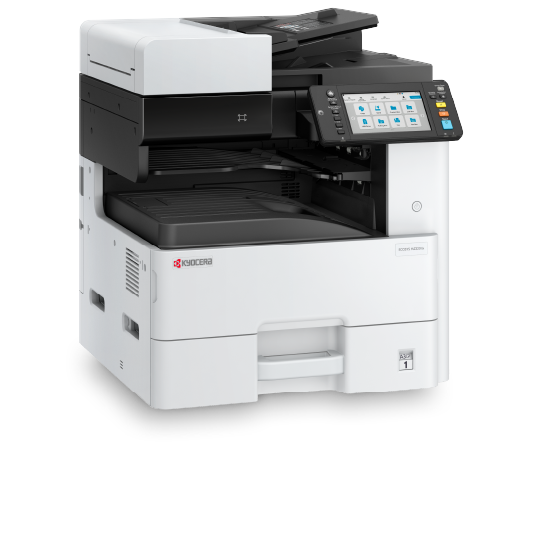

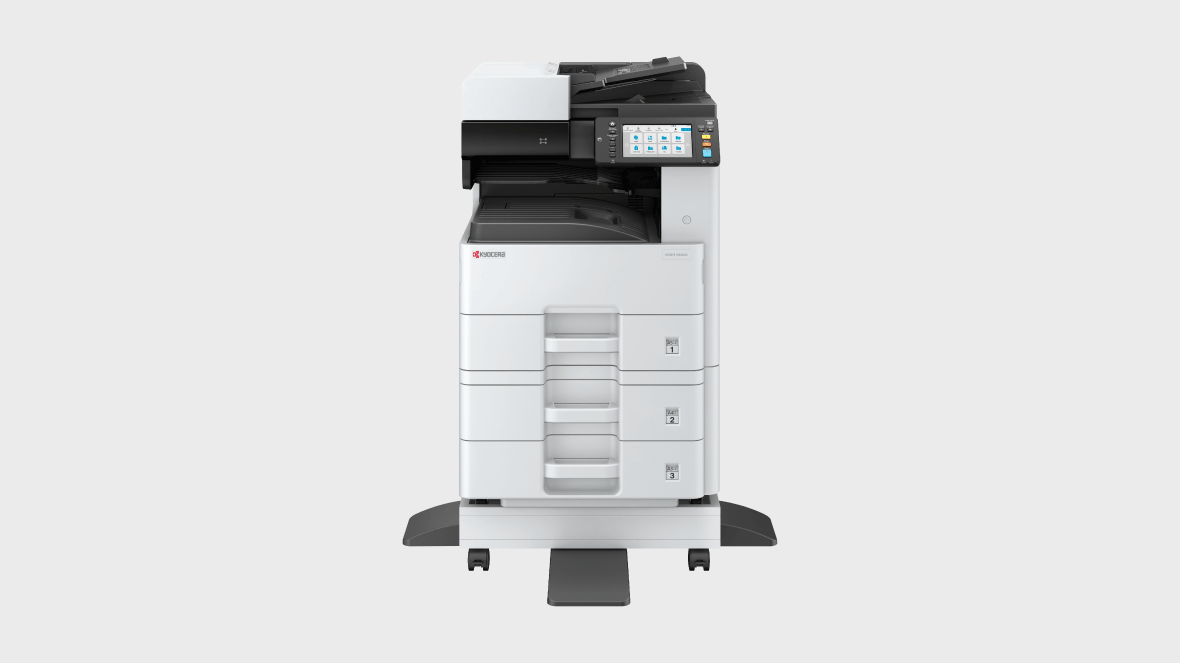

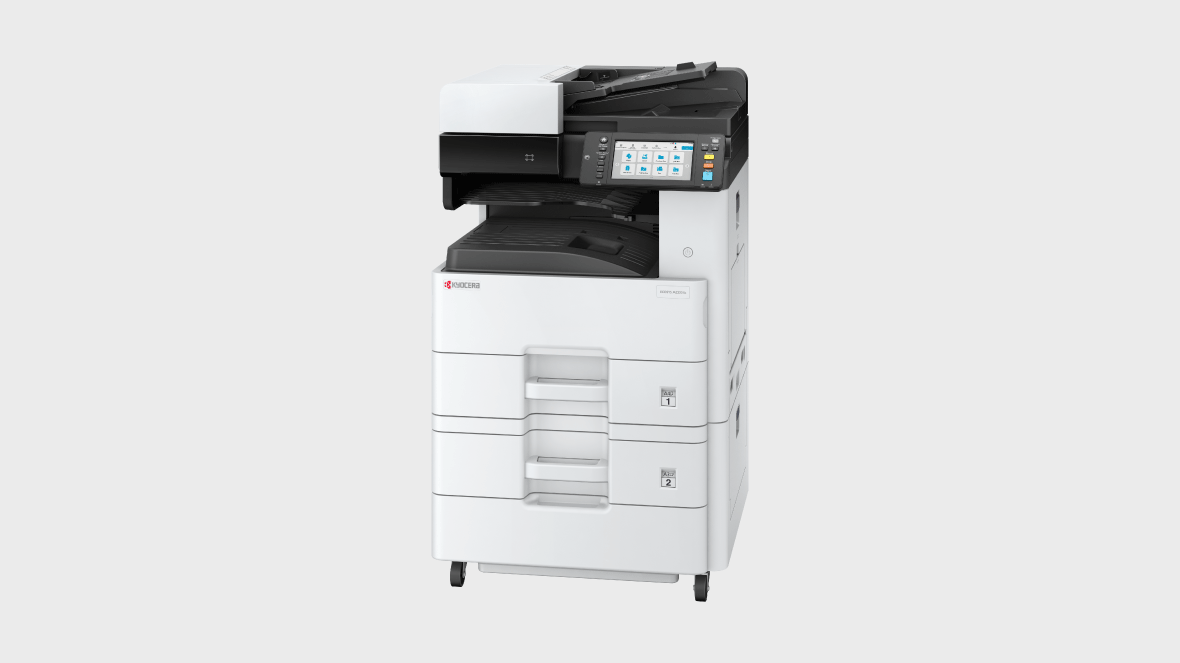

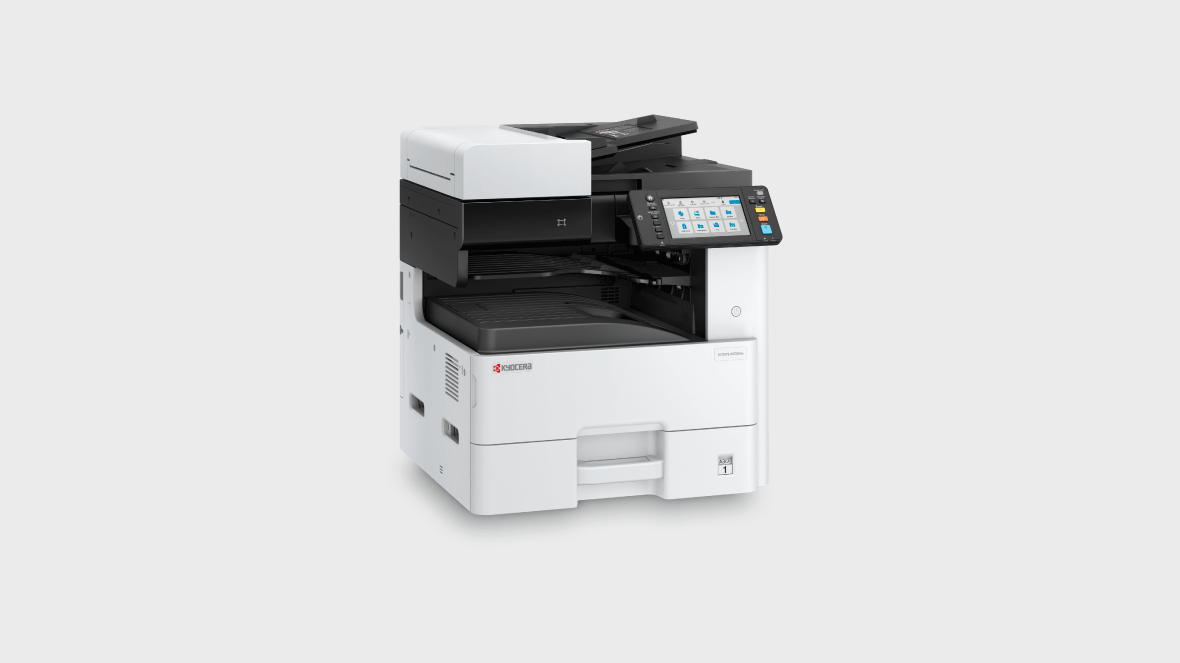

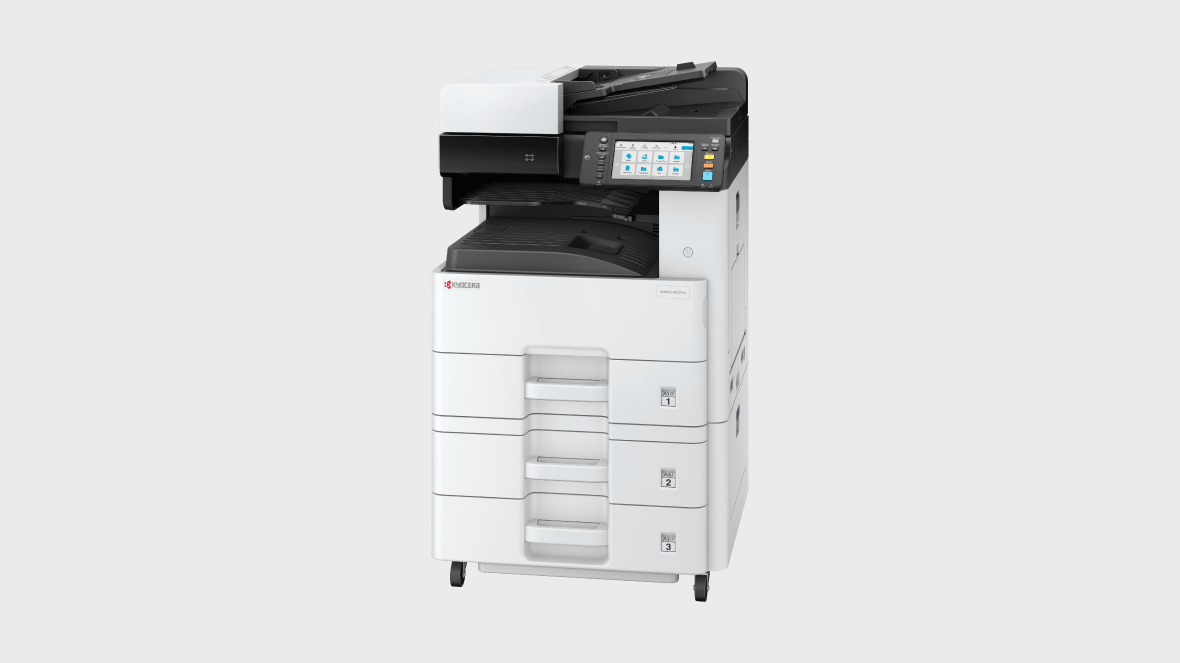

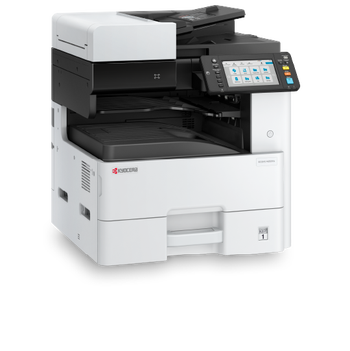

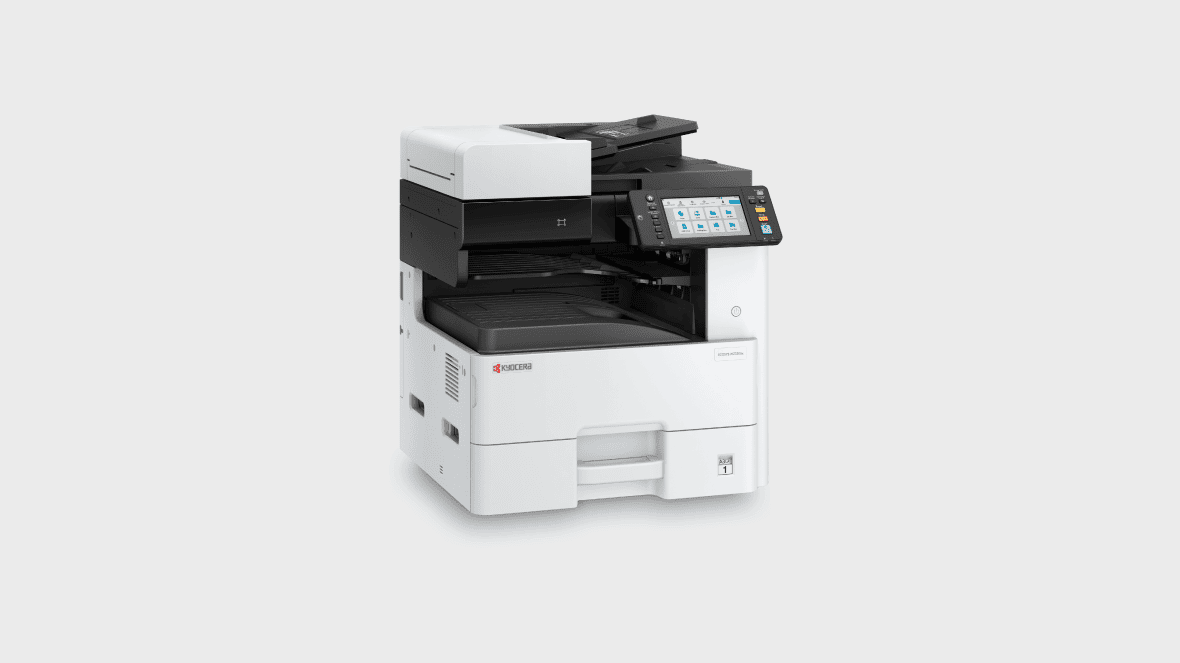

ECOSYS MZ3201ix
Kyocera ECOSYS devices are designed to do more with less. With long-life components, low energy use, and reliable performance, they help your team work smarter while cutting costs and downtime.
- Copy, colour scan and fax functionality
- Up to 32/17 PPM in black and white Cloud-ready applications
- Minimum installation and operation requirements.
- Long-life components provide exceptional reliability.
- HyPAS solution platform enables powerful customisations.
- Multi-Functional Products for day-to-day tasks
- A4 printer for all needs
- ECOSYS: The sustainable solution
Main Specifications
General
-
General
-
Paper handling
-
Print
-
Copy
-
Scan
-
Fax
General type
Monochrome multifunctional for A3 format
Engine speed
Up to 32/17 pages A4/A3 per minute (print/copy)
Warm-up time
21.5 seconds or less
Power consumption
Sleep-mode: less than 0.3 W, Ready mode: 70 W, Copying/Printing: 490 W
Input capacity
100-sheet multi-purpose tray, 45–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm), 500-sheet standard universal paper cassette; 60–163 g/m², A3, A4, A5,´B5, Ledger, Letter, Legal, Folio
Max. input capacity with options
1,600 sheets
Duplex unit
Duplex as standard supports 60–163 g/m²
Max. output capacity
Max. 300 sheets: 250 sheets face-down (Main Tray), plus 50 sheets (standard Job Separator Tray)
Document processor
Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)
Processor
ARM Cortex-A53 (Dual Core) / 1.4GHz
Fonts
Outlines: Outline font:
93 fonts (PCL6)
93 fonts (KPDL3)
4 fonts (Calibri)
4 fonts (Cambria)
Bitmap font:
1 font
79 fonts: processed as outline font
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print , Quick Copy, Proof and Hold, Job Storage and Job Management functionality
Applicable OS
MAC OS X Version 10.9 or higher,Unix, Linux as well as other operating systems on request
Max. original size
A3/Ledger
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
5 Reductions/5 Enlargements
Image adjustments
Text, Photo, Text + Photo, Graphic/Map
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip blank page
Scan functionalities
Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan
Scan speed
50 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4, colour)
Scan resolution
300 dpi x 300 dpi(Default),200 dpi x 200 dpi,200 dpi x 100 dpi 600 dpi x 600 dpi,400 dpi x 400 dpi,200 dpi x 400 dpi 1200 dpi x 1200 dpi (only with TWAIN Driver, WIA Driver
Max. scan size
A3/Ledger
File type
TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u
Original recognition
Text, photo, text + photo, light text, optimised for OCR
Compatibility
G3
Modem speed
Less than 3 seconds
Scanning speed
2.0 seconds/sheet or less
Transmission speed
Max. 33.6 kbps
Scanning density
Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
Max. original size
A3/Ledger
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast
Get More Information About Your Warranty Conditions.
More details about Your Standard Warranty conditions coverage and details can be found here.
Options and Consumables
Paper handling Options
-
Paper handling Options
-
Consumables
-
Options
MK-6110
Maintenance-Kit
MK-6860
Maintenance Kit for Imaging units (300,000 images)
Maintenance Kit for Imaging units (300,000 images)
TK-6860
Toner black for 15,000 pages. Average continuous toner yield in accordance with ISO/ICE 19752.
TK-6880
Toner black for 5,000 pages. Average continuous toner yield in accordance with ISO/ICE 19752.
CB-470
Wooden cabinet
CB-471
Base unit
CB-472
Metal cabinet
CB-473
Base unit (metal)
Card Authentication Kit (B)
Enables the use of the ID card user authentication system
FAX System 14
Super G3 Fax, Network Fax
HD-17
64 GB SSD hard disc for easy document management
HD-18
256 GB SSD hard disc for easy document management
HD-19
512 GB SSD hard disc for easy document management
IB-37
Wireless LAN Interface (802.11 a/b/g/n/ac, 5 GHz band / 2.4 GHz band, WiFi direct)
IB-38
Wireless LAN Interface (802.11 b/g/n, 2.4 GHz band, WiFi direct)
IB-53
Gigabit Network Interface (10BASE-T/100BASE-TX/1000BASE-T)
IB-54
Wireless LAN Card 5GHz/2.4GHz (IEEE802.11a/b/g/n/ac)
IB-55
Wireless LAN Card 2.4GHz (IEEE802.11b/g/n)
PCL Barcode Flash 3.0 Type D/E
Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).
Scan Extension Kit (A)
Creates searchable, editable PDF directly on the MFP system using built-in optical character recognition (OCR). Other target formats are Microsoft Word, Excel and PowerPoint. (SD/SDHC card or SSD hard drive required)
UG-33
ThinPrint Kit: enables printing under ThinPrint
Our environmental policy
The environment matters to Kyocera. We want to make the world a better place for the next generation.
Related products
Kyocera solutions to resolve all business needs.

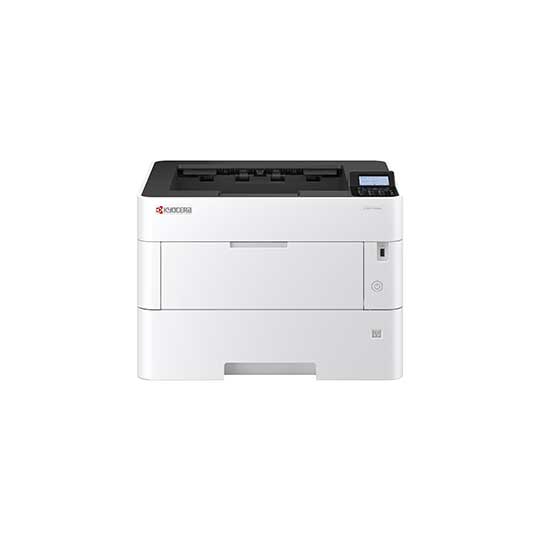

- ECOSYS P4140dn

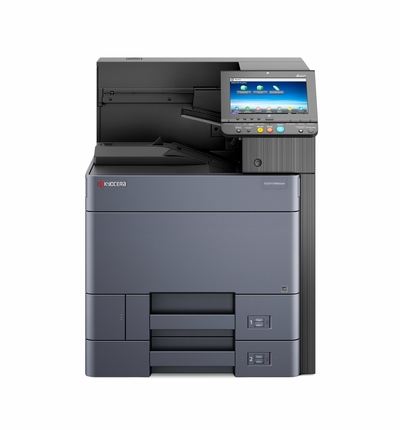

- ECOSYS P8060cdn

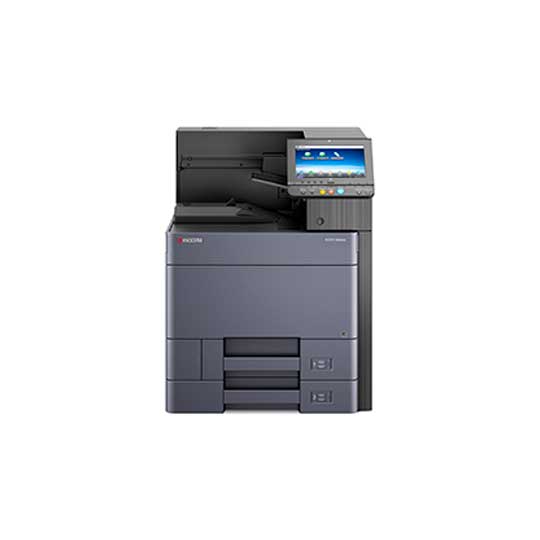

- ECOSYS P4060dn
