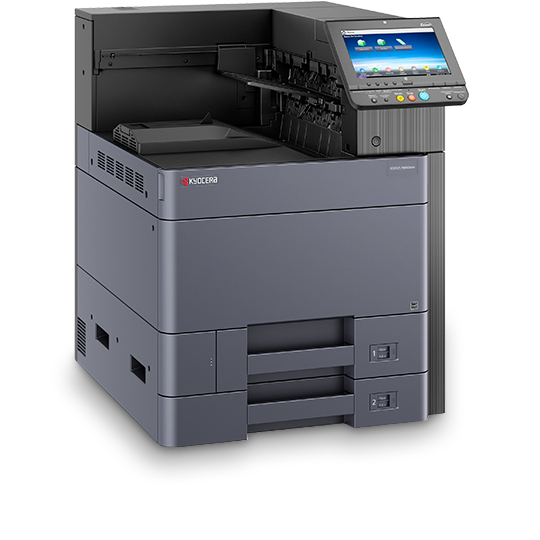

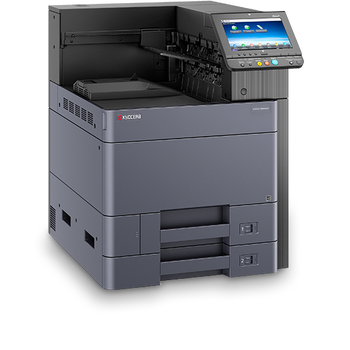

ECOSYS P8060cdn

Looking for the perfect office printing solution for medium to large workgroups which demand high productivity? The ECOSYS P8060cdn is easy to use and offers reliable 60 prints per minute. This colour printer covers it all.

  • Outstanding image quality due to advanced colour technology.
  • Advanced paper handling from A6 up to SRA3 and beyond.
  • Efficient and reliable long-life components.
  • HyPAS capable to run business applications for printing.
Engine speed

Up to 55/27 pages per minute A4/A3 in colour, up to 60/30 pages per minute A4/A3 in b/w

Resolution

1200 x 1200 dpi, 2 bit depth for print quality of 4,800 dpi equivalent x 1,200 dpi

Dimensions (W x D x H)

602 x 665 x 790 mm

Warranty

Additional warranty on long-life parts for 3 years or 600 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Printing solutions to make a business run smoothly

    Printing solutions to make a business run smoothly

    Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA's complete portfolio of reliable, high-value, Eco-Friendly network laser printers, deliver high resolution output with crisp black and white or vibrant colour prints, whether they are text or graphics, for any size work group.

    Printing solutions to make a business run smoothly
    Printing solutions to make a business run smoothly

    With the introduction of a Kyocera printer, printing can become reliable, quick and low cost.

  • Powerful, reliable and economical

    Powerful, reliable and economical

    Whether on your desktop of in office production – be it in colour or black and white: with KYOCERA, you always achieve the best possible print quality while easily controlling your output costs.  KYOCERA devices and their components have been designed to be extremely reliable and highly economical.

    Powerful, reliable and economical
    Powerful, reliable and economical

    For a printer that can be trusted to produce the goods whenever required.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS P8060cdn drivers
  • ECOSYS P8060cdn documentation
  • ECOSYS P8060cdn software

Main Specifications

  • General
  • Paper Handling
  • Print
General type
COLOUR PRINTER FOR A3 FORMAT
Engine speed
Up to 55/27 pages per minute A4/A3 in colour, up to 60/30 pages per minute A4/A3 in b/w
Warm-up time
17 seconds or less from power on
Power consumption
Printing: 960 W (in colour and b/w) Stand-by: 60 W, Sleep-mode: 1 W or less
Warranty
1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 600,000 pages A4 (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
Input capacity
150-sheet multipurpose tray, 52 – 300 g/m² (Banner 135 – 165 g/m²), A6R – SRA3 (320 x 450 mm), Tab paper (136 – 256 g/m²), Banner max. 320 x 1,220 mm; 2 x 500-sheet universal paper cassette, 52 – 300 g/m², upper cassette A6R up to A4R, lower cassette A6R up to SRA3
Max. input capacity with options
7,150 sheets A4
Duplex unit
Duplex as standard supports A6R – SRA3 (320 x 450 mm), 64 – 256 g/m²
Max. output capacity
Standard 500 sheets face-down, max. output capacity with options 4,300 sheets
Processor
Freescale QorIQ T1024 (Dual Core) 1.2 GHz
Fonts
93 outline fonts (PCL), 136 fonts (KPDL3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Applicable OS
All current Windows operating systems, Mac OS X Version 10.8 or higher, UNIX LINUX, as well as other operating systems on request

Options and Consumables

  • Paper Handling Options
  • Consumables
  • Options

TK-8800K
Toner black for 30,000 pages. Average continuous toner yield in accordance with ISO/ICE 19798. Capacity of starter toner black 15,000 pages in accordance with ISO/IEC 19798.

TK-8800C
Toner cyan for 20,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798. Capacity of starter toner cyan 10,000 pages in accordance with ISO/IEC 19798.

TK-8800M
Toner magenta for 20,000 pages. Average continuous toner yield in accordance with ISO/IEC. 19798 Capacity of starter toner magenta 10,000 pages in accordance with ISO/IEC 19798.

TK-8800Y
Toner yellow for 20,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798. Capacity of starter toner yellow 10,000 pages in accordance with ISO/IEC 19798.

WT-8500
Waste Toner Bottle: 40.000 sheets or more (in accordance with ISO/IEC 19798, ratio b/w: colour = 7:3)

Data Security Kit (E) AC
In line with ISO 15408 (Common Criteria) with security level EAL3. Only 4in1 MFP-models carry official CC-Certification.

IB-35
Direct WiFi Interface

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

NK-7100
Numeric keypad make it easier to enter large amounts of numeric data.

UG-33
ThinPrint support

UG-34
Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)

Banner Guide (10)

MT-730(B)
Mailbox sorter for DF-7100

BF-730
Booklet and tri-folding unit for DF-7110

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

KPC-12
Paper clamp to protect paper for standard cassettes, PF-7100/PF-7120

KPC-13
Paper clamp to protect for PF-7110

Our environmental policy

The environment matters to Kyocera. We want to make the world a better place for the next generation.

Related products

Kyocera solutions to resolve all business needs.

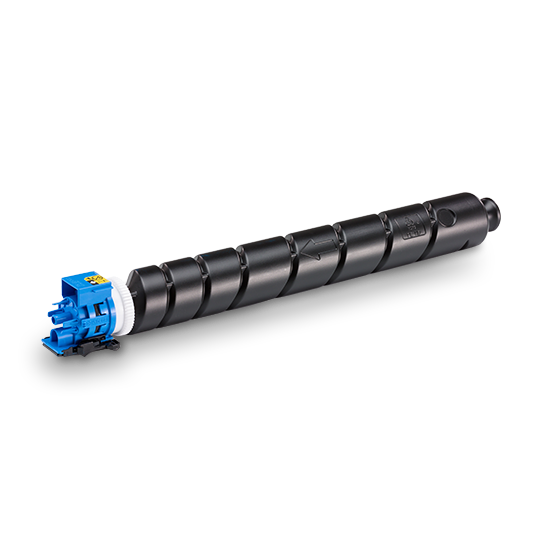

  • TK-8800C

    Toner cyan yield 20,000 pages in accordance with ISO/IEC 19798.

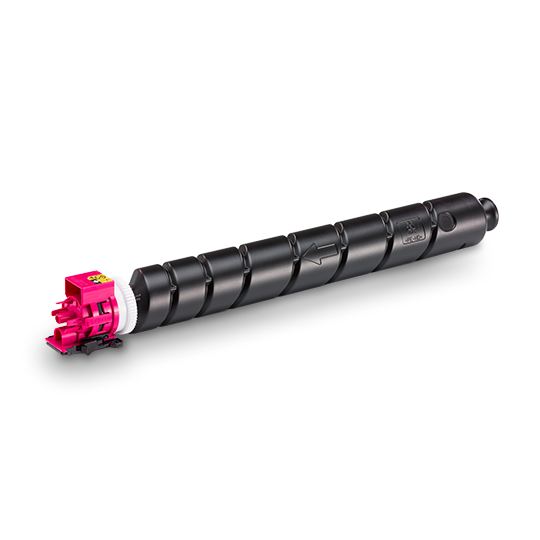

  • TK-8800M

    Toner magenta yield 20,000 pages in accordance with ISO/IEC 19798.

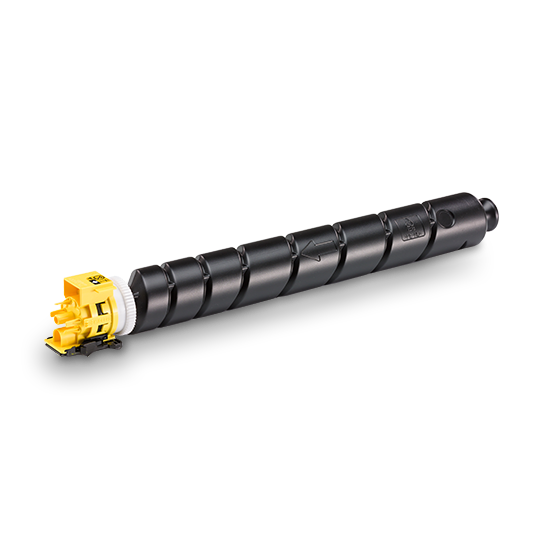

  • TK-8800Y
