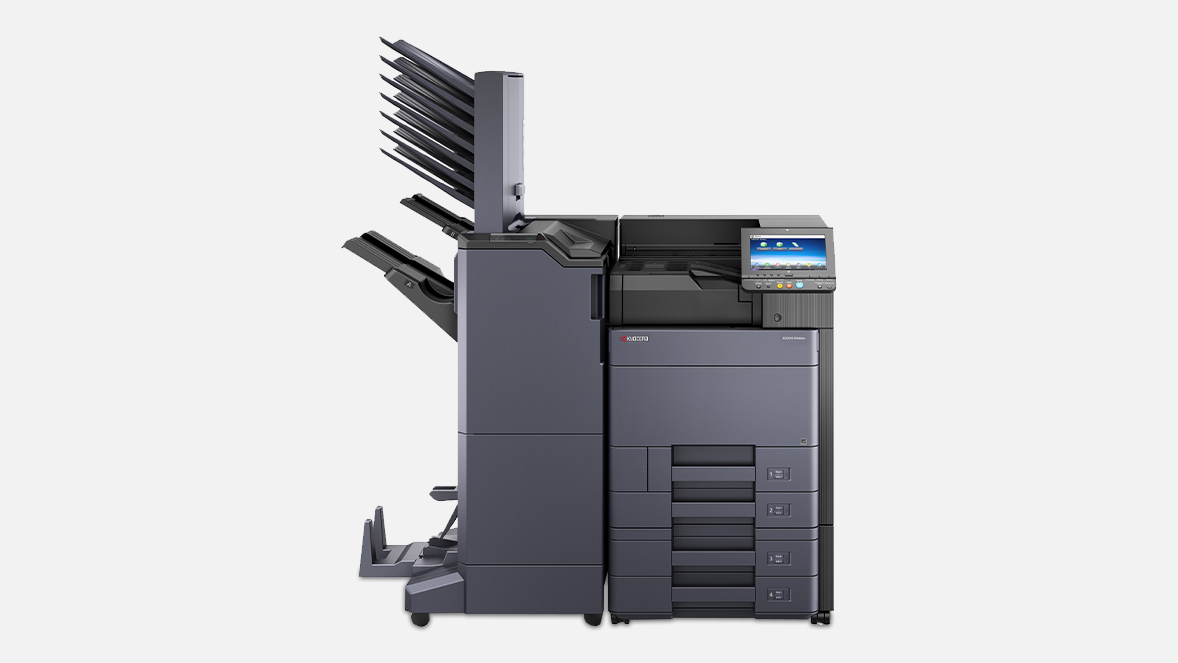

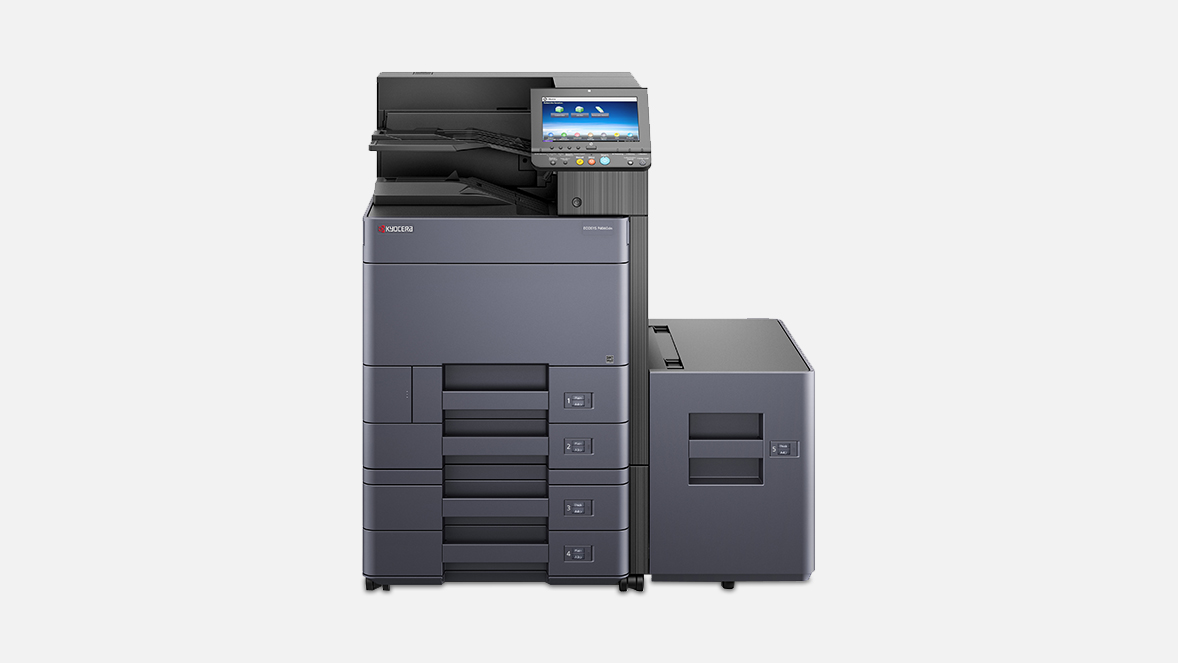

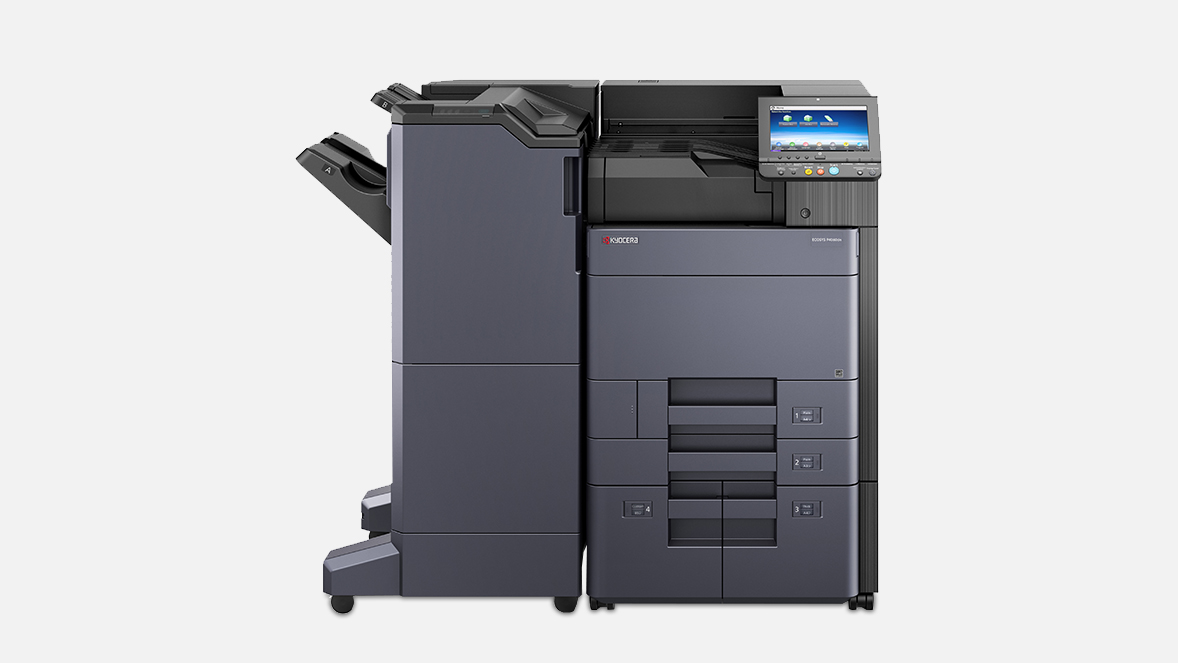

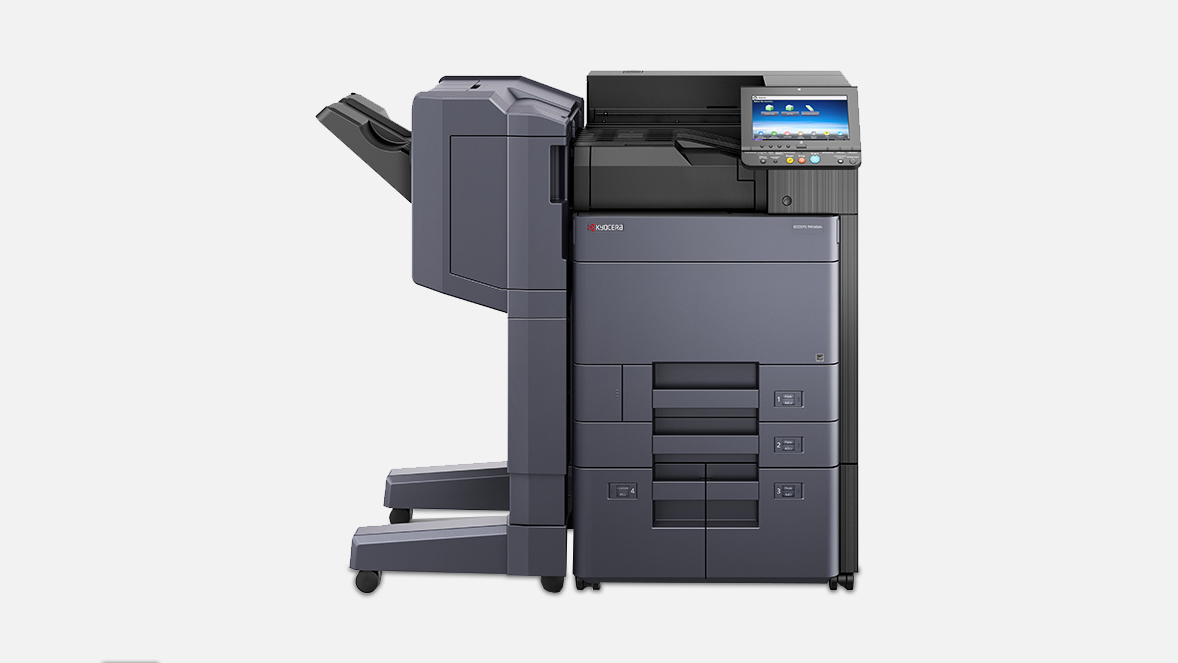

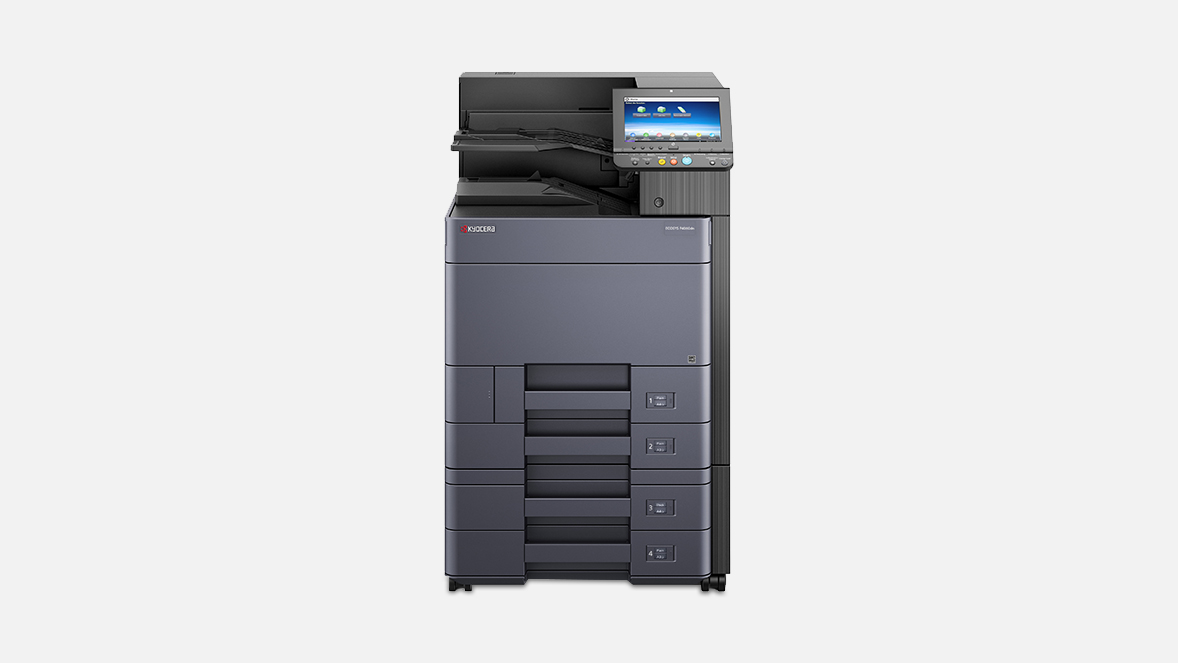

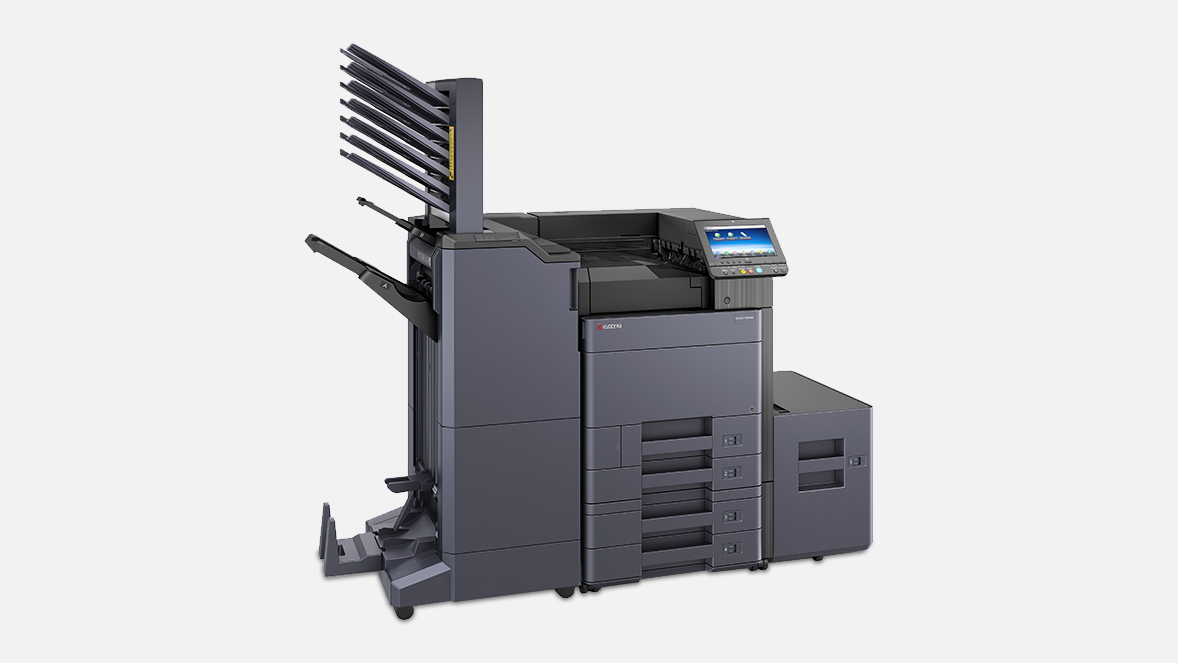

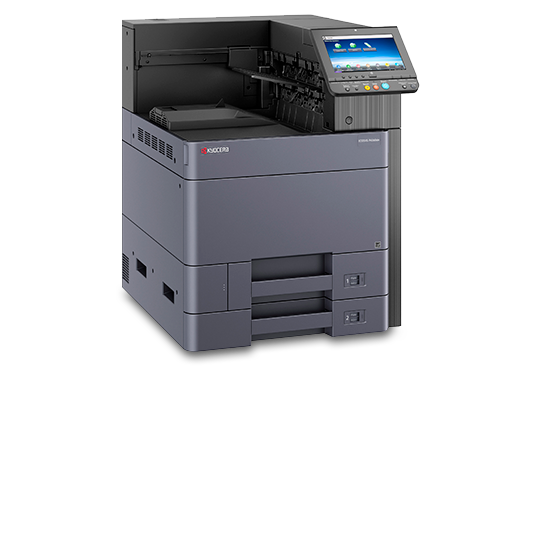

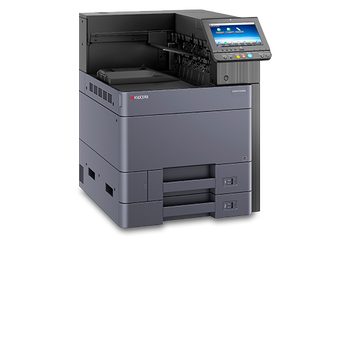

ECOSYS P4060dn

The high-end, solution capable A3 mono printer will meet all of your demanding office requirements. With a print speed of up 60 pages per minute for A4 size paper and a fast first print out in 3.8 seconds, it will be ready when you need it. A user-friendly 22.8 cm (9 inch) full-colour and intuitive touch panel makes all the device’s features easily accessible. This combined with our long-life components will provide exceptional efficiency and reliability, making this printer the perfect choice to increase overall productivity in workgroups and production offices.

  • User friendly operation and comprehensive modular design.
  • Advanced paper handling from A6 up to SRA3 and beyond.
  • Efficient and reliable long-life components.
  • HyPAS capable to run business applications for printing.
Engine speed

Up to 60/30 pages per minute A4/A3 in b/w

Resolution

1,200 x 1,200 dpi, 2 bit depth for print quality of 4,800 dpi equivalent x 1,200 dpi

Time to first print

Approx. 3.8 seconds or less

High image quality and usability made sustainable

Through its ECOSYS range, Kyocera showcases its commitment to a sustainable future without compromising on quality or efficiency. The responsible choice for business and the environment.

  • Optimise your valuable time: Printing made easy

    Optimise your valuable time: Printing made easy

    With a full-colour and intuitive touch panel, improved paper size and self-closing mechanism, the ECOSYS P4060dn gives you the printing user-experience you have been waiting for. Excellent mobile device support ensures you are never disconnected.

    Optimise your valuable time: Printing made easy
    Optimise your valuable time: Printing made easy

    Thanks to a user-friendly touch panel and self-closing mechanism, printing documents has never been easier with the ECOSYS P4060dn.

  • The high quality your documents deserve

    The high quality your documents deserve

    Offering full speed 1200 dpi printing as well as enhancement of image quality by iToner, the ECOSYS P4060dn gives users reliable and consistently high image quality without sacrificing efficiency.

    The high quality your documents deserve
    The high quality your documents deserve

    Using the latest technology, the ECOSYS P4060dn ensures high quality printing without compromising on efficiency.

  • Set-up and maintenance made simple

    Set-up and maintenance made simple

    Thanks to transferrable know-how from the existing ECOSYS range, our service people are already equipped with the training to serve users of our latest ECOSYS P4060dn in a timely and efficient manner.

    Set-up and maintenance made simple
    Set-up and maintenance made simple

    When it comes to set-up and maintenance, simplicity is key. Kyocera: making your life easier.

Main Specifications

General
  • General
  • Paper handling
  • Print
General type
Mono Printer for A3 format
Engine speed
Up to 60/30 pages per minute A4/A3 in b/w
Warm-up time
Approx. 17 seconds or less
Power consumption
Printing: 820 W Ready mode: 40 W Sleep-mode: 1.0 W
Warranty
1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 600,000 pages A4 (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
Input capacity
Multi-purpose tray: 150 sheets, 52 – 300 g/m2, (Banner 135 – 165 g/m2 ), A6R – SRA3 (320 x 450 mm), Tab paper (136 –256 g/m2 ), Banner max. 320 x 1,220 mm, 2x 500-sheet universal paper cassette, 52 – 300 g/m2, upper cassette A6R up to A4R, lower cassette A6R up to SRA3
Max. input capacity with options
7,150 sheets A4
Duplex unit
Duplex as standard supports A6R – SRA3 (320 x 450 mm), 64 – 256 g/m2
Max. output capacity
Standard 500 sheets face-down, max. output capacity with options 4,300 sheets
Processor
Freescale QorIQ T1024 (Dual Core) 1.2 GHz
Fonts
93 outline fonts (PCL), 136 fonts (KPDL3), 8 fonts (Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Applicable OS
All current Windows operating systems MAC OS X Version 10.9 or higher Unix, Linux as well as other operating systems on request

Options and Consumables

Paper handling options
  • Paper handling options
  • Consumables
  • Options

TK-6330
Toner black for 32,000 pages. Average continuous toner yield in accordance with ISO/ICE 19752. Capacity of starter toner black 16,000 pages in accordance with ISO/IEC 19752.

WT-8500
Waste Toner Bottle: 40,000 sheets (in accordance with 5% coverage b/w:colour=7:3)

SH-10
Staple cartridge

SH-12
Staple cartridge

CB-7110M
Metal cabinet

CB-7100W
Wooden cabinet

Data Security Kit (E) AC
In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

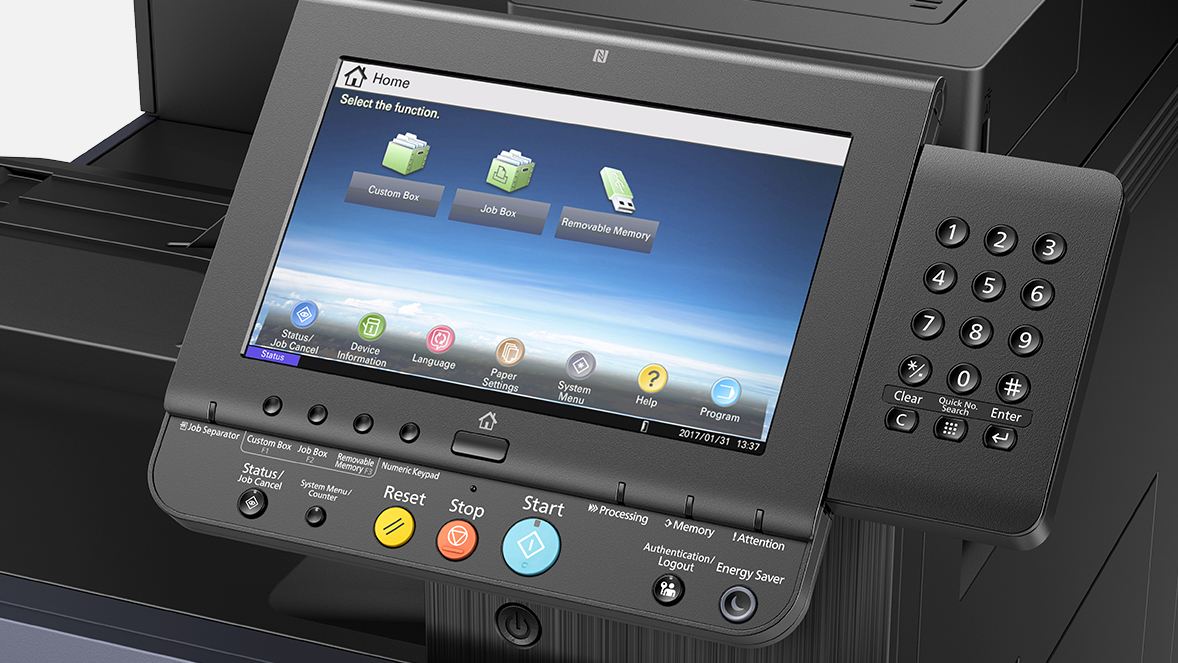

NK-7100
Numeric keypad make it easier to enter large amounts of numeric data.

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Card Authentication Kit (B)
Support for various authentication keys available

UG-33
ThinPrint support

UG-34
Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)

IB-35
Direct WiFi Interface

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KPC-12
Paper clamp to protect paper for standard cassettes, PF-7100/PF-7120

KPC-13
Paper clamp to protect for PF-7110

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

Find the perfect match

Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
Set it up Set it up

Downloads

  • ECOSYS P4060dn drivers
  • ECOSYS P4060dn documentation
  • ECOSYS P4060dn software

Related products

  • ECOSYS P4040

    ECOSYS P4040

    A printer for workgroups that require a wide variety of output sizes from A6 up to A3.

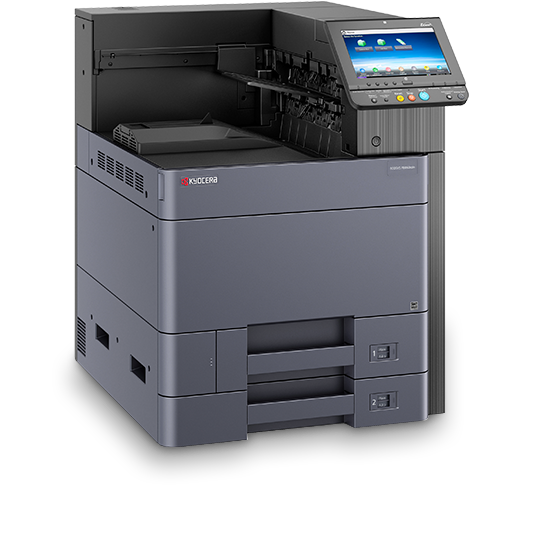

  • ECOSYS P8060dn
