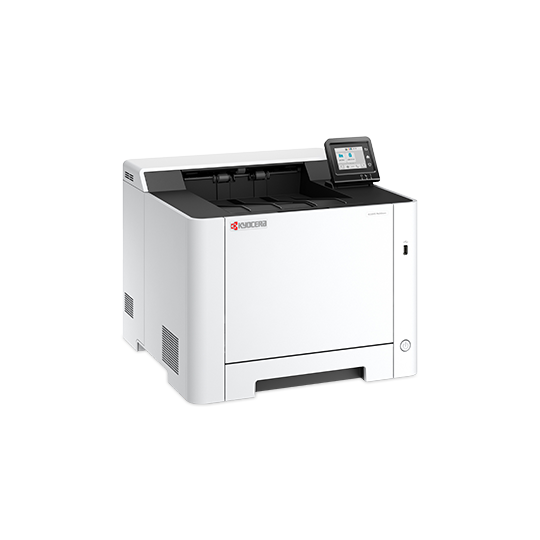

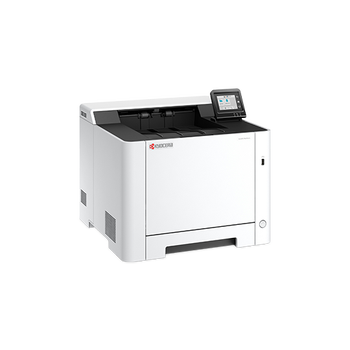

    540x540-MFP_PA2101cwx_comb01_left_01-removebg

    ECOSYS PA2101cwx

    Compact and reliable, the ECOSYS PA2101cwx is a high-quality, economical colour A4 printer designed to fit perfectly on your desk and deliver consistent performance.

    • Print speed up to 21 ppm b&w and 21 ppm colour
    • 2.7 inch touch screen for easy operation.
    • Enterprise grade information security to protect against threats
    • Optional additional paper feeder for a total of 550 sheets
    • Standard wireless and Wi-Fi Direct
    Engine speed
    Engine speed

    Up to 21 pages per minute in A4 in colour and b/w

    Resolution
    Resolution

    1,200 x 1,200 dpi print at reduced speed, multibit technology for print quality of up to 9,600 x 600 dpi (print), 600 x 600 dpi

    Weight
    Weight

    Approx. 22 kg including toner container

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    410 x 410 x 329 mm

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • ECOSYS PA2101cwx drivers
    • ECOSYS PA2101cwx documentation
    • ECOSYS PA2101cwx software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    540x540-MFP_PA2101cwx_comb01_left_01-removebg
    General type
    Colour printer for A4 format
    Engine speed
    Up to 21 pages per minute in A4 in colour and b/w
    Warm-up time
    Approx. 32 seconds or less from power on
    Power consumption
    Printing: 345 W, Ready mode: 33 W, Sleep-mode: 0.4 W
    Warranty
    1-year warranty as standard (depending on the country). KYOCERA guarantees the drums and developers for 3 years or maximum 100,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
    Input capacity
    50-sheet multi-purpose tray; 60–220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette; 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148 –216 x 356mm).
    Max. input capacity with options
    550 sheets
    Duplex unit
    Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal
    Max. output capacity
    150-sheet face-down
    Processor
    ARM Cortex-A53 single core 1.0GHz
    Fonts
    93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
    Applicable OS
    All current Windows operating systems, Mac OS X Version 10.8 or higher, UNIX, LINUX as well as other operating systems on request

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Consumables
    • Options

    TK-5480C
    Average continuous cyan toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5480K
    Average continuous black toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5480M
    Average continuous magenta toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5480Y
    Average continuous yellow toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490C
    Average continuous cyan toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490K
    Average continuous black toner yield 2,800 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490M
    Average continuous magenta toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490Y
    Average continuous yellow toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,500 pages in accordance with ISO/IEC 19798.

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    UG-51/UPGRADE KIT
    Trusted Platform Module (TPM)

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

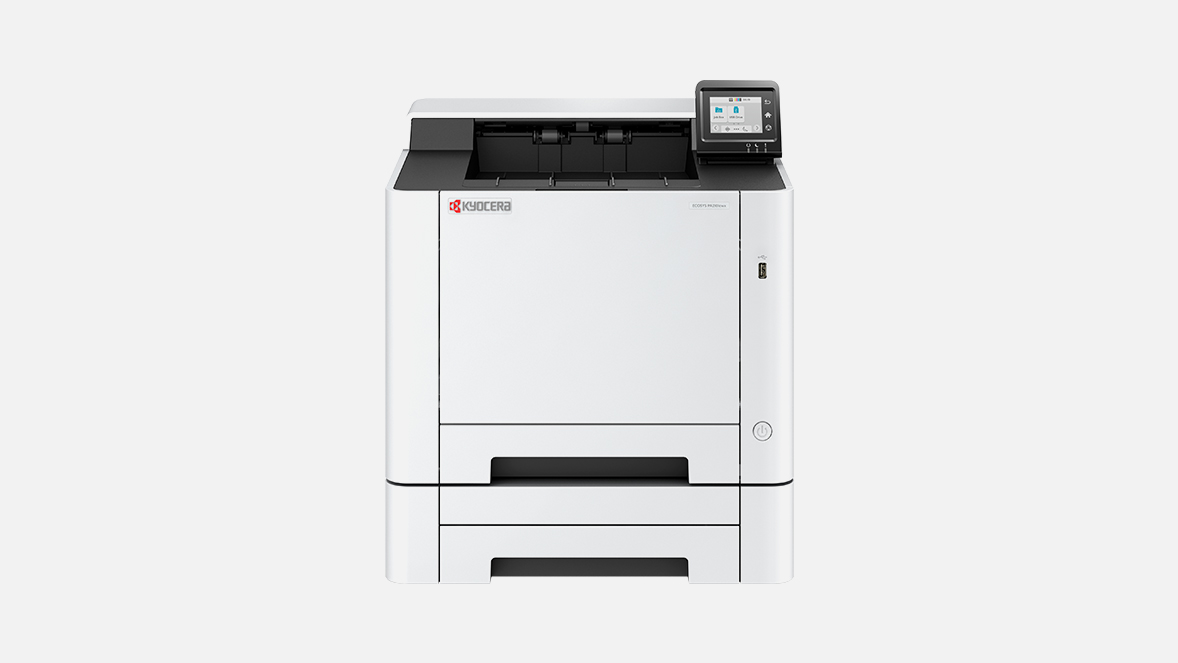

    • 1178x663-MFP_PA2101cwx_comb02_front_01

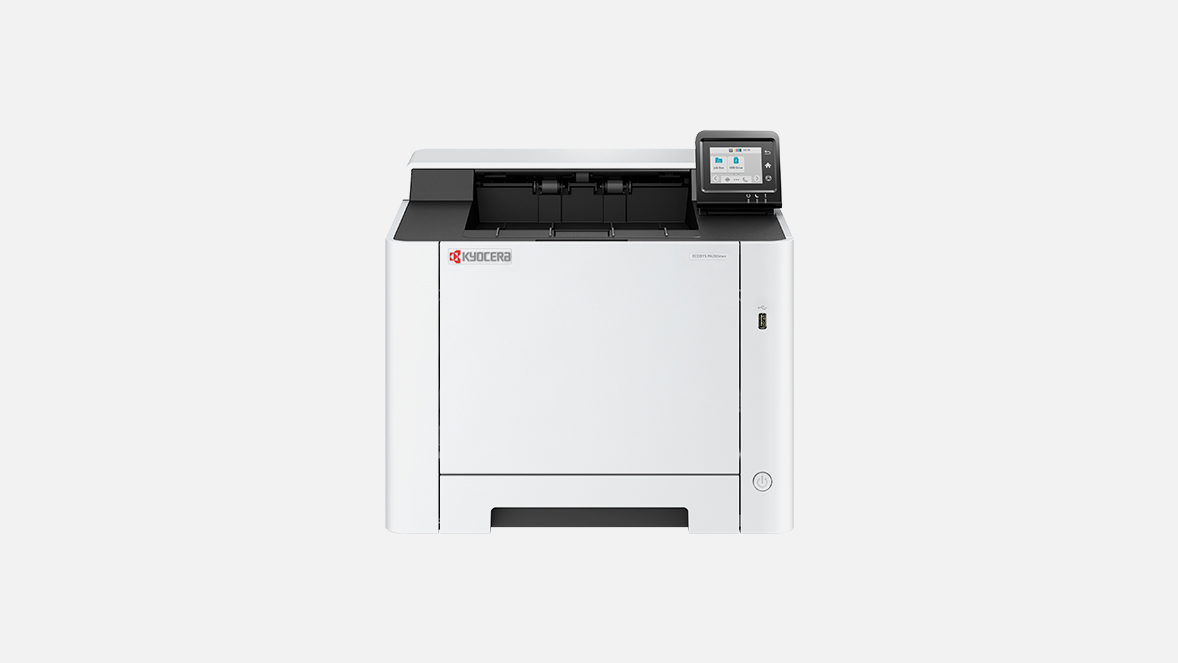

    • 1178x663-MFP_PA2101cwx_comb01_front_01

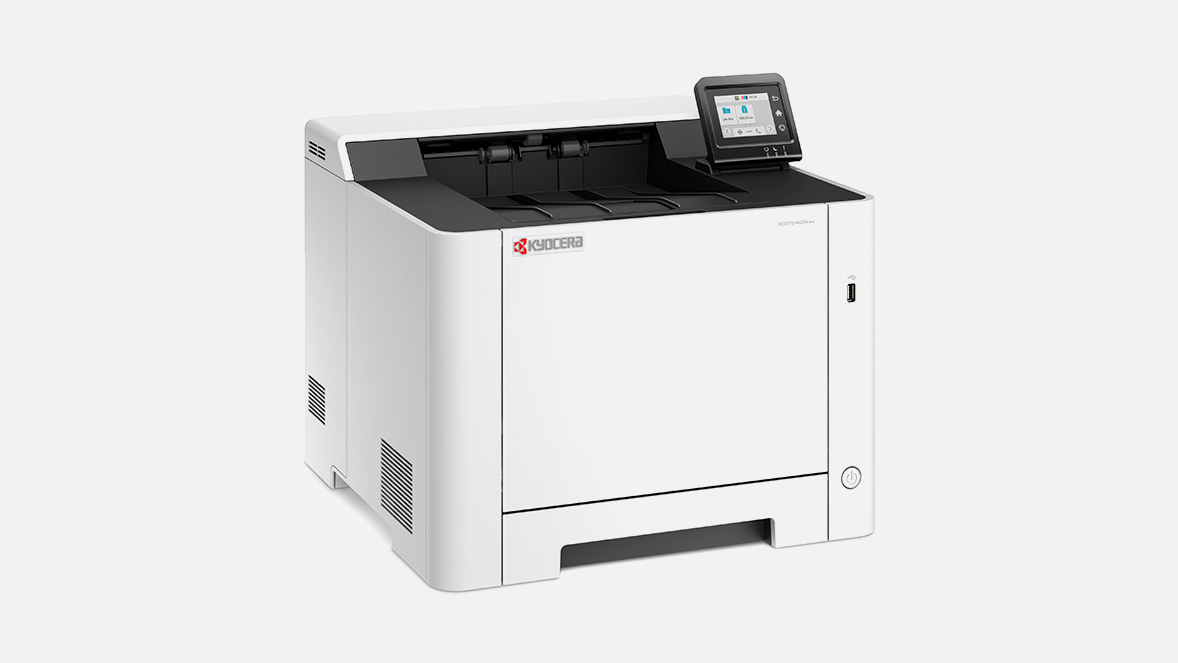

    • 1178x663-MFP_PA2101cwx_comb01_left_01
