      ECOSYS MA2101cfx

      The ECOSYS MA2101cfx is a versatile colour network MFP designed for small workgroups and individual users that seek maximum productivity, reliability and affordability.
      • Enterprise level information security to protect against threats
      • Integration of personal cloud storage services
      • Print speed up to 21 ppm b&w and 21 ppm color
      • Optional additional paper feeder for a total of 550 sheets

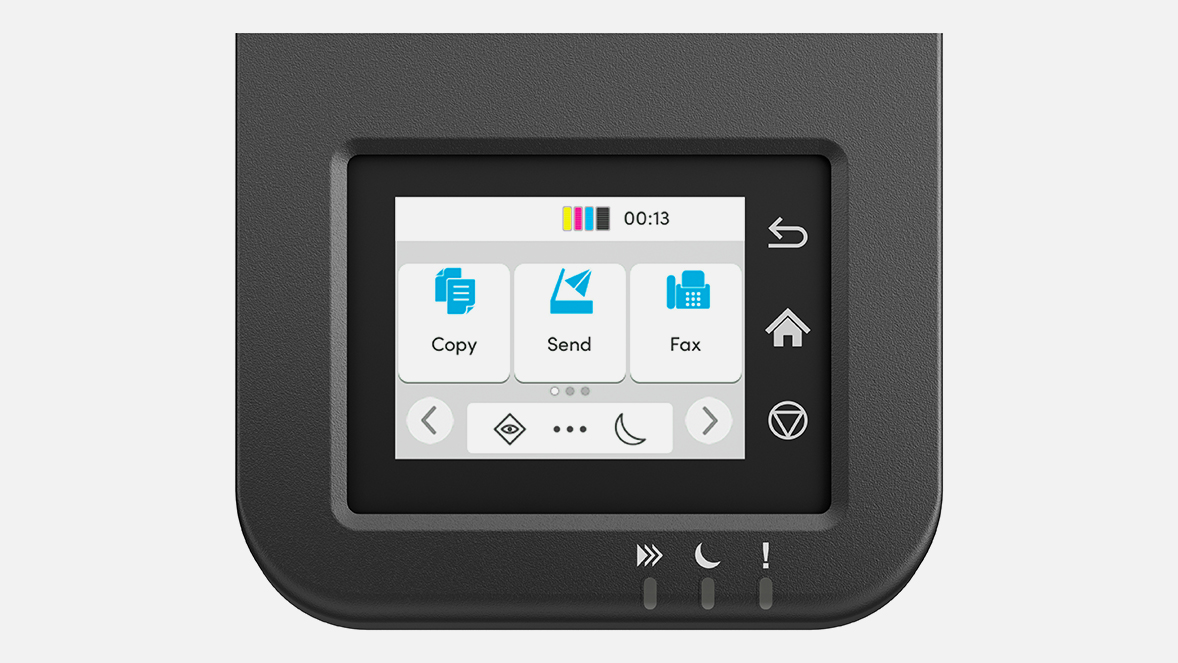

      • 2.7 inch touch screen for easy operation.

      ECOSYS makes your office more sustainable and efficient

      Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
      • ECOSYS MA2101cfx Drivers
      • ECOSYS MA2101cfx Documentation
      • ECOSYS MA2101cfx Software

      Main Specifications

      General
      • General
      • Paper handling
      • Print
      • Copy
      • Scan
      • Fax
      540x540-MFP_MA2101cfx_comb01_left_01-removebg
      General type
      Colour multifunctional for A4 format
      Engine speed
      Up to 21 pages A4 per minute in colour and b/w
      Warm-up time
      Approx. 32 seconds or less
      Power consumption

      Copy / Print: 345 W, Ready mode: 33 W, Sleep-mode: 0.3 W

      Warranty
      1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 100,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
      Input capacity

      50-sheet multi-purpose tray; 60–220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette, 60–163 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148 –216 x 356 mm).

      Max. input capacity with options

      550 sheets

      Duplex unit

      Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal

      Max. output capacity

      150 sheets face-down with paper full detection

      Document processor

      50-sheet, 60-90 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)

      Processor
      ARM Cortex-A53 single core 1.0GHz
      Fonts

      94 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

      Applicable OS

      All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

      Continuous copy
      1 – 999
      Zoom range

      25 - 400 % in 1% steps

      Preset magnification ratios

      7 Reductions/5 Enlargements

      Image adjustments

      Text + Photo, Photo, Text, Map, Printed document

      Digital copy features

      Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control

      Scan functionalities

      Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)

      Scan speed

      27 ipm (300 dpi, A4, b/w), 22 ipm (300 dpi, A4, colour)

      Scan features

      Integrated address book, Active directory support, encrypted data transfer, Blank sheet skip

      Scan resolution

      600, 400, 300, 200 dpi (256 grey scales per colour)

      Max. scan size
      A4 / legal
      File type

      TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS

      Original recognition

      Text + Photo, Photo, Text, Light Text, Text (for OCR)

      Compatibility
      ITU-T Super G3
      Modem speed
      Max. 33.6 kbps
      Scanning speed

      2 seconds /sheet or less

      Transmission speed
      3 seconds or less
      Scanning density

      Normal: 200 x 100 dpi,Fine: 200 x 200 dpi,Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi

      Max. original size
      A4 / legal
      Fax features

      Network fax, duplex transmission and reception,polling transmission and reception

      Options and Consumables

      Paper handling Options
      • Paper handling Options
      • Consumables
      • Options
      TK-5480C

      Average continuous cyan toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5480K

      Average continuous black toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5480M

      Average continuous magenta toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5480Y

      Average continuous yellow toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5490C

      Average continuous cyan toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5490K

      Average continuous black toner yield 2,800 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5490M

      Average continuous magenta toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,500 pages in accordance with ISO/IEC 19798.
      TK-5490Y

      Average continuous yellow toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,500 pages in accordance with ISO/IEC 19798.
      KYOmulticode SD 3

      Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
      PCL Barcode Flash 3.0 Type D/E

      Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).
      UG-33

      ThinPrint Kit: enables printing under ThinPrint
      UG-51/UPGRADE KIT

      Trusted Platform Module (TPM)
      USB_IC_CARDREADER

      Simplifies authentication on the system
