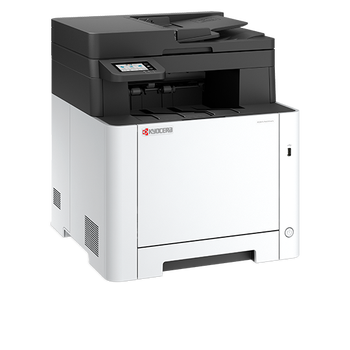

    540x540-MFP_MA2101cwfx_comb01_left_01

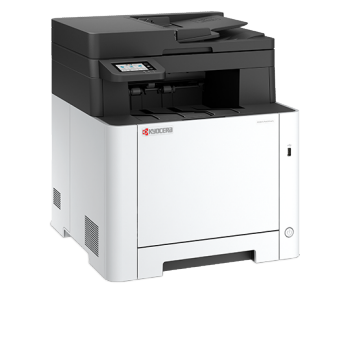

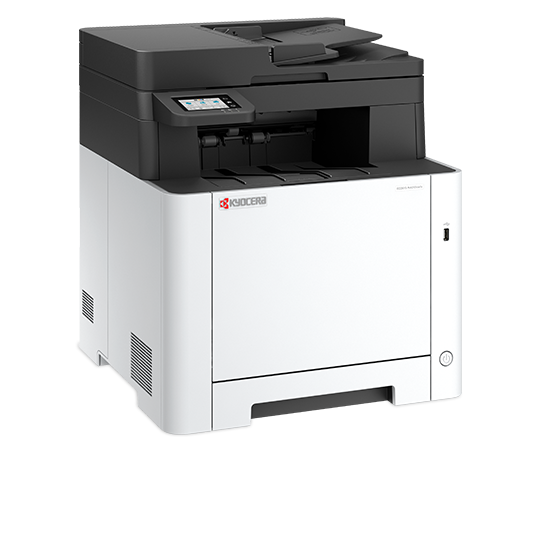

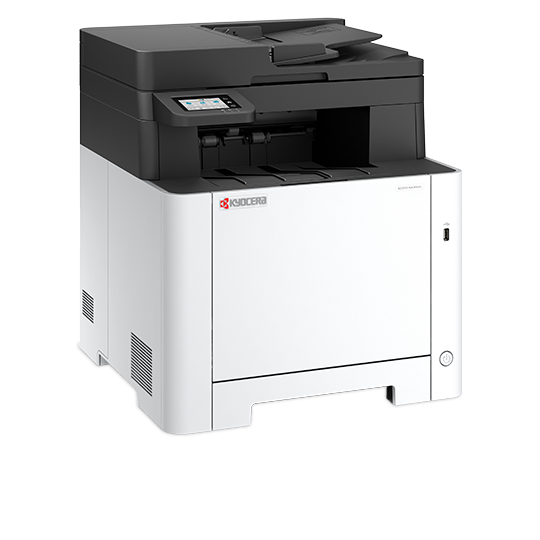

    ECOSYS MA2101cwfx

    The ECOSYS MA2101cwfx is a versatile colour network MFP designed for small workgroups and individual users that seek maximum productivity, reliability and affordability.

    • Enterprise level information security to protect against threats
    • Integration of personal cloud storage services
    • Print speed up to 21 ppm b&w and 21 ppm color
    • Optional additional paper feeder for a total of 550 sheets
    • 2.7 inch touch screen for easy operation.
    • Standard wireless and Wi-Fi Direct
    Engine speed
    Engine speed

    Up to 21 pages A4 per minute in colour and b/w

    Resolution
    Resolution

    1,200 x 1,200 dpi print at reduced speed, multibit technology for print quality of up to 9,600 x 600 dpi (print), 600 x 600 dpi, 256 greyscales per colour (scan/copy)

    Weight
    Weight

    Approx. 26 kg including toner container

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    410 x 416 x 457 mm

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man leaning back in his chair

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks

      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman smiling in meeting

      A4 printer for all needs

      KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A4 printer for all needs

      A4 printer for all needs

      High quality, high reliability and high efficiency are essential.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS MA2101cwfx drivers
    • ECOSYS MA2101cwfx documentation
    • ECOSYS MA2101cwfx software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    540x540-MFP_MA2101cwfx_comb01_left_01
    General type
    Colour multifunctional for A4 format
    Engine speed
    Up to 21 pages A4 per minute in colour and b/w
    Warm-up time
    Approx. 32 seconds or less
    Power consumption
    Copy / Print: 345 W, Ready mode: 33 W, Sleep-mode: 0.3 W
    Warranty
    1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 100,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
    Input capacity
    50-sheet multi-purpose tray; 60–220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette, 60–163 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148 –216 x 356 mm).
    Max. input capacity with options
    550 sheets
    Duplex unit
    Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal
    Max. output capacity
    150 sheets face-down with paper full detection
    Document processor
    50-sheet, 60-90 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
    Processor
    ARM Cortex-A53 single core 1.0GHz
    Fonts
    93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
    Max. original size
    A4/legal
    Continuous copy
    1 - 999
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    7 Reductions/5 Enlargements
    Image adjustments
    Text + Photo, Photo, Text, Map, Printed document
    Digital copy features
    Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control
    Scan functionalities
    Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
    Scan speed
    27 ipm (300 dpi, A4, b/w), 22 ipm (300 dpi, A4, colour)
    Scan features
    Integrated address book, Active directory support, encrypted data transfer, Blank sheet skip
    Scan resolution
    600, 400, 300, 200 dpi (256 grey scales per colour)
    Max. scan size
    A4 / legal
    File type
    TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS
    Original recognition
    Text + Photo, Photo, Text, Light Text, Text (for OCR)
    Compatibility
    ITU-T Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed
    2 seconds /sheet or less
    Transmission speed
    3 seconds or less
    Scanning density
    Normal: 200 x 100 dpi,Fine: 200 x 200 dpi,Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi
    Max. original size
    A4 / legal
    Fax features
    Network fax, duplex transmission and reception,polling transmission and reception

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Consumables
    • Options

    TK-5480C
    Average continuous cyan toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5480K
    Average continuous black toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5480M
    Average continuous magenta toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5480Y
    Average continuous yellow toner yield 1,250 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490C
    Average continuous cyan toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490K
    Average continuous black toner yield 2,800 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490M
    Average continuous magenta toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,500 pages in accordance with ISO/IEC 19798.

    TK-5490Y
    Average continuous yellow toner yield 2,400 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,500 pages in accordance with ISO/IEC 19798.

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    UG-51/UPGRADE KIT
    Trusted Platform Module (TPM)

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

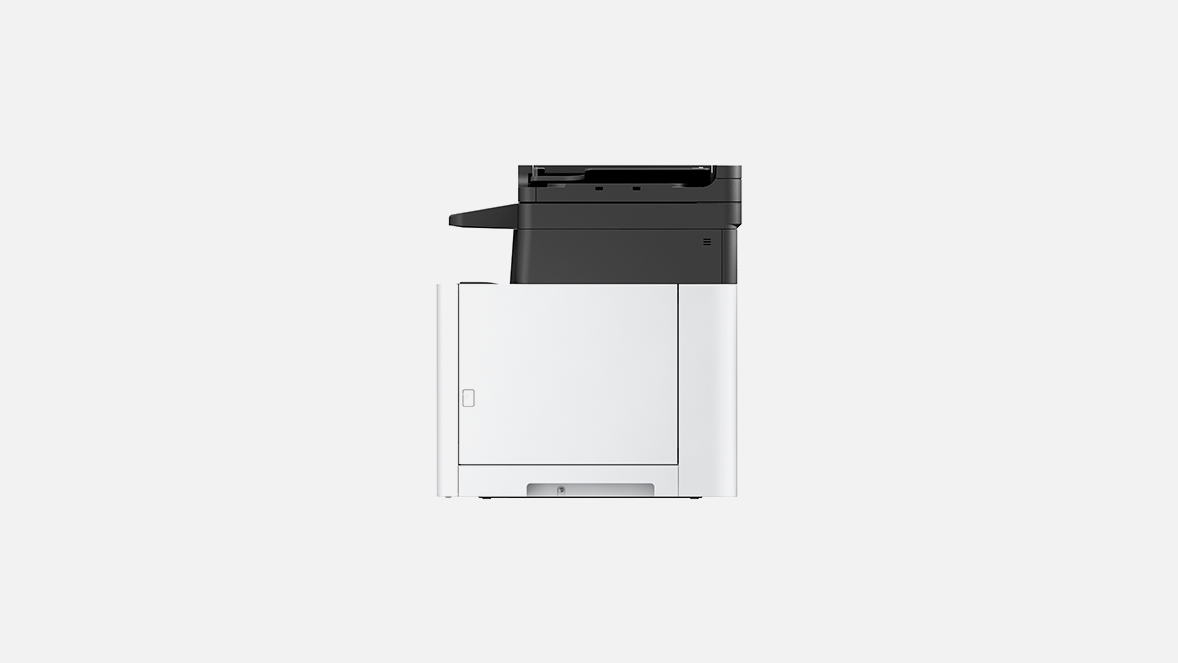

    • 1178x663-MFP_MA2101cwfx-Series_no-perspective_side_01

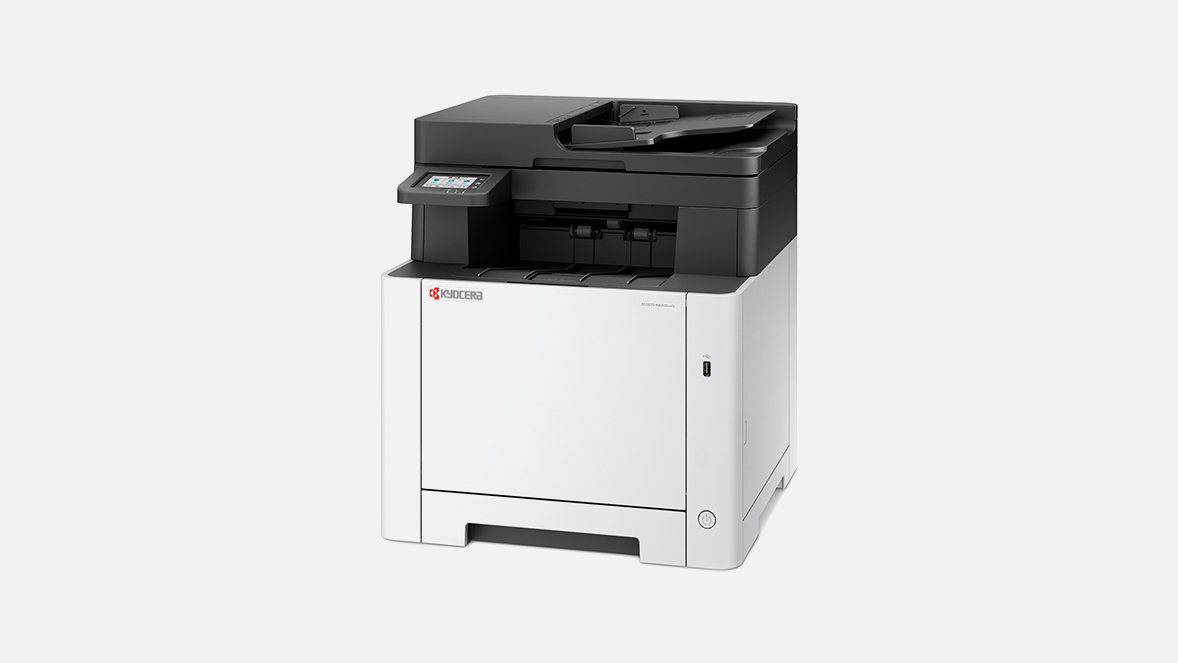

    • 1178x663-MFP_MA2101cwfx_comb01_right_01

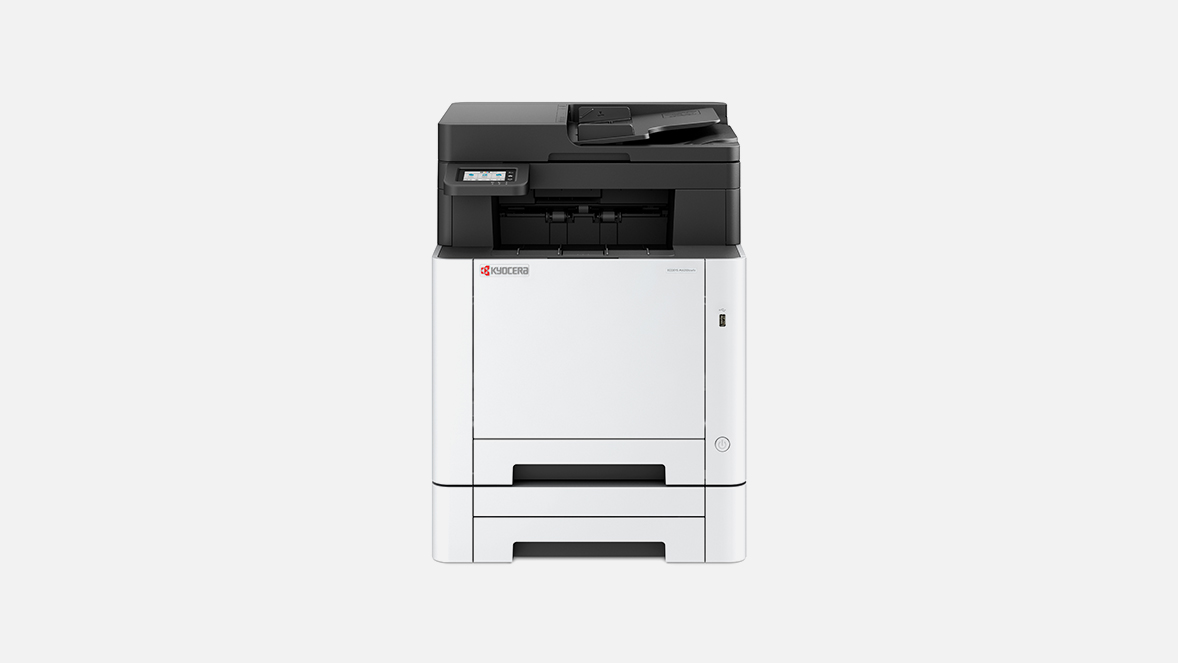

    • 1178x663-MFP_MA2101cwfx_comb02_front_01
