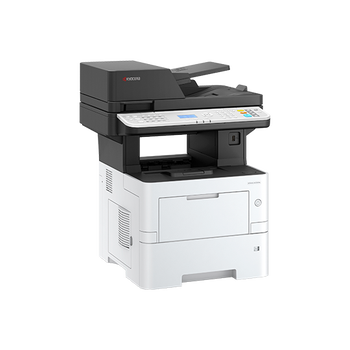

    MFP_MA4500fx_left_comb01_01-updated

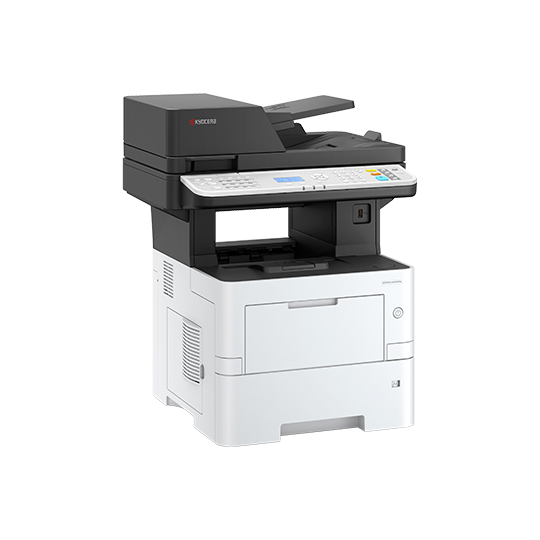

    ECOSYS MA4500fx

    The ECOSYS MA4500fx is a powerful multifunctional device embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of workgroups. In addition, it delivers exceptionally low running costs.

    • Double-sided print, copy, scan and fax
    • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
    • Up to 6 ways of paper input for max. 2,600 sheet capacity
    • Strenghen affinity with Microsoft Universal Print
    • Optional SSD hard disk with Data Security Kit
    Engine speed
    Engine speed

    Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.

    Resolution
    Resolution

    1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    475 x 476 x 575 mm (Value without projections), 475 x 476 x 575 mm (Value with projections)

    Warranty
    Warranty

    1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • ECOSYS MA4500fx drivers
    • ECOSYS MA4500fx documentation
    • ECOSYS MA4500fx software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    MFP_MA4500fx_left_comb01_01-updated
    General type
    Monochrome multifunctional for A4 format
    Engine speed
    Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.
    Warm-up time
    Approx. 16 seconds or less
    Power consumption
    Printing: 594.1 W, Copying: 606 W, Ready mode: 55.9 W, Low power mode: 38.3 W, Sleep mode: 0.6 W
    Warranty
    1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity
    Multi-purpose tray: 100 sheets, 60 to 220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 915 mm. Standard universal paper cassette: 500 sheet, 60–120 g/m², A4, A5, B5, Letter, Legal, Folio, Custom (140 x 210 to 216 x 356 mm).
    Max. input capacity with options
    2,600 sheets
    Duplex unit
    Standard duplex unit, 60 to 120 g/m², A4, A5, B5, Letter, Legal, Custom (140x 210 mm - 216 x 356 mm).
    Max. output capacity
    250-sheet-face-down with paper full sensor
    Document processor
    Reverse Auto Document Processor as standard, 75 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm).
    Processor
    ARM Cortex-A53 Dual core 1.4GHz
    Fonts
    93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
    Features
    PDF Direct Print, Internet printing IPP 1.0, E-mail printing, WSD print, secure printing IPP over TLS, Local and network authentication, Network data encryption IPsec, HTTPS, LDAP over TLS, SNMPv3, SMTP over TLS, POP over TLS, Encrypted PDF Direct Print, TLS 1.3, Secure Boot, Run-time Integrity Check, Microsoft Universal Print, Printing for Chrome OS
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request
    Max. original size
    A4 / Legal
    Continuous copy
    1 - 999
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    7 Reductions/5 Enlargements
    Image adjustments
    Text + Photo, Photo, Text, Chart/Map, Printed document
    Digital copy features
    Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page, Skip Line
    Scan functionalities
    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN , WIA , WSD scan, Chrome OS (Scan), AirPrint, Mopria
    Scan speed
    Simplex: 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4, colour). Duplex: 26 ipm (300 dpi, A4, b/w), 17 ipm (300 dpi, A4, colour).
    Scan features
    Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Scan resolution
    600, 400, 300, 200 dpi, 256 greyscales per colour
    Max. scan size
    A4 / Legal
    File type
    TIFF, JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
    Original recognition
    Text, photo, text + photo, light text, optimised for OCR
    Compatibility
    Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed
    2.0 seconds/sheet or less
    Transmission speed
    Max. 3 seconds (JBIG)
    Scanning density
    Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi), Halftone: 256 grey scales
    Max. original size
    A4 / Legal
    Fax features
    Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

    Get More Information About Your Warranty Conditions.

    More details about Your Standard Warranty conditions coverage and details can be found here.
    Go to the Warranty page Go to the Warranty page

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Consumables
    • Options

    TK-3400
    Microfine toner black for 12,500 pages A4. Capacity of starter toner is 6,000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752.

    CA-3100
    Caster stand

    CB-360W-B
    Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (W x D x H)

    CB-365W-B
    Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)

    Card Authentication Kit (B)
    Support for various authentication keys available

    HD-17
    64 GB for easy document management

    HD-18
    256 GB SSD hard disc for easy document management

    HD-19
    512 GB SSD hard disc for easy document management

    IB-37
    Wireless Network Interface (USB: 5GHz/2.4GHz)

    IB-38
    Wireless Network Interface (USB: 2.4GHz)

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    UG-50
    Trusted Platform Module (TPM)

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

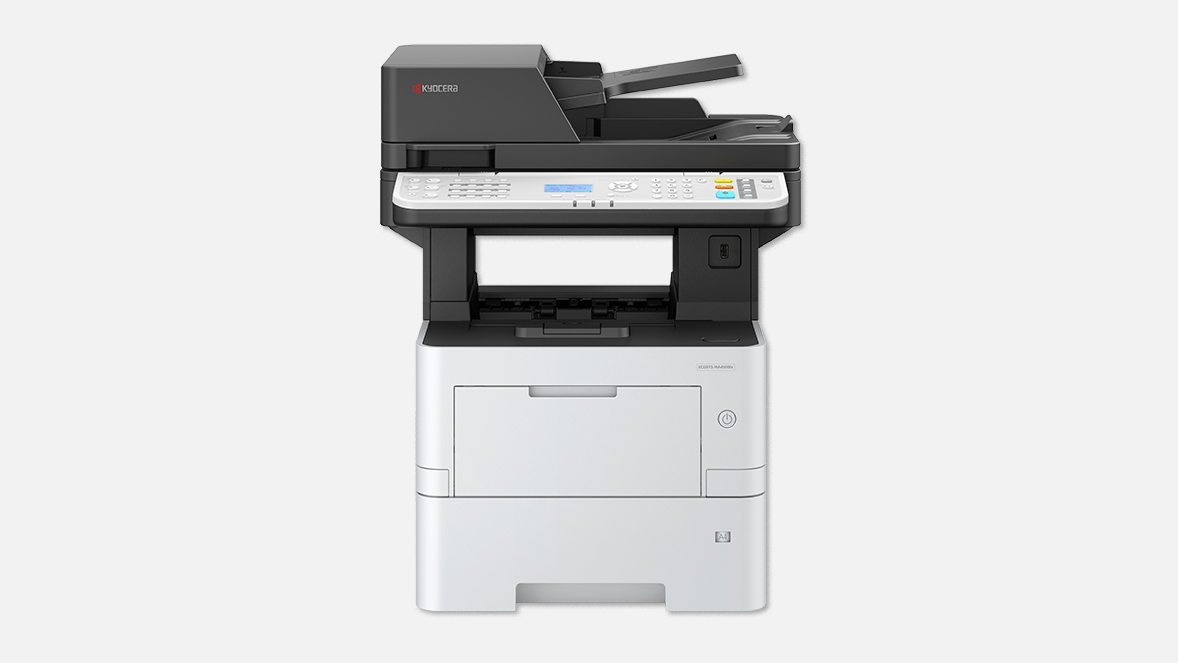

    • media-image-gallery-MFP_MFP_MA4500fx_front_comb01_01

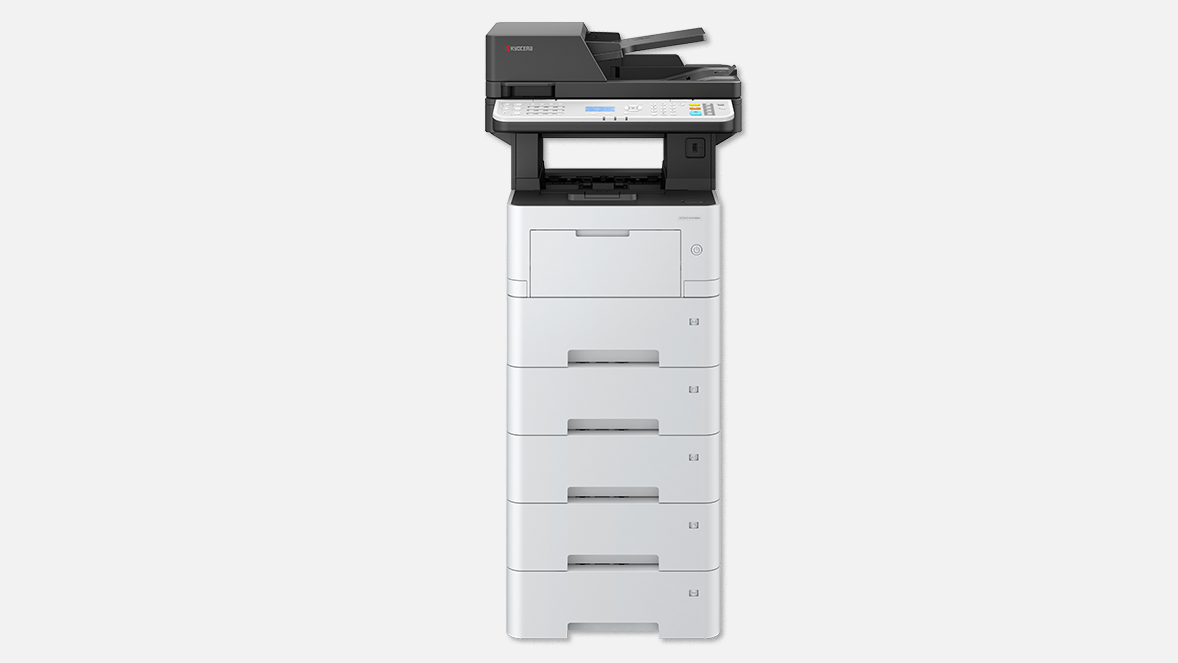

    • media-image-gallery-1178x663_MFP_MA4500fx_front_comb03_01

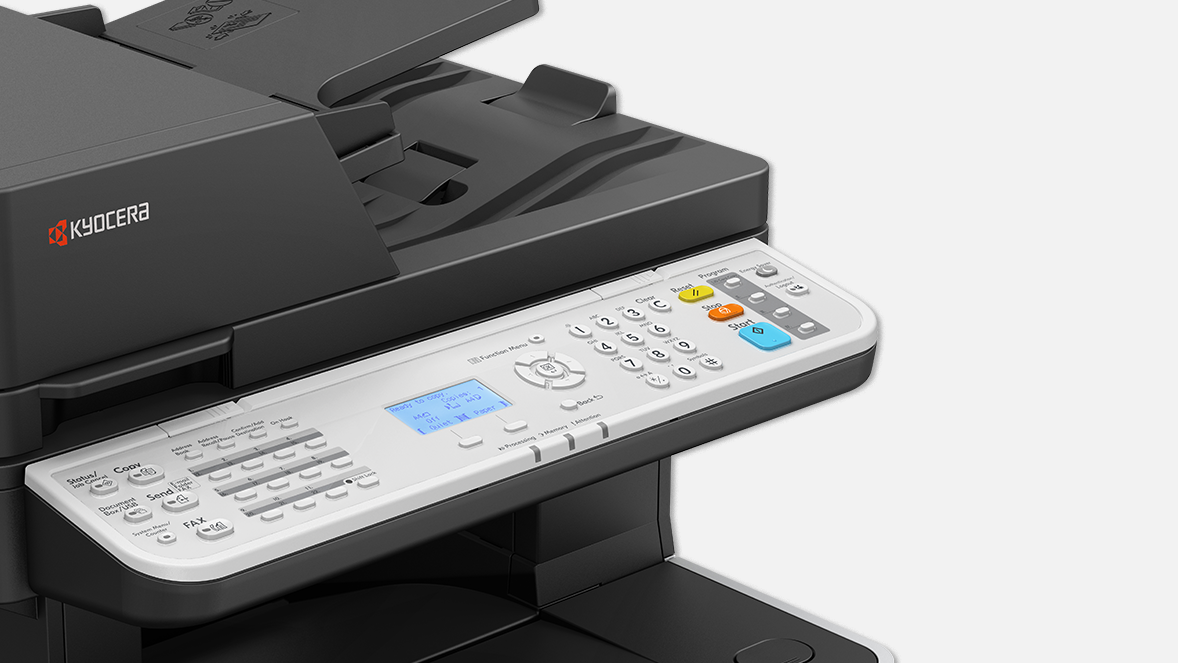

    • media-image-gallery-1178x663_MA4500fx-Series_panel_close-up_01
