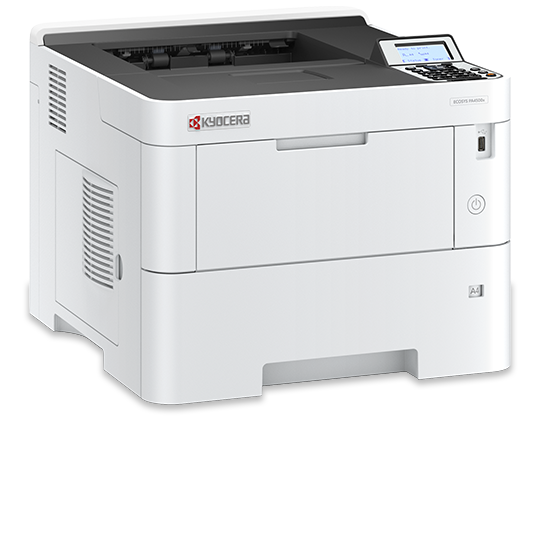

    square-540x540.ECOSYS-PA4500x

    ECOSYS PA4500x

    The ECOSYS PA4500x is a powerful printer embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of smaller workgroups. Thanks to long-life components and low energy consumption, leaves a smaller environmental footprint.

    • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
    • Up to 6 ways of paper input for max. 2,600 sheet capacity
    • Strenghen affinity with Microsoft Universal Print
    • Optional SSD hard disk with Data Security Kit
    • Environmentally friendly: long-life components, low energy consumption
    Engine speed

    Up to 45 pages A4 per minute. Duplex print speed: up to 22.5 page per minute, A4.

    Resolution

    1200 x 1200 dpi

    Dimensions (W x D x H)

    380 × 410 × 285 mm (Value without projections), 390 × 416 × 308 mm (Value with projections)

    Warranty

    1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man leaning back in his chair

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks
      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman smiling in meeting

      A4 printer for all needs

      KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A4 printer for all needs
      A4 printer for all needs

      High quality, high reliability and high efficiency are essential.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS PA4500x drivers
    • ECOSYS PA4500x documentation
    • ECOSYS PA4500x software

    Main Specifications

    General

    • General
    • Paper handling
    • Print

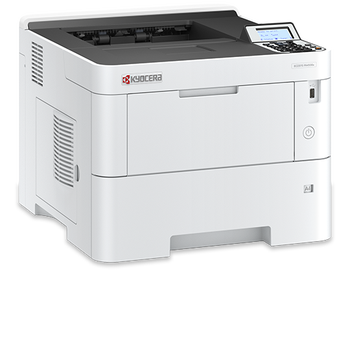

    square-540x540.ECOSYS-PA4500x
    General type
    Monochrome printer for A4 format
    Engine speed
    Up to 45 pages A4 per minute. Duplex print speed: up to 22.5 page per minute, A4.
    Warm-up time
    Approx. 16 seconds or less from power on
    Power consumption
    Print - mode: 605.5 W, Sleep mode: 0.5 W, Ready - mode: 8.4 W
    Warranty
    1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.
    Input capacity
    100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: : 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)
    Max. input capacity with options
    2,600 sheets
    Duplex unit
    Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2
    Max. output capacity
    250-sheet-face-down with paper full sensor
    Processor
    ARM Cortex-A53 Dual core 1.4GHz
    Fonts
    93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
    Features
    PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Encrypted PDF Direct Print
    Applicable OS
    All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request

    Options and Consumables

    Paper handling Options

    • Paper handling Options
    • Consumables
    • Options

    TK-3400
    Microfine toner for 12,500 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752.

    CA-3100
    Caster stand

    CB-360W-B
    Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (W x D x H)

    CB-365W-B
    Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)

    HD-17
    64 GB for easy document management

    HD-18
    256 GB SSD hard disc for easy document management

    HD-19
    512 GB SSD hard disc for easy document management

    IB-32B
    Parallel IEEE1284 interface kit

    IB-37
    Wireless Network Interface (USB: 5GHz/2.4GHz)

    IB-38
    Wireless Network Interface (USB: 2.4GHz)

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOCERA Life 3 years
    Warranty extension 3 years on-site

    KYOCERA Life 4 years
    Warranty extension 4 years on-site

    KYOCERA Life 5 years
    Warranty extension 5 years on-site

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MM-20
    1,024 MB RAM Expansion

    MM-21
    2,048 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    UG-50
    Trusted Platform Module (TPM)

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

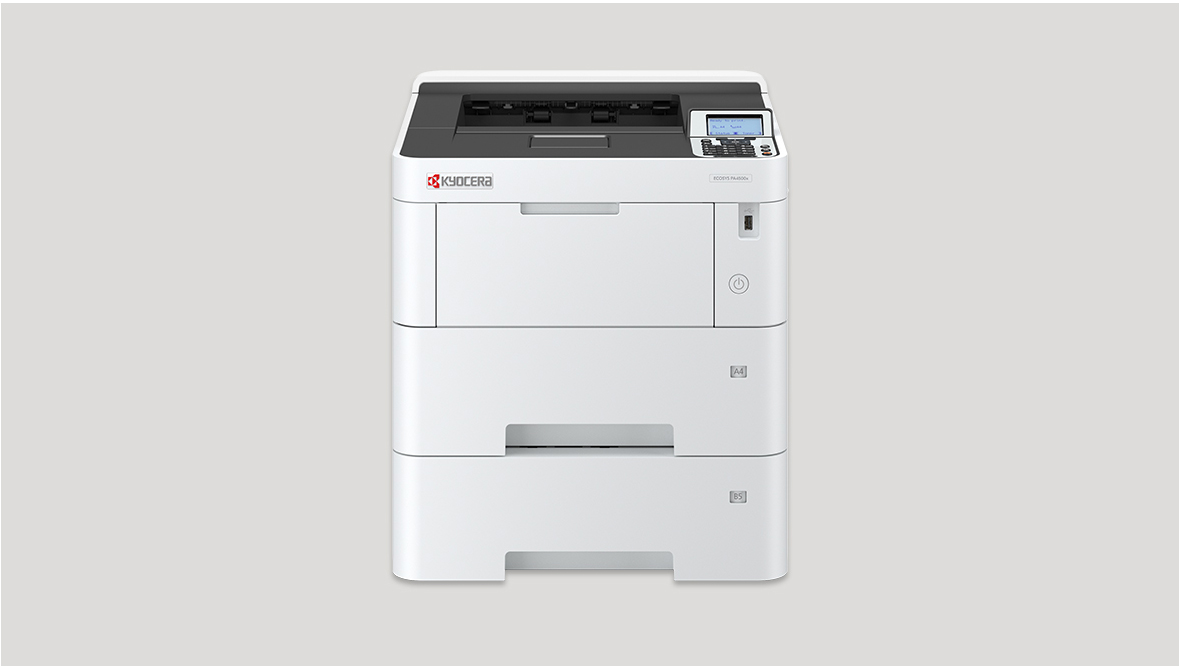

    • media-image-gallery-1180x668_MFP_PA4500x_front_comb02_01

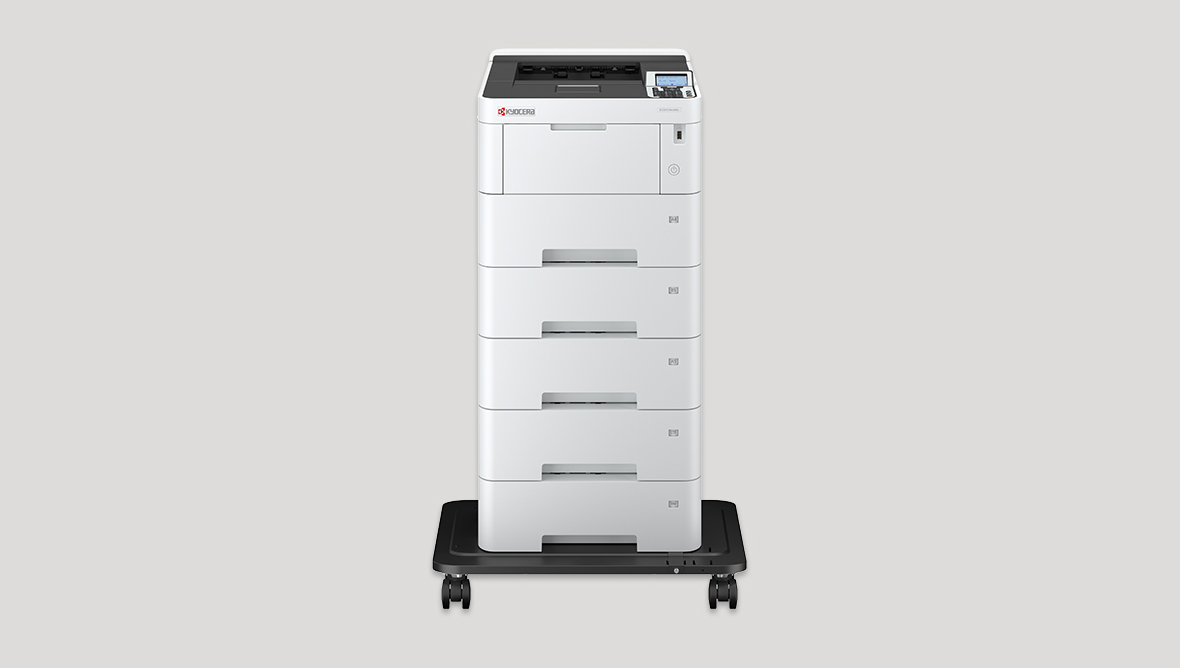

    • media-image-gallery-1180x668_MFP_PA4500x_front_comb03_01

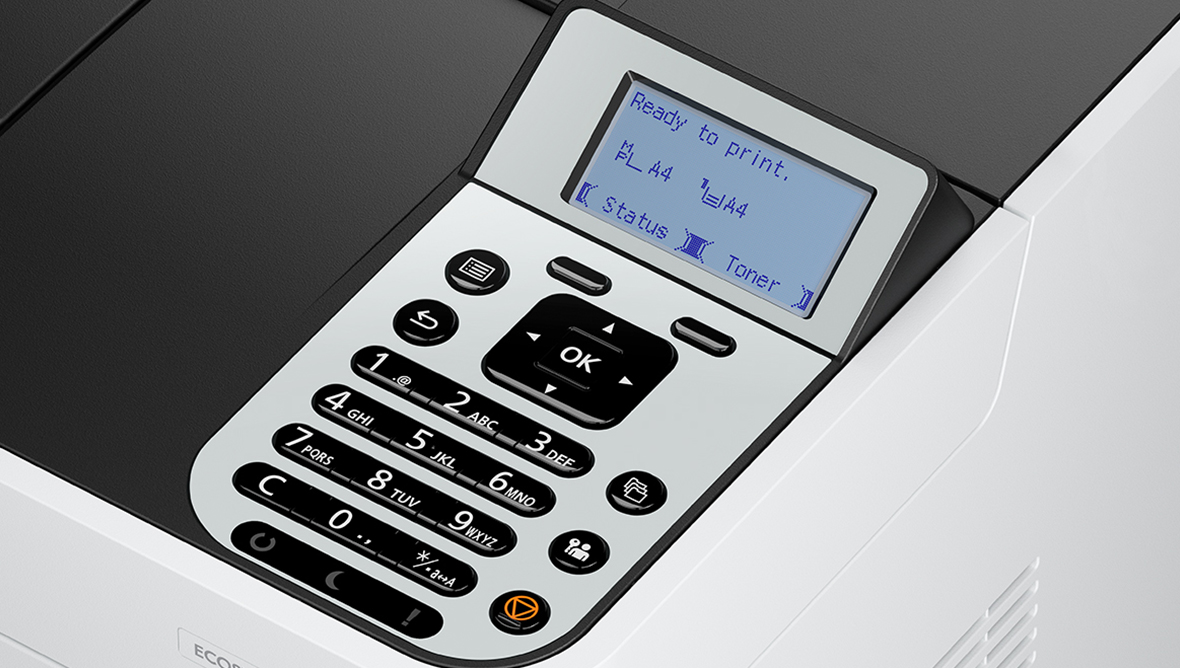

    • media-image-gallery-1180x668_MFP_PA4500x-Series_panel_close-up_01

    Related products

    Kyocera solutions to resolve all business needs.

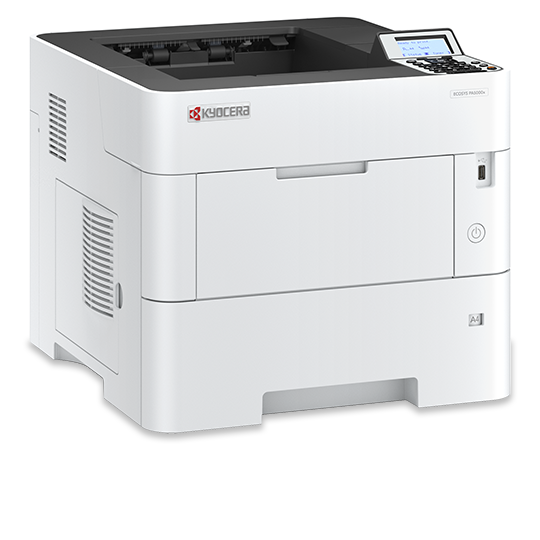

    • ECOSYS PA5000x

      ECOSYS PA5000x

      Top performance device combined with the data protection solutions.

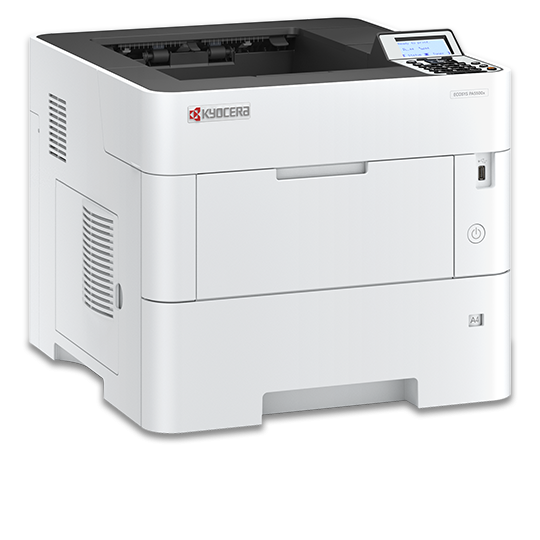

    • ECOSYS PA5500x

      ECOSYS PA5500x

      Exceptional efficiency makes this printer the ideal choice to increase overall performance of workgroups.

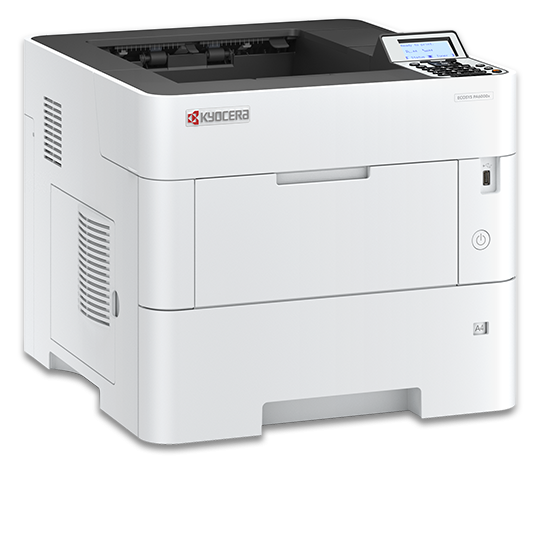

    • ECOSYS PA6000x
