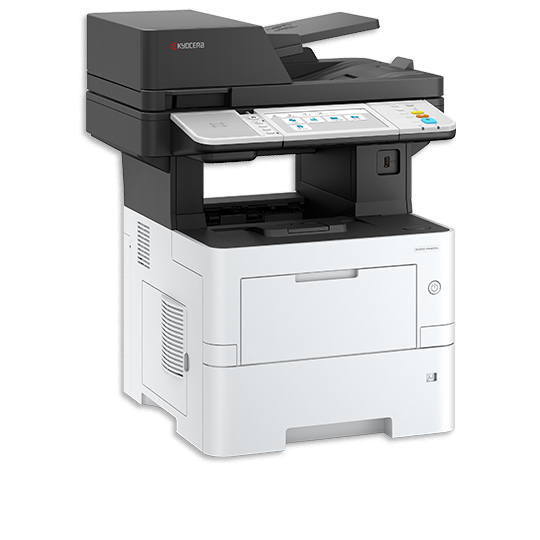

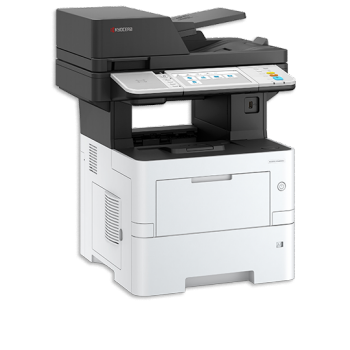

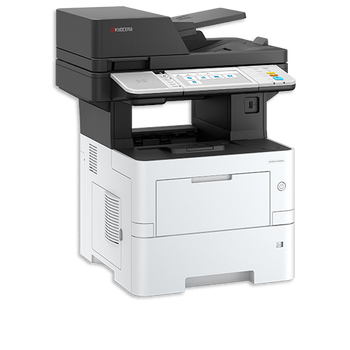

      square-540x540.ECOSYS-MA4500ix

      ECOSYS MA4500ix

      The ECOSYS MA4500ix is both compact and powerful A4, its reliability a guarantee of outstanding quality from the first print to the last. Equipped with high-end security capabilities and low energy consumption functions, this MFP is the perfect fit for small to medium workspaces.
      • Double-sided print, copy and scan
      • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
      • HyPAS™ solution platform enables powerful customisations
      • Strenghen affinity with Microsoft Universal Print
      • Optional SSD hard disk with Data Security Kit

      ECOSYS makes your office more sustainable and efficient

      Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
      • ECOSYS MA4500ix Drivers
      • ECOSYS MA4500ix Documentation
      • ECOSYS MA4500ix Software

      Main Specifications

      General
      • General
      • Paper handling
      • Print
      • Copy
      • Scan
      square-540x540.ECOSYS-MA4500ix
      General type
      Monochrome multifunctional for A4 format
      Engine speed
      Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.
      Warm-up time
      Approx. 23 seconds or less
      Power consumption

      Printing: 599.4 W, Copying: 591.9 W, Ready mode: 57.2 W, Low power mode: 35 W, Sleep mode: 0.5 W

      Warranty
      1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
      Input capacity

      Multi-purpose tray: 100 sheets, 60 to 220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 915 mm. Standard universal paper cassette: 500 sheet, 60–120 g/m², A4, A5, B5, Letter, Legal, Folio, Custom (140 x 210 to 216 x 356 mm).

      Max. input capacity with options

      2,600 sheets

      Duplex unit

      Standard duplex unit, 60 to 120 g/m², A4, A5, B5, Letter, Legal, Custom (140x 210 mm - 216 x 356 mm).

      Max. output capacity

      250-sheet-face-down with paper full sensor

      Document processor

      Reverse Auto Document Processor as standard, 75 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm).

      Processor
      ARM Cortex-A53 Dual core 1.4GHz
      Fonts

      93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

      Features

      PDF Direct Print, Internet printing IPP 1.0, E-mail printing, WSD print, secure printing IPP over TLS, Local and network authentication, Network data encryption IPsec, HTTPS, LDAP over TLS, SNMPv3, SMTP over TLS, POP over TLS, Encrypted PDF Direct Print, TLS 1.3, Secure Boot, Run-time Integrity Check, Microsoft Universal Print, Printing for Chrome OS

      Applicable OS

      All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request

      Max. original size
      A4 / Legal
      Continuous copy
      1 - 999
      Zoom range

      25 - 400 % in 1% steps

      Preset magnification ratios

      7 Reductions/5 Enlargements

      Image adjustments

      Text + Photo, Photo, Text, Chart/Map, Printed document

      Digital copy features

      Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page, Skip Line, DP Auto-cropping

      Scan functionalities

      Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN , WIA , WSD scan, Chrome OS (Scan), AirPrint, Mopria

      Scan speed

      Simplex: 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4, colour). Duplex: 26 ipm (300 dpi, A4, b/w), 17 ipm (300 dpi, A4, colour).

      Scan features

      Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

      Scan resolution

      600, 400, 300, 200 dpi, 256 greyscales per colour

      Max. scan size
      A4 / Legal
      File type

      TIFF, JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)

      Original recognition

      Text, photo, text + photo, light text, optimised for OCR

      Get More Information About Your Warranty Conditions.

      More details about Your Standard Warranty conditions coverage and details can be found here.

      Options and Consumables

      Paper handling Options
      • Paper handling Options
      • Consumables
      • Options
      TK-3300

      Microfine toner black for 14,500 pages A4. Capacity of starter toner is 6,000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752.
      CA-3100

      Caster stand
      CB-360W-B

      Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (WxDxH)
      CB-365W-B

      Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)
      Card Authentication Kit (B)

      Enables the use of the ID card user authentication system
      HD-17

      64 GB SSD hard disc for easy document management
      HD-18

      256 GB SSD hard disc for easy document management
      HD-19

      512 GB SSD hard disc for easy document management
      IB-37

      Wireless LAN Interface (802.11 a/b/g/n/ac, 5 GHz band / 2.4 GHz band, WiFi direct)
      IB-38

      Wireless LAN Interface (802.11 b/g/n, 2.4 GHz band, WiFi direct)
      IB-50

      Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
      IB51

      Wi-Fi Card (802.11b/g/n)
      KYOmulticode SD 3

      Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
      PCL Barcode Flash 3.0 Type D/E

      Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).
      Scan extension Kit (A) AC

      Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HD or SD card is needed.
      UG-33

      ThinPrint Kit: enables printing under ThinPrint
      UG-50

      Trusted Platform Module (TPM)
      USB_IC_CARDREADER

      Simplifies authentication on the system

      Our environmental policy

      The environment matters to Kyocera. We want to make the world a better place for the next generation.

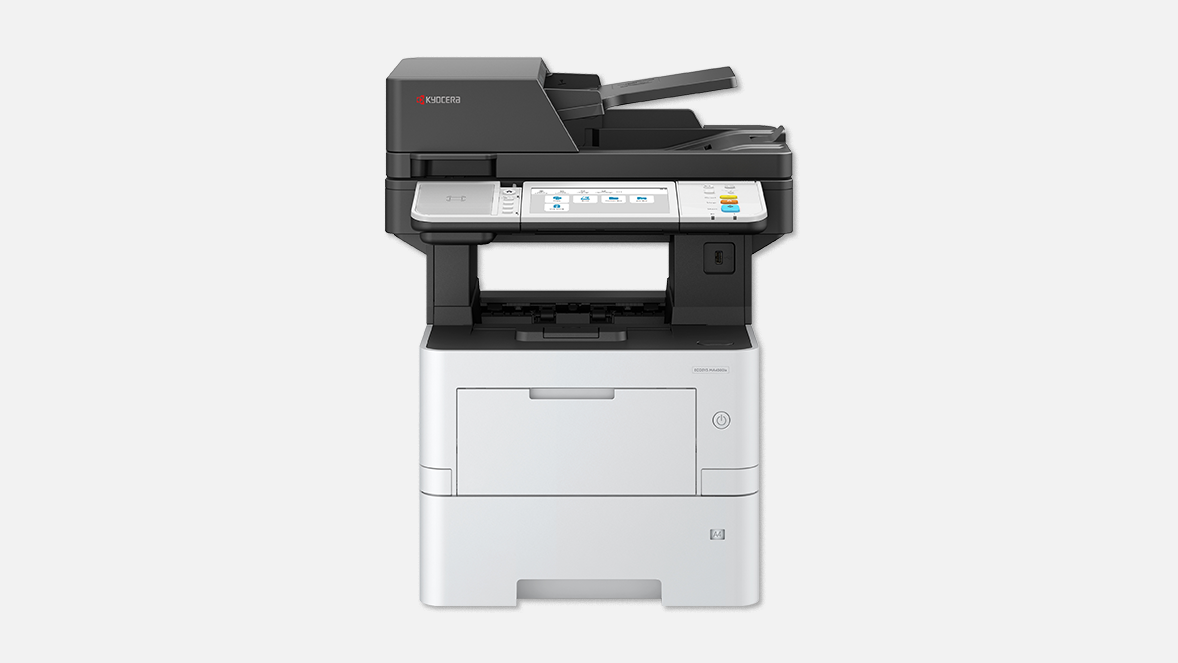

      • media-image-gallery-1178x663_MFP_MA4500ix_front_comb01_01

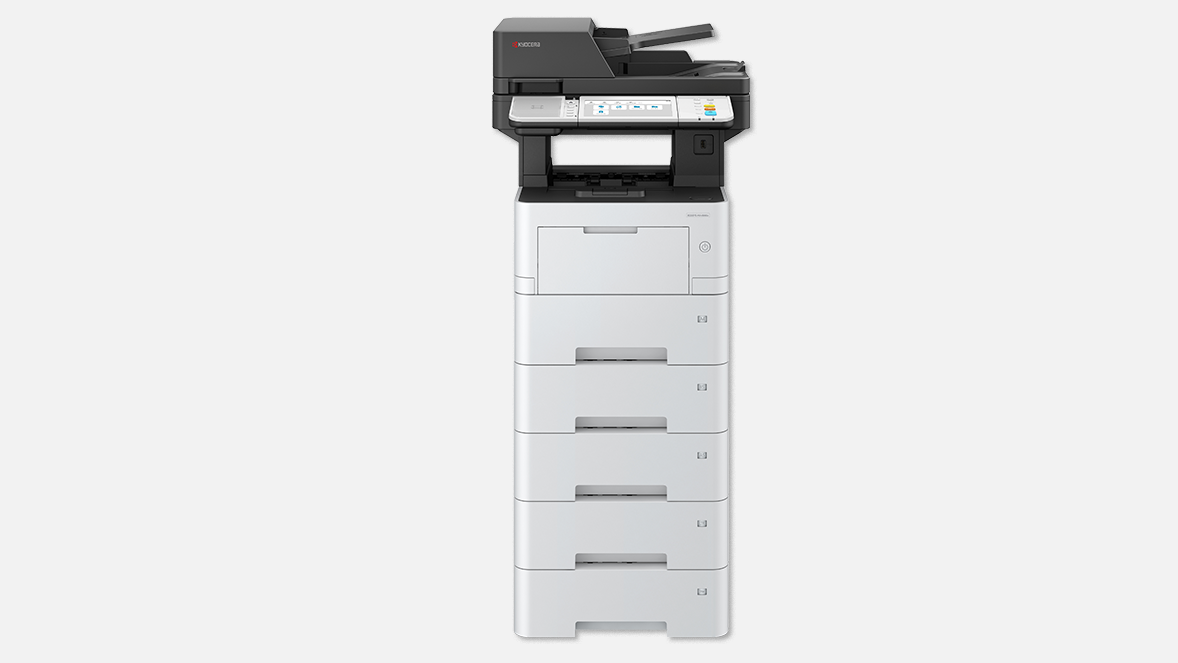

      • media-image-gallery-1178x663_MFP_MA4500ix_front_comb03_01

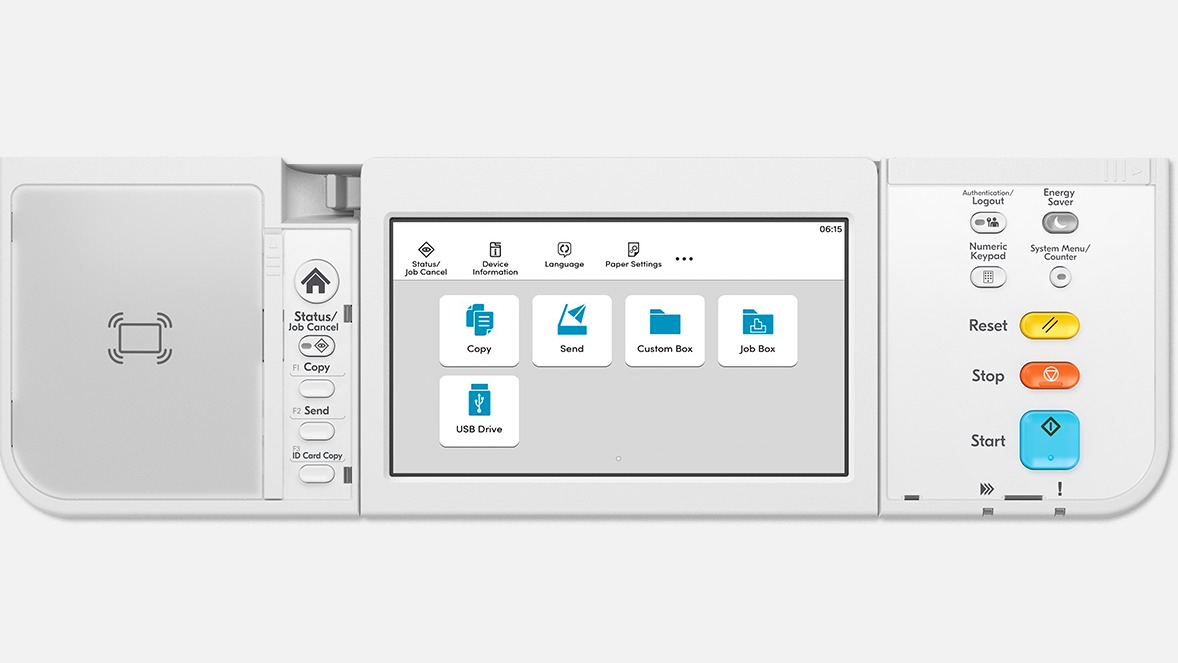

      • media-image-gallery-1178x663_MFP_MA4500ix_panel_eng_01
