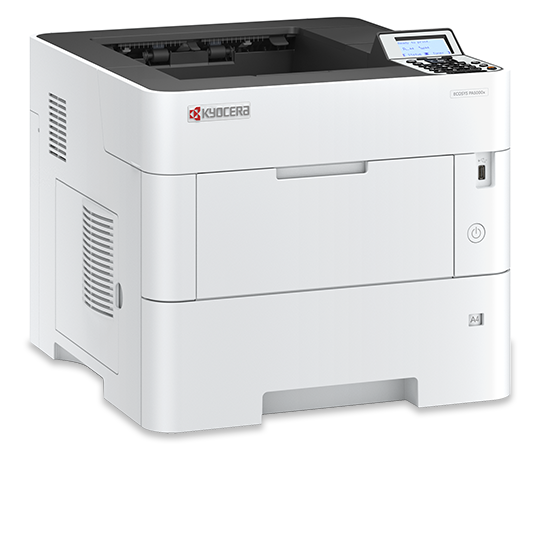

square-540x540.ECOSYS-PA5000x

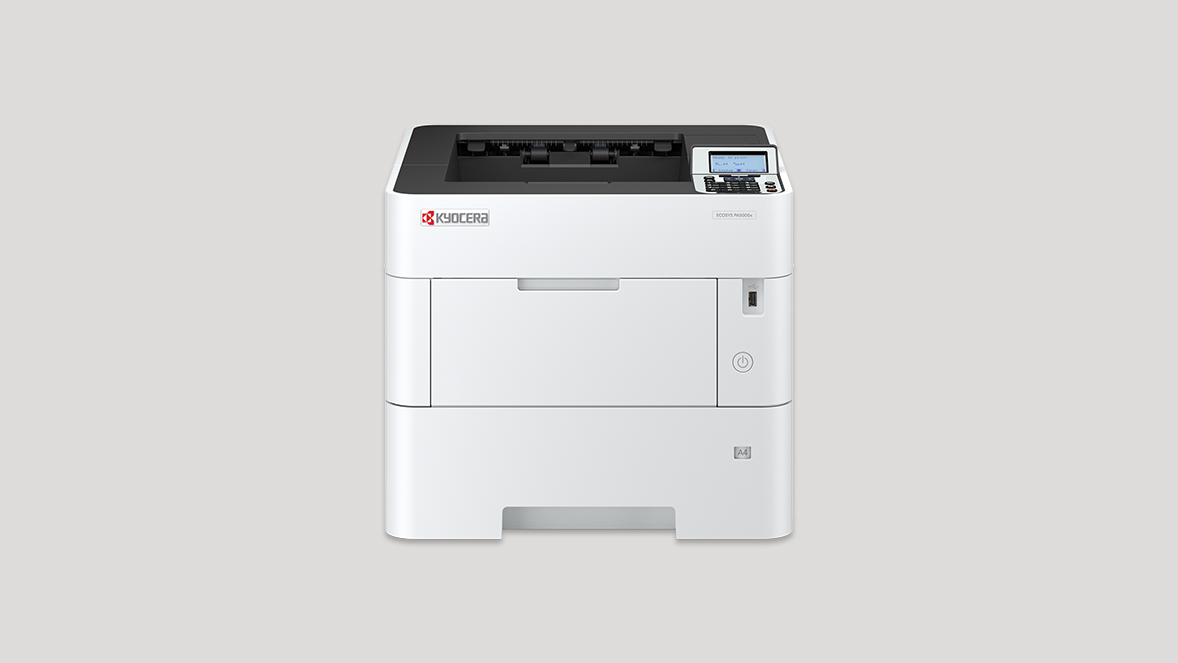

ECOSYS PA5000x

Top performance of ECOSYS PA5000x and embedded the data protection solutions meet the needs of every small and mid-sized workgroups. Up to 50 pages per minute in excellent 1,200 dpi resolution and fast time to first print of only 5.4 seconds boast productivity, while ECOSYS technology contributes to cost savings.

  • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3

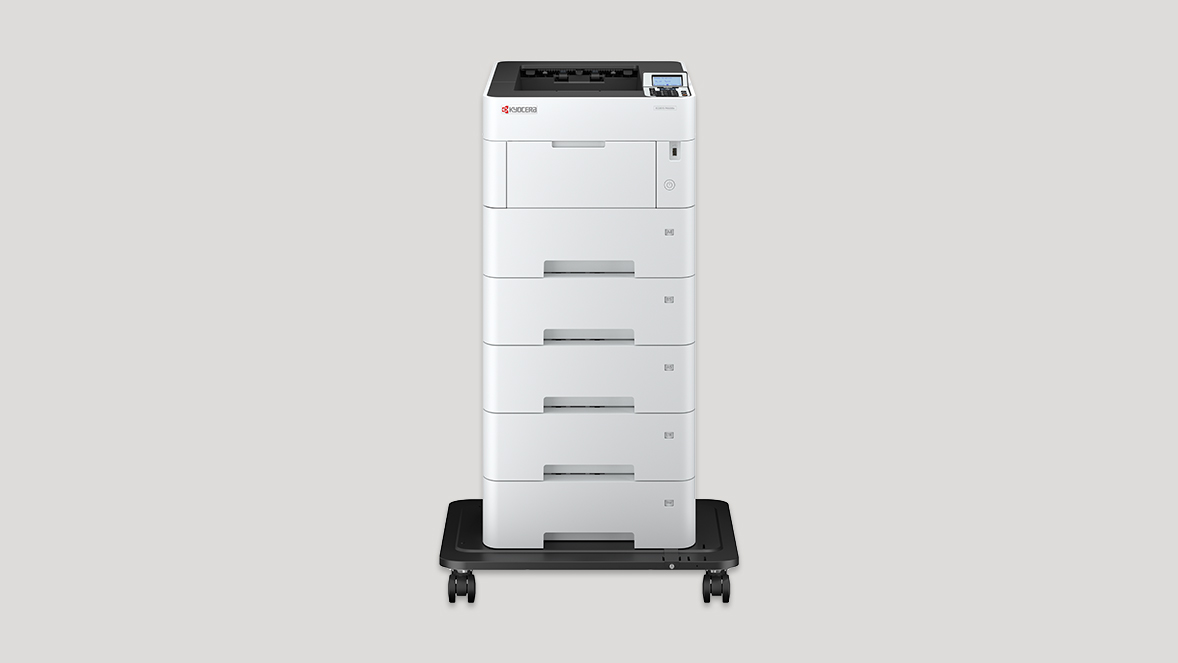

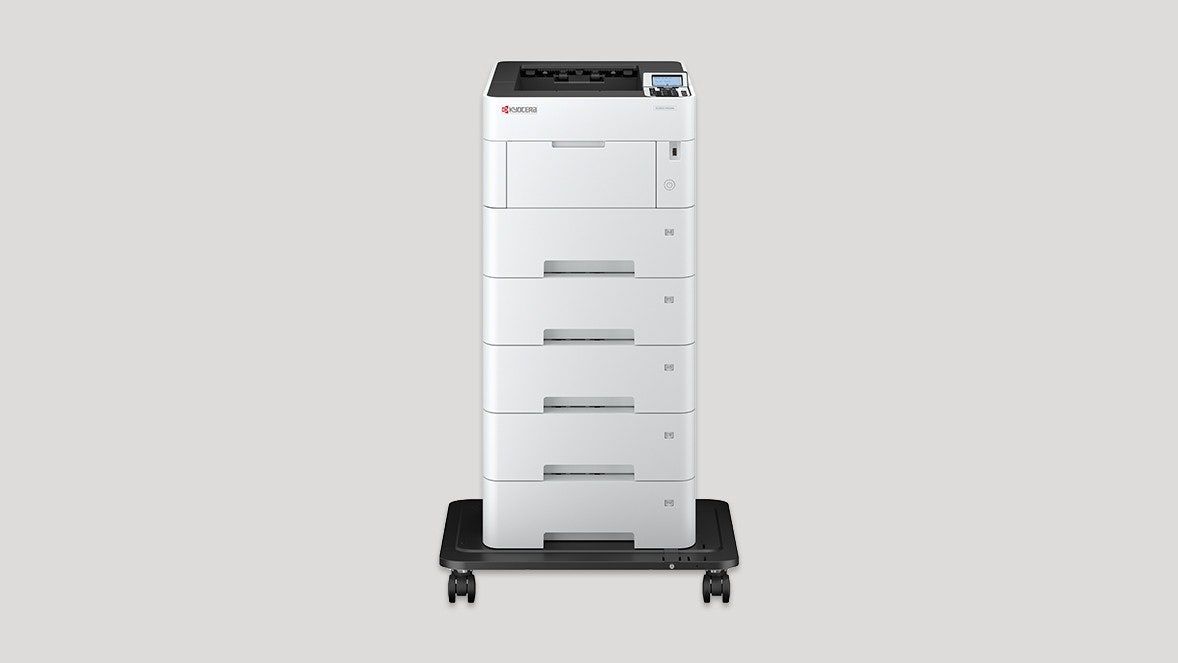

  • Up to 6 ways of paper input for max. 2,600 sheet capacity
  • Strenghen affinity with Microsoft Universal Print
  • Optional SSD hard disk with Data Security Kit
  • Environmentally friendly: long-life components, low energy consumption
Engine speed

Up to 50 pages A4 per minute. Duplex print speed: up to 35.5page per minute in A4.

Resolution

1200 x 1200 dpi

Dimensions (W x D x H)

380 × 410 × 320 mm (Value without projections), 390 × 416 × 343 mm (Value with projections)

Warranty

1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • man leaning back in his chair

    Multi-Functional Products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

    Multi-Functional Products for day-to-day tasks
    Multi-Functional Products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • woman smiling in meeting

    A4 printer for all needs

    KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

    A4 printer for all needs
    A4 printer for all needs

    High quality, high reliability and high efficiency are essential.

  • hands holding a plant in soil

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS PA5000x drivers
  • ECOSYS PA5000x documentation
  • ECOSYS PA5000x software

Main Specifications

General

  • General
  • Paper handling
  • Print

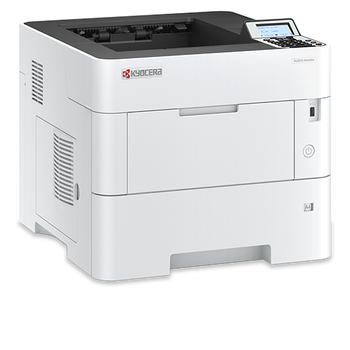

square-540x540.ECOSYS-PA5000x
General type
Monochrome printer for A4 format
Engine speed
Up to 50 pages A4 per minute. Duplex print speed: up to 35.5page per minute in A4.
Warm-up time
Approx. 20 seconds or less from power on
Power consumption
Print - mode: 652 W, Sleep mode: 0.5 W, Ready - mode: 9 W
Warranty
1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.
Input capacity
100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)
Max. input capacity with options
2,600 sheets
Duplex unit
Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2
Max. output capacity
500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320
Processor
ARM Cortex-A53 Dual core 1.4GHz
Fonts
93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Features
PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Encrypted PDF Direct Print
Applicable OS
All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request

Options and Consumables

Paper handling Options

  • Paper handling Options
  • Consumables
  • Options

TK-3410
Microfine toner for 15,500 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752.

CA-3100
Caster stand

CB-360W-B
Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (W x D x H)

CB-365W-B
Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)

Card Authentication Kit (B)
Support for various authentication keys available

HD-17
64 GB for easy document management

HD-18
256 GB SSD hard disc for easy document management

HD-19
512 GB SSD hard disc for easy document management

IB-32B
Parallel IEEE1284 interface kit

IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)

IB-38
Wireless Network Interface (USB: 2.4GHz)

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOCERA Life 3 years
Warranty extension 3 years on-site

KYOCERA Life 4 years
Warranty extension 4 years on-site

KYOCERA Life 5 years
Warranty extension 5 years on-site

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MM-20
1,024 MB RAM Expansion

MM-21
2,048 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

UG-50
Trusted Platform Module (TPM)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Our environmental policy

The environment matters to Kyocera. We want to make the world a better place for the next generation.

Related products

Kyocera solutions to resolve all business needs.

  • ECOSYS PA4500x

    Powerful printer embedded with high-level security features.

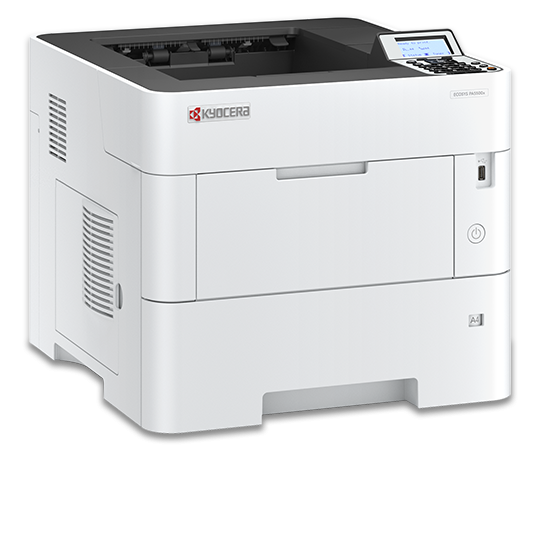

  • ECOSYS PA5500x

    Exceptional efficiency makes this printer the ideal choice to increase overall performance of workgroups.

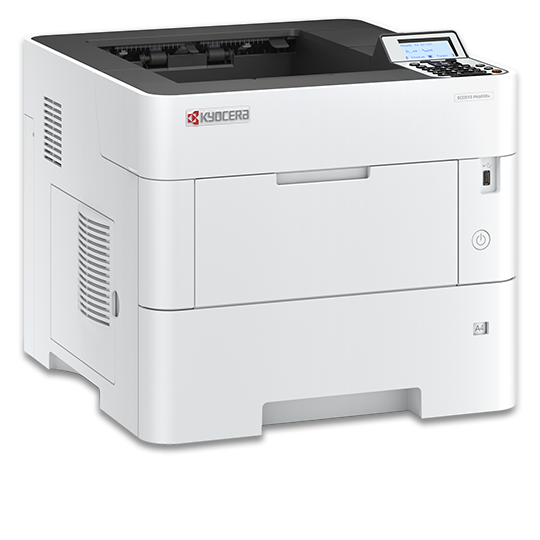

  • ECOSYS PA6000x
