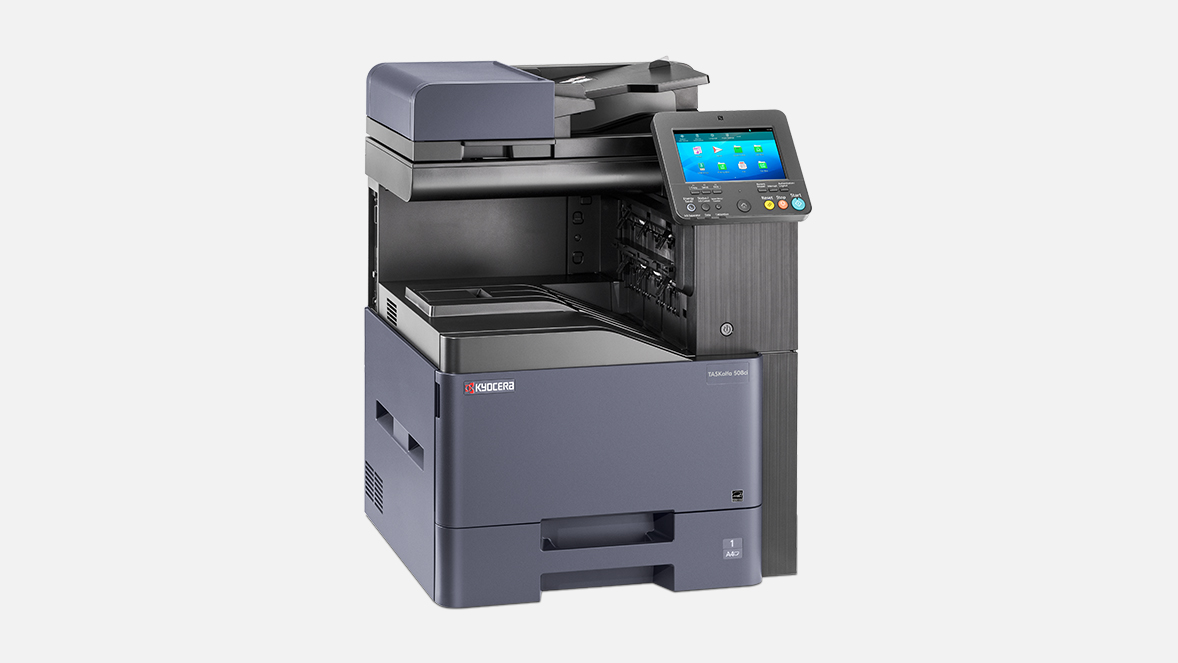

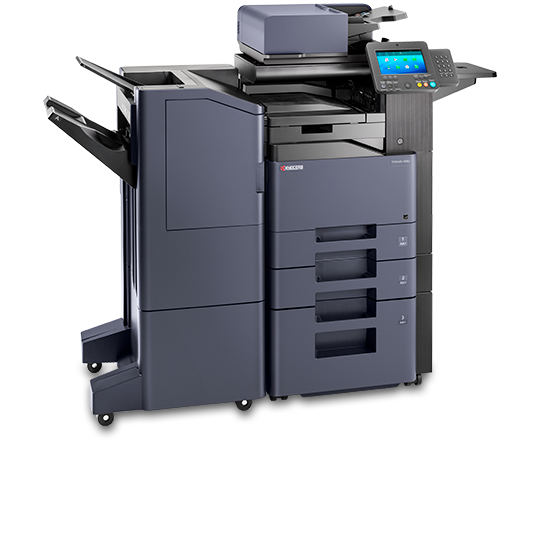

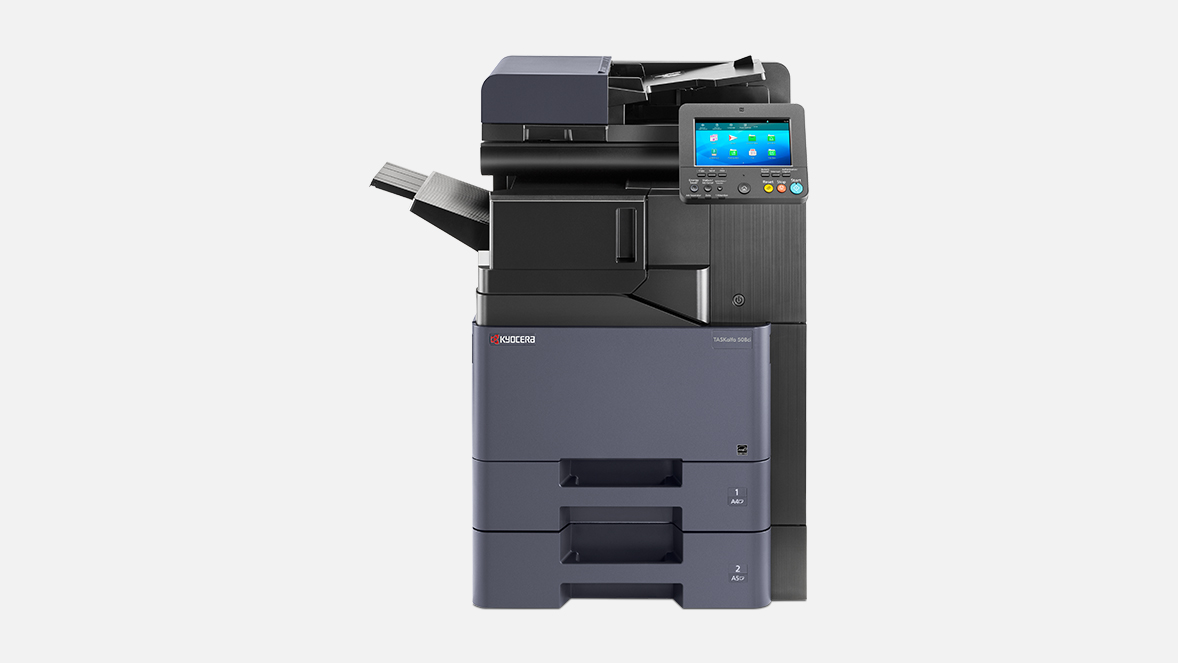

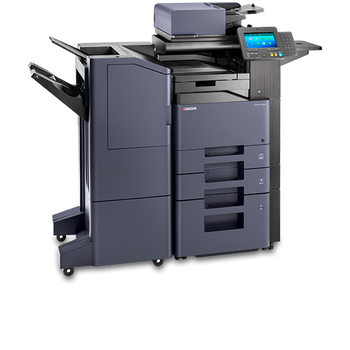

TASKalfa 508ci

The TASKalfa 508ci is a powerful A4 colour MFP for small to medium sized workgroups in medium to large corporate environment where durable operations and flexible finishing are required. A renewed 7" operation screen with intuitive operation such as scroll and slide, pinch in/pinch out like smartphones and tablets. Advanced security functionality like secure boot, Trusted Platform Module (TPM) and standard Data Security Kit.

Single pass document processor with double feed and staple detection.
Standard double-sided colour print, copy, scan and optional fax functionality.
High-level build in security features including data encryption, Trusted Platform Module and Secure Boot.

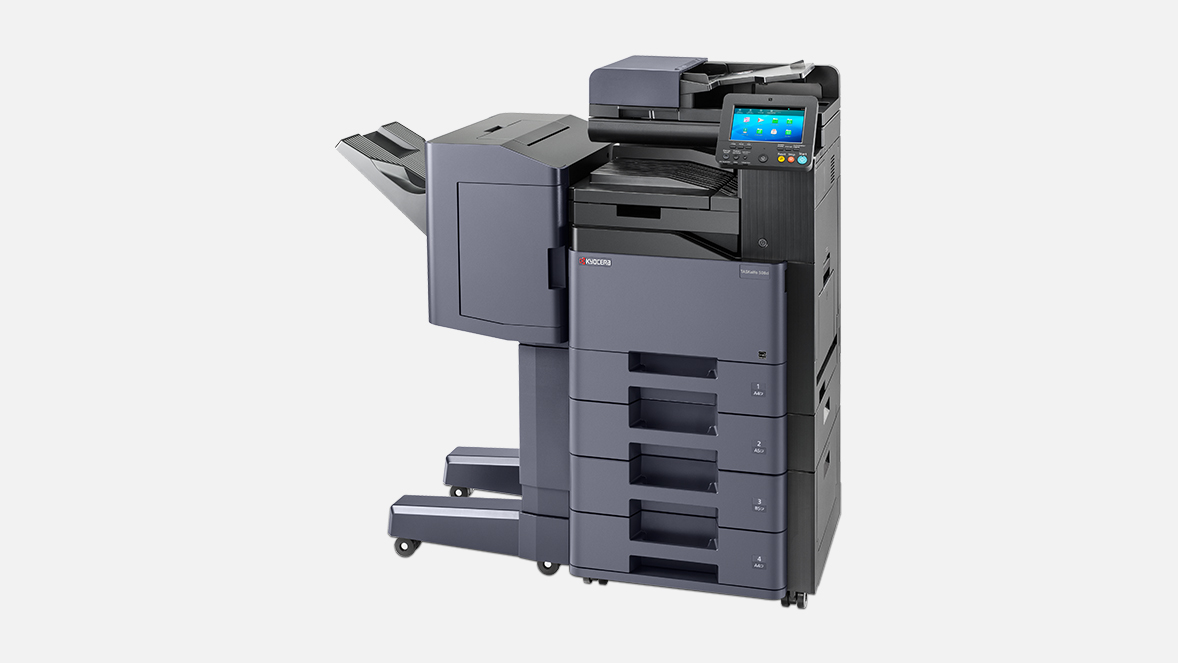

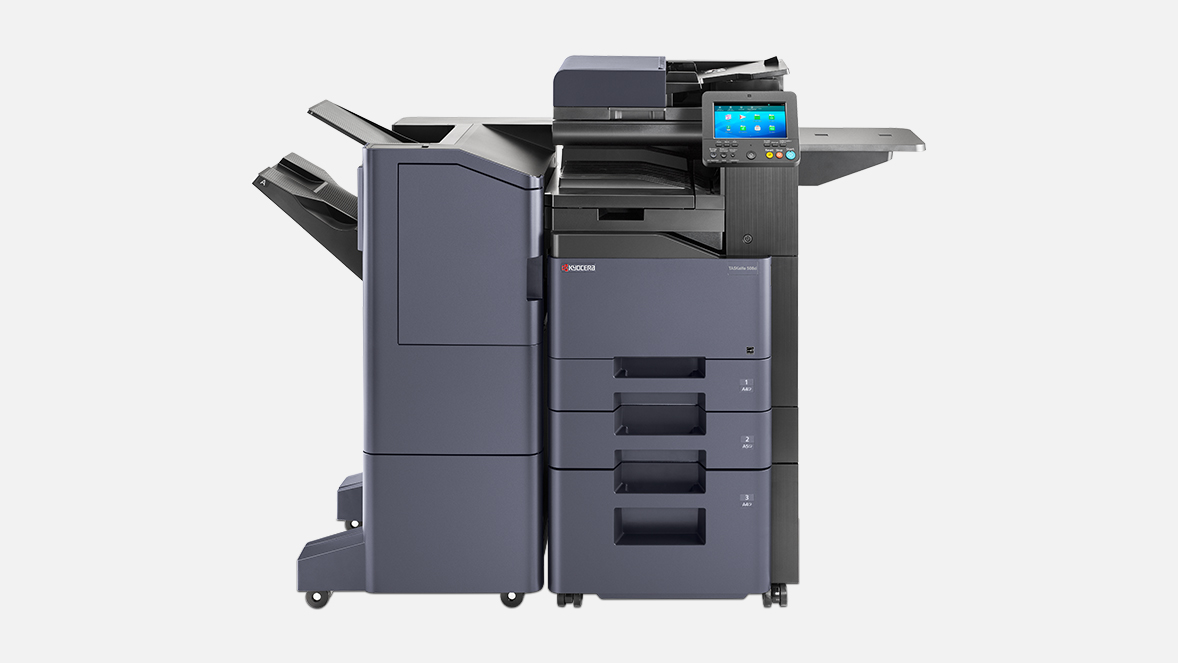

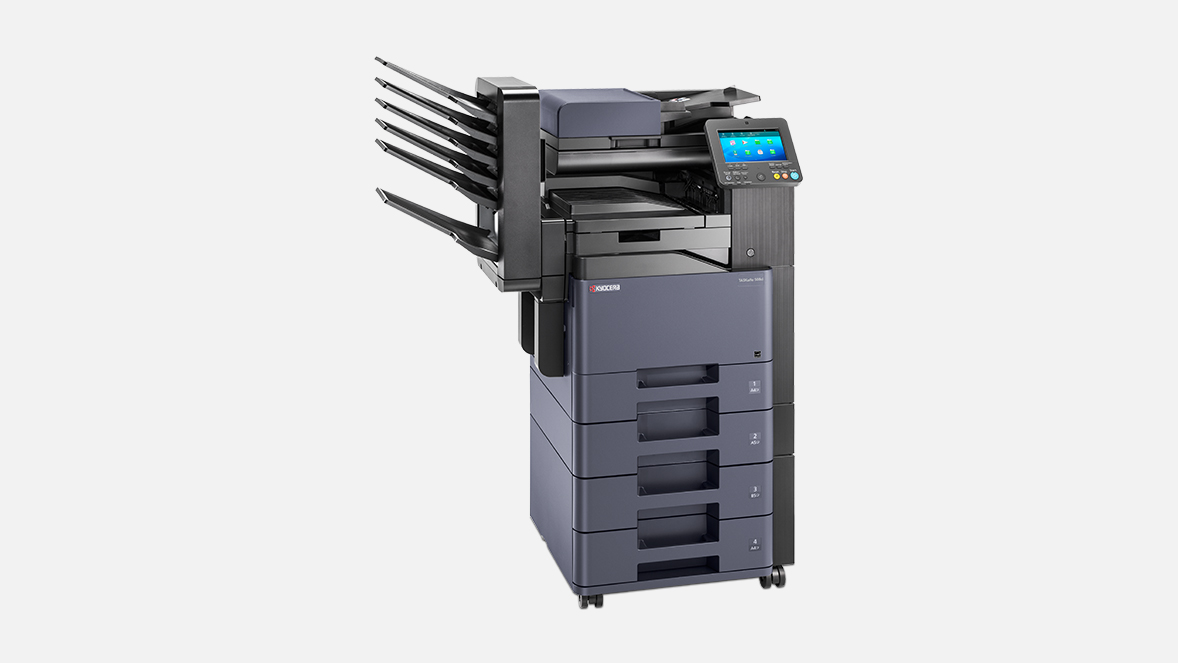

Flexible Finishing options including staple and hole-punch.

Engine speed

Up to 50 pages A4 per minute in colour and black and white, simplex, duplex

Resolution

1,200 × 1,200 dpi print at reduced speed, multibit technology for print quality of up to 9,600 × 600 dpi (print), 600 × 600 dpi (scan/copy)

Scan speed

DP-5100 up to 60 ipm; DP-5120 up to 120 ipm; DP-5130 up to 170 ipm

Time to first print

Approx. 5.4 / 6.4 seconds or less in b/w / colour

Enhanced security options to help keep your office safe

The new TASKalfa series proudly combines a versatile user interface with improved security options to ensure high levels of security in the workspace while improving productivity levels.

Saving your time for the tasks that matter most

Usability not only ensures the optimisation of company resources; it also provides customers with the top-quality service they now expect.
A user-friendly experience

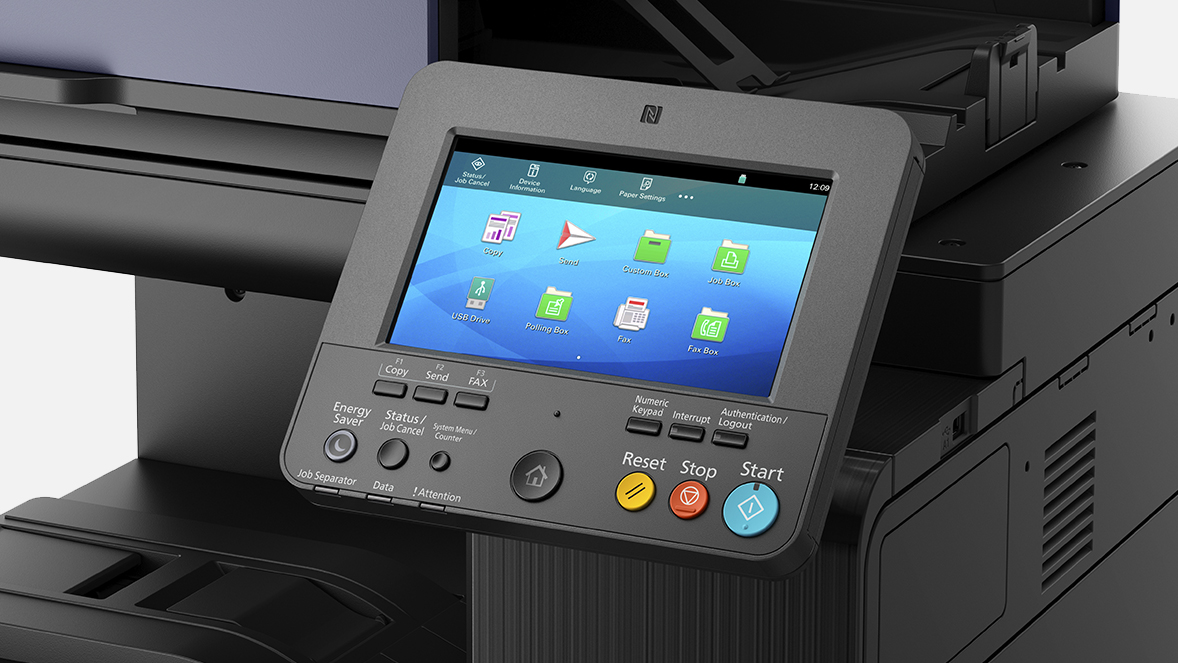

Users can now operate the interface more intuitively. The full-colour touch panel incorporates a new slide, pinch in and pinch out tablet like functionality that makes complex tasks, such as producing booklets or scanning huge documents, simpler.

A user-friendly experience

The new user interface has a tablet like functionality allowing for an intuitive and improved user experience.
Keeping you safe from security threats

The new TASKalfa series equips you with enhanced security management options. You are kept increasingly secure thanks to KYOCERA Net Manager and Trusted Platform Module ensuring your device is kept safe from any security challenges you might face.

Keeping you safe from security threats

With a Date Security Kit now included as standard, the new TASKalfa series will help prevent data leaks from occurring.

Main Specifications

General

General
Paper handling
Print
Copy
Scan
Fax

General type

Colour multifunctional for A4 format

Engine speed

Up to 50 pages A4 per minute in colour and black and white, simplex, duplex

Warm-up time

Approx. 21.8 seconds or less

Power consumption

Copy/Print Mode: Mono 750 W/Color 750 W; Ready Mode: 90 W; Low Power Mode: 53 W; Sleep Mode: 0.7 W

Warranty

1 year

Input capacity

Multi-purpose tray: 100 sheets, 60–220 g/m2 (Banner 129–163 g/m2), A4, A5, A6, B5, B6, Letter, Legal, Custom (70 × 148 to 216 × 356 mm), Banner max. 216 × 1,220 mm; Standard universal paper cassette: 500 sheets, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Custom (105 × 148 to 216 × 356 mm).

Max. input capacity with options

3,100 sheets

Duplex unit

Duplex functionality as standard: 60–220 g/m2, A4, A5, B5, Letter, Legal

Max. output capacity

Max. 500 sheets face-down with paper full sensor

Document processor

DP-5100 : RADF 75 pgs (opt) DP-5120: 100 pgs DSDP (opt) DP-5130: DSDP 270 pgs with double feed detection (opt)

Processor

Freescale QorIQ T1024（Dual Core) 1.0GHz

Fonts

93 outline fonts (PCL), 136 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features

KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria, Wi-Fi Direct, Google cloud print

Applicable OS

All current Windows operating systems, MAC OS X Version 10.9 or higher, Unix, Linux, as well as other operating systems on request

Max. original size

A4/Legal

Continuous copy

1 - 9,999

Zoom range

25 – 400 % in 1 % steps

Preset magnification ratios

5 Reductions/5 Enlargements

Image adjustments

Text + Photo, Photo, Text, Map, Printed document

Digital copy features

Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page

Scan functionalities

Scan-to-email, Scan-to-FTP, Scan-to-SMB 3.0, Scan-to-USB Host, Network TWAIN, WIA, WSD scan

Scan speed

DP-5100 up to 60 ipm; DP-5120 up to 120 ipm; DP-5130 up to 170 ipm

Scan features

Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution

600, 400, 300, 200 dpi (256 grey scales per colour)

Max. scan size

A4, Legal, Banner up to 1,900 mm

File type

TIFF, JPEG, XPS, OpenXPS, PDF (MMR/JPG compression/high compression PDF), Searchable PDF (Option), MS Office file (Option)

Original recognition

Text, photo, text + photo, light text/fine line, optimised for OCR

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Scanning speed

2.0 seconds or less

Transmission speed

Max. 3 seconds (JBIG)

Scanning density

Normal: 8 dot/mm × 3.85 line/mm (200 × 100 dpi) Fine: 8 dot/mm × 7.7 line/mm (200 × 200 dpi) Superfine: 8 dot/mm × 15.4 line/mm (200 × 400 dpi) Ultrafine: 16 dot/mm × 15.4 line/mm (400 × 400 dpi) 600 × 600 dpi Halftone: 256 greyscales

Max. original size

A4, Legal, Banner up to 1,600 mm

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Paper handling options

Paper handling options
Consumables
Options

SH-10
Staple cartridge 3 x 5,000

TK-5315C
Toner cyan for 18,000 pages. Average continuous toner yield in accordance with 5 % coverage (A4).

TK-5315K
Toner black for 24,000 pages. Average continuous toner yield in accordance with 5 % coverage (A4).

TK-5315M
Toner magenta for 18,000 pages. Average continuous toner yield in accordance with 5 % coverage (A4).

TK-5315Y
Toner yellow for 18,000 pages. Average continuous toner yield in accordance with 5 % coverage (A4).

WT-5191
Waste Toner Bottle: 44,000 sheets (in accordance with 5% coverage b/w:colour=7:3)

CB-5110H
Wooden desk (high)

CB-5110L
Wooden desk (low)

CB-5120H
Metal desk (high)

CB-5120L
Metal desk (low)

Card Authentication Kit (B)
Support for various authentication keys available

Card Reader Holder (11)
To integrate the USB IC Card Reader

FAX SYSTEM 10 (X)
Super G3 Fax, network fax, (max. 2 can be install, dual fax)

IB-35
Direct WiFi Interface

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

Internet Fax Kit
Type A

NK-7100 (B)
Numeric keypad make it easier to enter large amounts of numeric data.

ST-5110
Stabilizer for Cabinet

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

UG-33
ThinPrint support

UG-34
Emulation (IBM Proprinter/EPSON LQ-850/Diablo 630)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

TASKalfa 508ci drivers
TASKalfa 508ci documentation
TASKalfa 508ci software

Related products

Kyocera solutions to resolve all business needs.

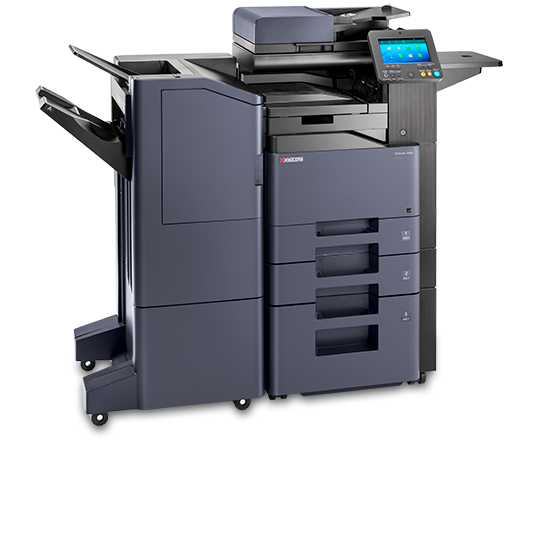

TASKalfa 408ci

Long-life components reduce waste and provide exceptional efficiency and reliability.

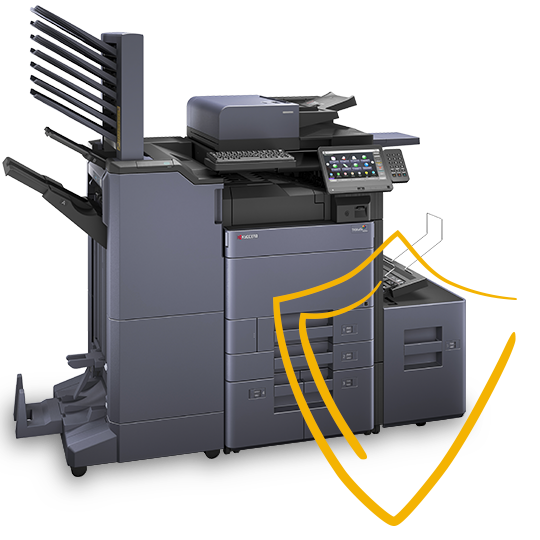

TASKalfa 4053ci

High-quality, vibrant colour results and flexibility.

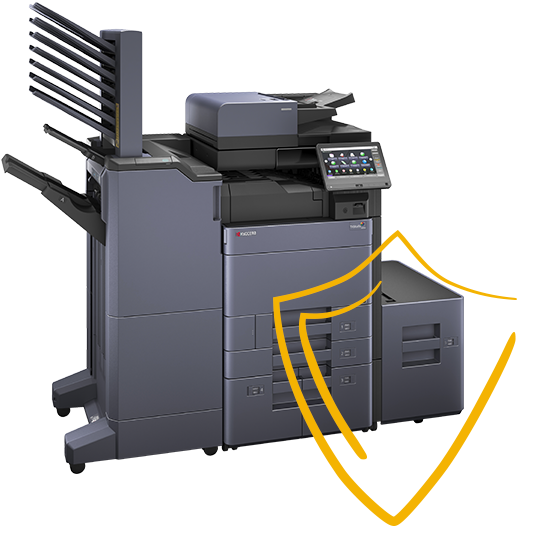

TASKalfa 5053ci
