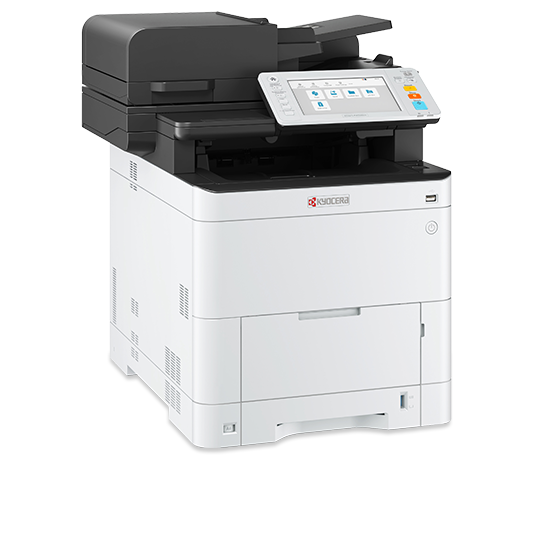

    square-540x540-MA4000cifx

    ECOSYS MA4000cifx

    This flexible device is an all-in-one solution for medium and large-sized work groups, offering everything from double-sided print to copying, scanning and faxing

    • Double-sided print, copy, scan and fax.
    • Data overwrite and encryption, Trusted Platform Module, S/MIME and TLS 1.3
    • HyPAS™ solution platform enables powerful customisations
    • Strenghen affinity with Microsoft Universal Print
    Engine speed
    Engine speed

    Up to 40 pages A4 per minute in colour and b/w

    Resolution
    Resolution

    1200 x 1200 dpi (print, at reduced speed) 600 x 600 dpi (scan/copy)

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    480 × 577.5 × 571.5 mm

    Warranty
    Warranty

    1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man leaning back in his chair

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks

      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman smiling in meeting

      A4 printer for all needs

      KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A4 printer for all needs

      A4 printer for all needs

      High quality, high reliability and high efficiency are essential.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS MA4000cifx drivers
    • ECOSYS MA4000cifx documentation
    • ECOSYS MA4000cifx software

    Keep cyber threats at bay.

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax

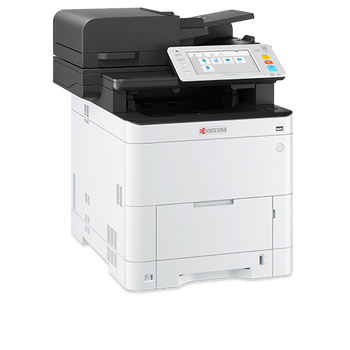

    square-540x540-MA4000cifx
    General type
    Colour multifunctional for A4 format
    Engine speed
    Up to 40 pages A4 per minute in colour and b/w
    Warm-up time
    Approx. 26 seconds or less
    Power consumption
    Printing: 532 W Copying: 547 W Ready mode: 84 W Sleep-mode: 0.6 W
    Warranty
    1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity
    100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm).
    Max. input capacity with options
    2,210 sheets with 64 g/m2
    Duplex unit
    Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal
    Max. output capacity
    Max. 250 sheets face-down with paper full sensor
    Document processor
    Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
    Processor
    ARM Cortex-A9 Dual core1.2 GHz
    Fonts
    93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
    Features
    Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
    Max. original size
    A4/legal
    Continuous copy
    1 - 999
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    7 Reductions/5 Enlargements
    Image adjustments
    Text + Photo, Photo, Text, Map, Printed document
    Digital copy features
    Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
    Scan functionalities
    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan
    Scan speed
    120 ipm (300 dpi, A4, b/w), 100 ipm (300 dpi, A4 colour), 60 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4 colour)
    Scan features
    Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Scan resolution
    200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)
    Max. scan size
    A4 / legal
    File type
    TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Serchable PDF (optional Scan Extension Kit(A) is required)
    Original recognition
    Text, photo, text + photo, light text, optimised for OCR
    Compatibility
    ITU-T Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed
    2.0 seconds or less
    Transmission speed
    Max. 3 seconds (JBIG)
    Scanning density
    Normal: 8 dot/mm x 3.85 line/mm (200x100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200x200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200x400dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400x400 dpi), Halftone: 256 gray scales
    Max. original size
    A4 / legal
    Fax features
    Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

    Get More Information About Your Warranty Conditions.

    More details about Your Standard Warranty conditions coverage and details can be found here.
    Go to the Warranty page Go to the Warranty page

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Consumables
    • Options

    TK-5380C
    Average continuous cyan toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 5,000 pages in accordance with ISO/IEC 19798.

    TK-5380K
    Microfine toner black for 13,000 A4. Capacity of starter toner is black 6,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

    TK-5380M
    Average continuous magenta toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 5,000 pages in accordance with ISO/IEC 19798.

    TK-5380Y
    Average continuous yellow toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 5,000 pages in accordance with ISO/IEC 19798.

    CB-5150B
    Wooden cabinet

    CB-5150H
    Wooden cabinet

    CB-5150L
    Wooden cabinet

    CB-5150S
    Metal cabinet

    HD-17
    64 GB for easy document management

    HD-18
    256 GB SSD hard disc for easy document management

    HD-19
    512 GB SSD hard disc for easy document management

    IB-37
    Wireless Network Interface (USB: 5GHz/2.4GHz)

    IB-38
    Wireless Network Interface (USB: 2.4GHz)

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024
    1,024 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    Scan extension Kit (A) AC
    Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

    UG-33
    ThinPrint support

    UG-35
    TPM (Trusted Platform Module)

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

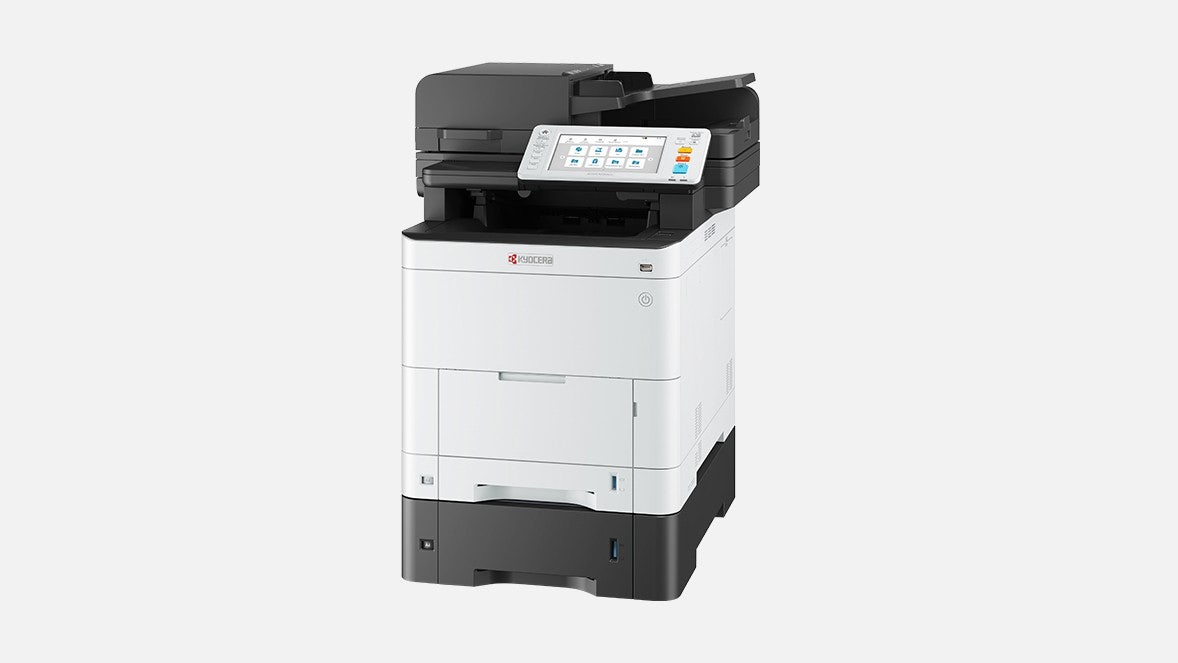

    • media-image-large-1178x663-MA4000cifx-2

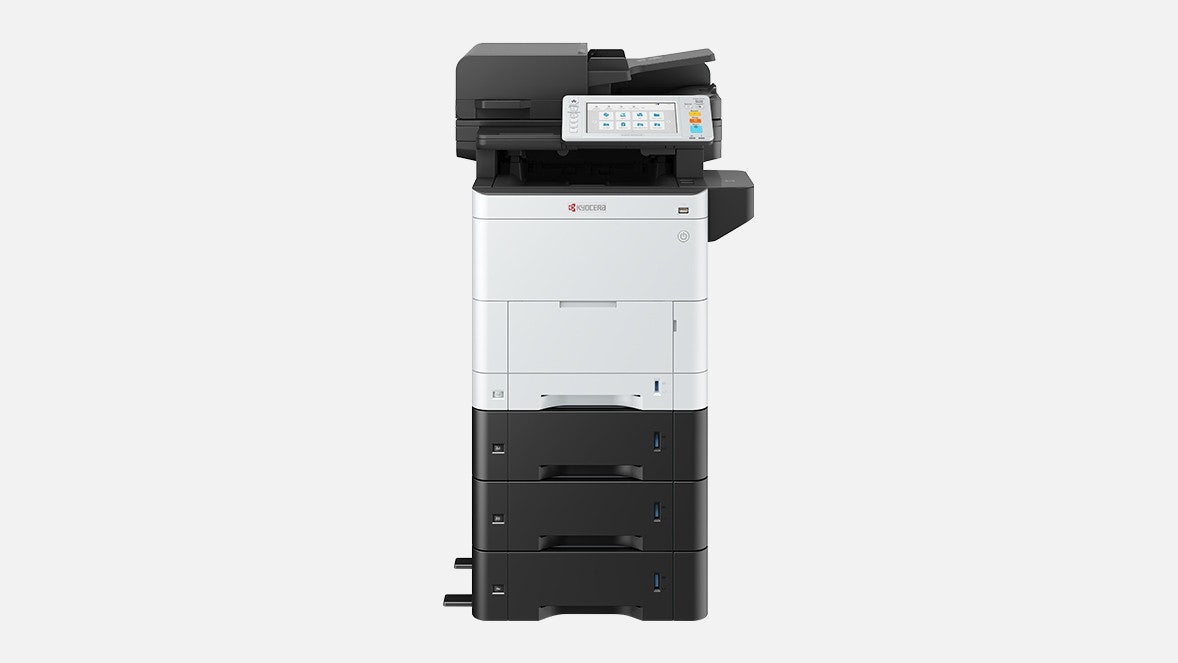

    • media-image-large-1178x663-MA4000cifx-3

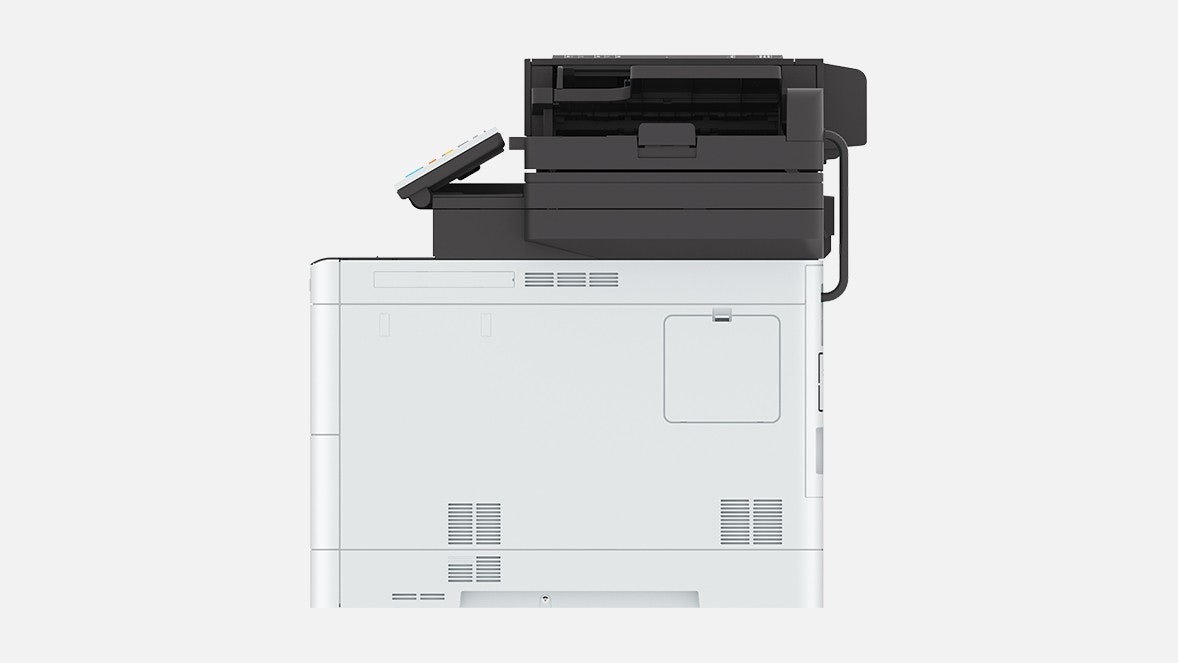

    • media-image-large-1178x663-MA4000cifx-4

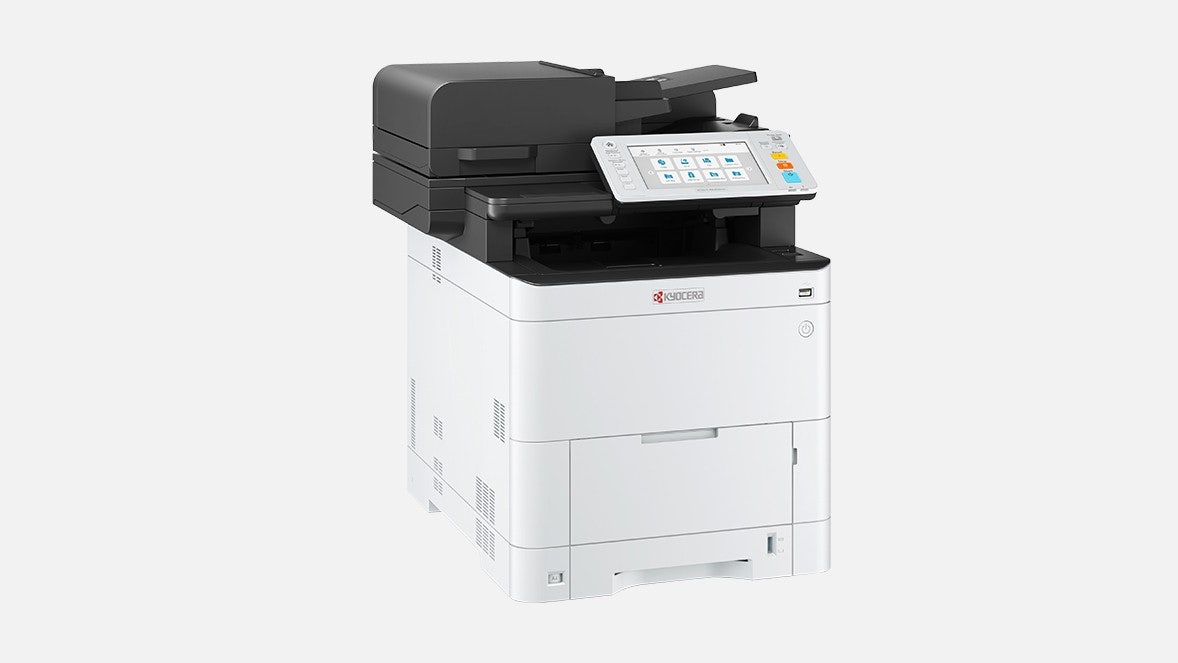

    • media-image-large-1178x663-MA4000cifx-5

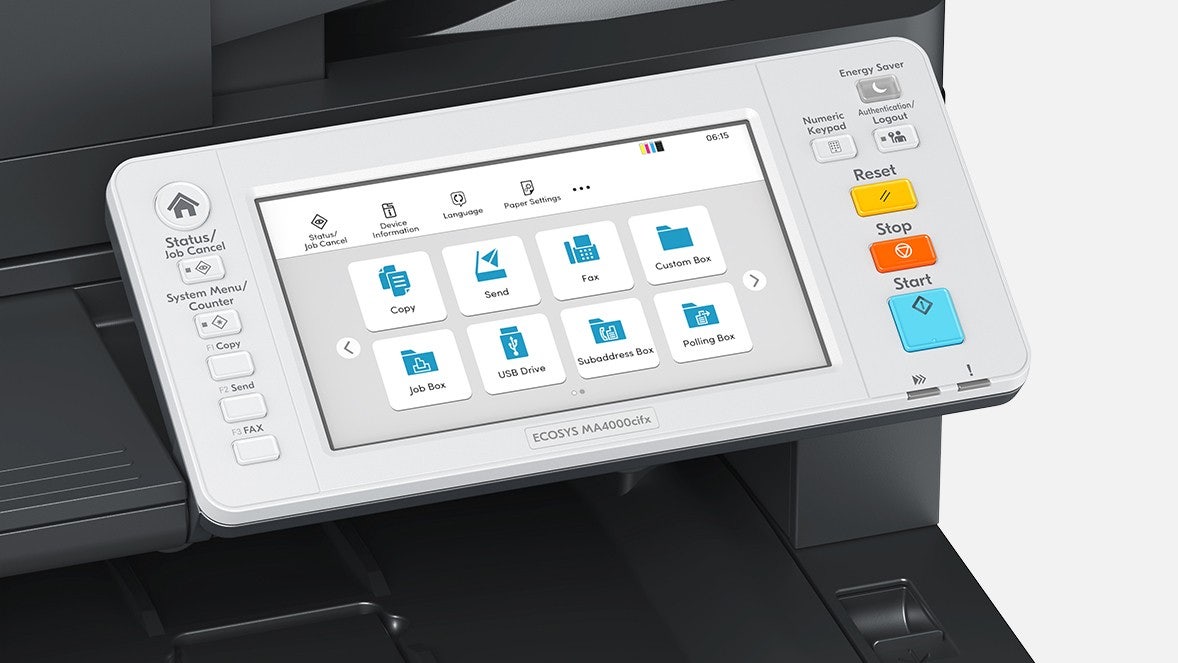

    • media-image-large-1178x663-MA4000cifx-6

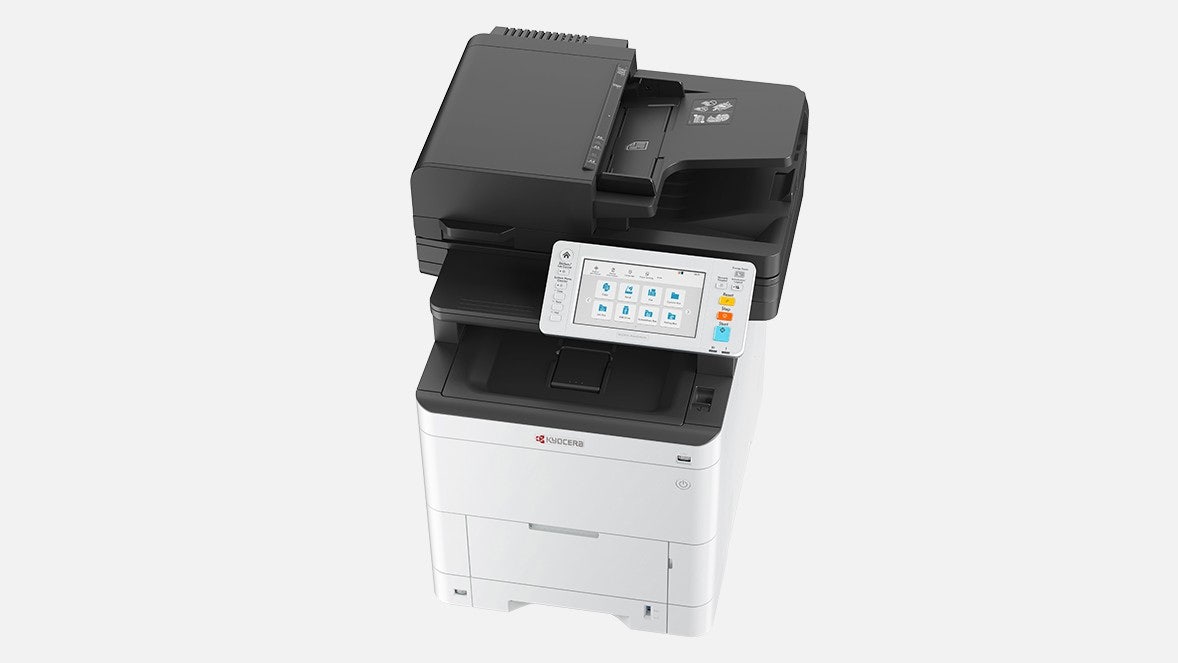

    • media-image-large-1178x663-MA4000cifx-1
