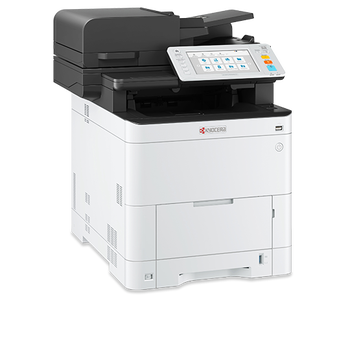

    square-540x540-MA3500cifx

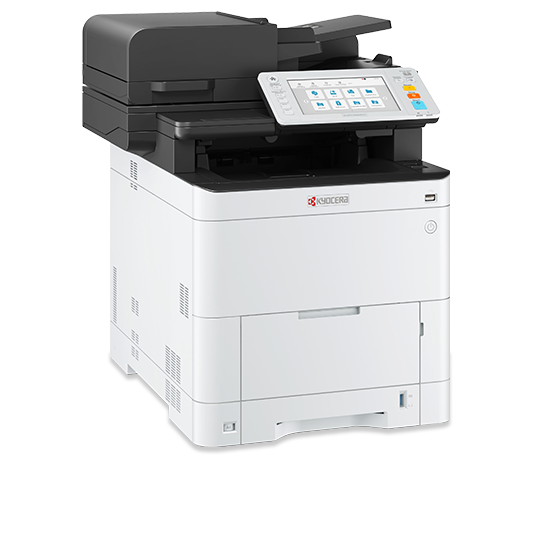

    ECOSYS MA3500cifx

    The ECOSYS MA3500cifx is an ideal option for medium to larger-sized work groups.
    • Double-sided print, copy, scan and fax.
    • Data overwrite and encryption, Trusted Platform Module, S/MIME and TLS 1.3
    • HyPAS™ solution platform enables powerful customisations
    • Strenghen affinity with Microsoft Universal Print

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
    • ECOSYS MA3500cifx Drivers
    • ECOSYS MA3500cifx Documentation
    • ECOSYS MA3500cifx Software

    Suited for fast paced work environments.

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    square-540x540-MA3500cifx
    General type
    Colour multifunctional for A4 format
    Engine speed
    Up to 35 pages A4 per minute in colour and b/w
    Warm-up time
    Approx. 26 seconds or less
    Power consumption

    Printing: 532 W Copying: 547 W Ready mode: 84 W Sleep-mode: 0.6 W

    Warranty
    1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity

    100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm).

    Max. input capacity with options

    2,210 sheets with 64 g/m2

    Duplex unit

    Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal

    Max. output capacity

    Max. 250 sheets face-down with paper full sensor

    Document processor

    Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)

    Processor
    ARM Cortex-A9 Dual core1.2 GHz
    Fonts

    93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

    Features

    Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality

    Applicable OS

    All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

    Max. original size
    A4/legal
    Continuous copy
    1 - 999
    Zoom range

    25 - 400 % in 1% steps

    Preset magnification ratios

    7 Reductions/5 Enlargements

    Image adjustments

    Text + Photo, Photo, Text, Map, Printed document

    Digital copy features

    Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page

    Scan functionalities

    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan

    Scan speed

    100 ipm (300 dpi, A4, b/w), 80 ipm (300 dpi, A4 colour), 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4 colour)

    Scan features

    Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

    Scan resolution

    200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)

    Max. scan size
    A4 / legal
    File type

    TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Serchable PDF (optional Scan Extension Kit(A) is required)

    Original recognition

    Text, photo, text + photo, light text, optimised for OCR

    Compatibility
    ITU-T Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed

    2.0 seconds or less

    Transmission speed
    Max. 3 seconds (JBIG)
    Scanning density

    Normal: 8 dot/mm x 3.85 line/mm (200x100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200x200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200x400dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400x400 dpi), Halftone: 256 gray scales

    Max. original size
    A4 / legal
    Fax features

    Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

    Get More Information About Your Warranty Conditions.

    More details about Your Standard Warranty conditions coverage and details can be found here.

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Consumables
    • Options
    TK-5370C

    Average continuous cyan toner yield 5,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 2,500 pages in accordance with ISO /IEC 19798.
    TK-5370K

    Average continuous black toner yield 7,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous black toner yield 3,500 pages in accordance with ISO /IEC 19798.
    TK-5370M

    Average continuous magenta toner yield 5,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 2,500 pages in accordance with ISO /IEC 19798.
    TK-5370Y

    Average continuous yellow toner yield 5,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 2,500 pages in accordance with ISO /IEC 19798.
    CB-5150B

    Wooden cabinet
    CB-5150H

    Wooden cabinet
    CB-5150L

    Wooden cabinet
    CB-5150S

    Metal cabinet
    HD-17

    64 GB SSD hard disc for easy document management
    HD-18

    256 GB SSD hard disc for easy document management
    HD-19

    512 GB SSD hard disc for easy document management
    IB-37

    Wireless LAN Interface (802.11 a/b/g/n/ac, 5 GHz band / 2.4 GHz band, WiFi direct)
    IB-38

    Wireless LAN Interface (802.11 b/g/n, 2.4 GHz band, WiFi direct)
    IB-50

    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
    IB51

    Wi-Fi Card (802.11b/g/n)
    KYOmulticode SD 3

    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
    MD3-1024 (b)

    1,024 MB RAM Expansion
    PCL Barcode Flash 3.0 Type D/E

    Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).
    UG-33

    ThinPrint Kit: enables printing under ThinPrint
    UG-35

    Trusted Platform Module (TPM)
    USB_IC_CARDREADER

    Simplifies authentication on the system

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.

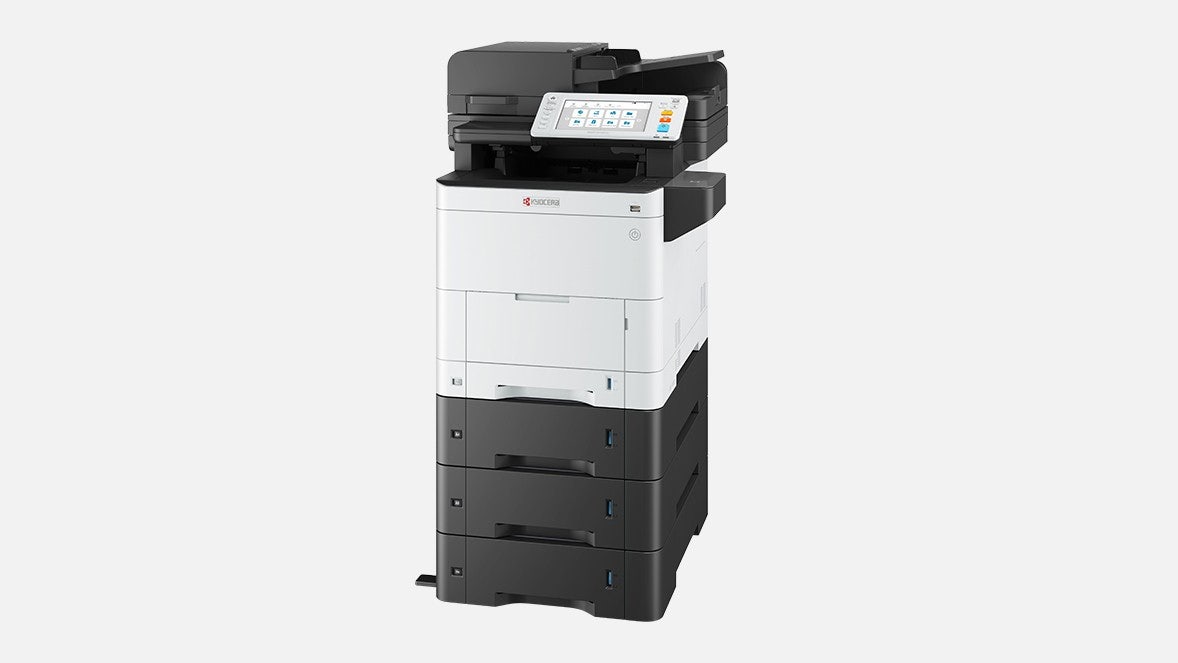

    • media-image-large-1178x663-ma3500cifx-1

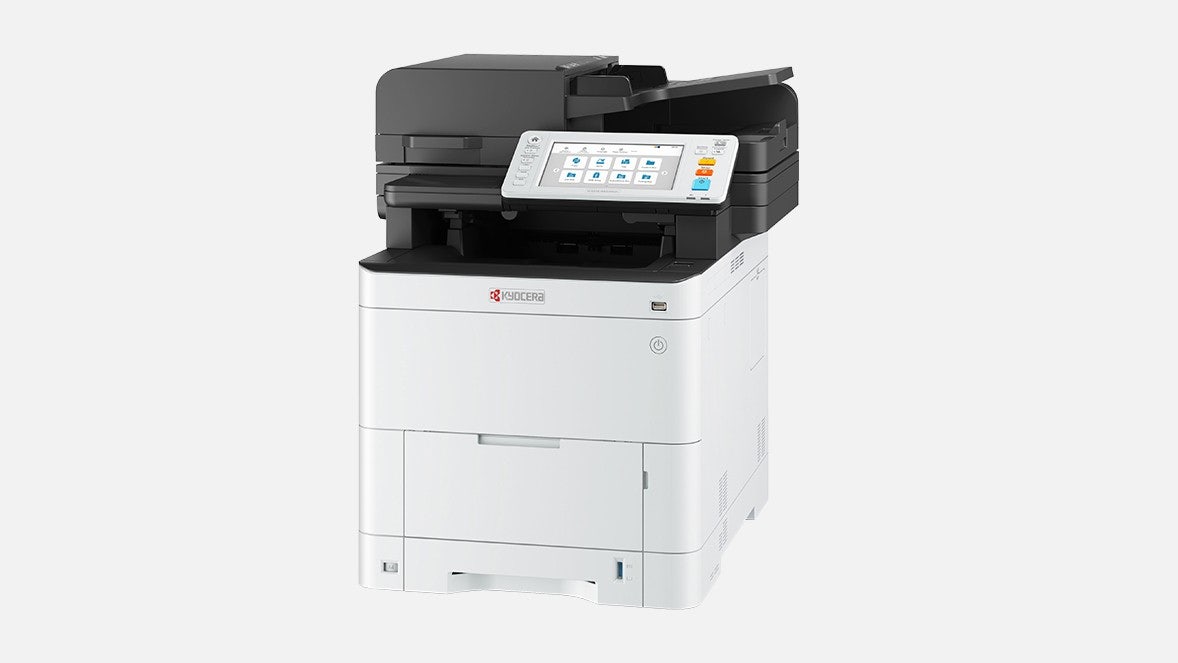

    • media-image-large-1178x663-ma3500cifx-2

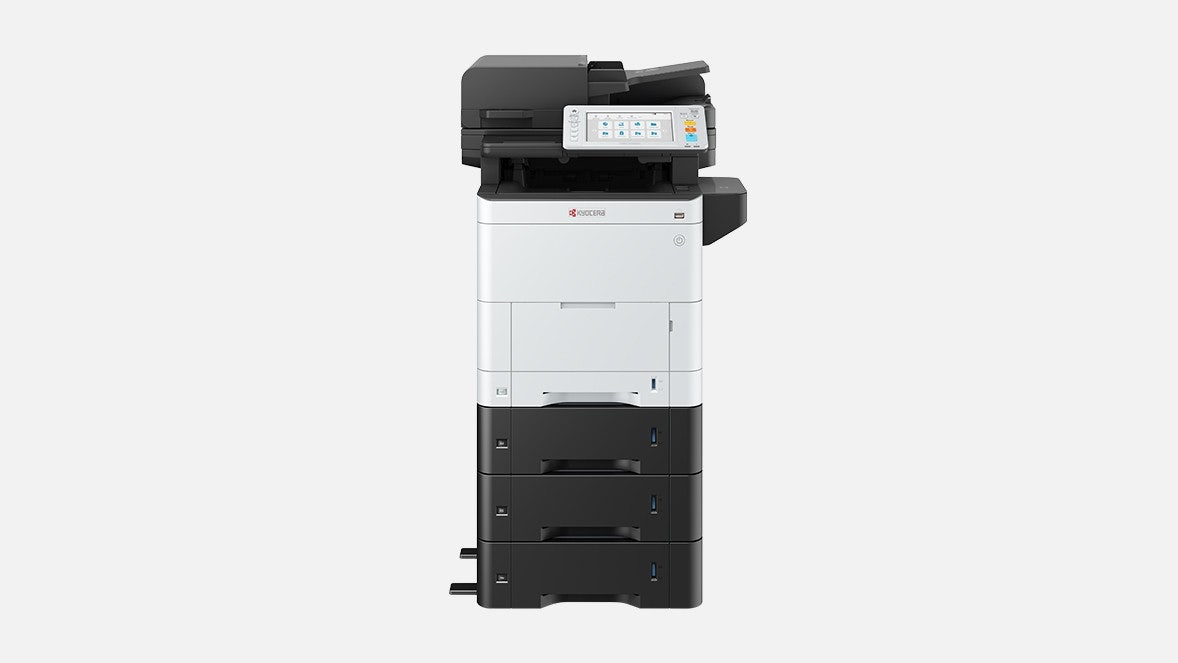

    • media-image-large-1178x663-ma3500cifx-3

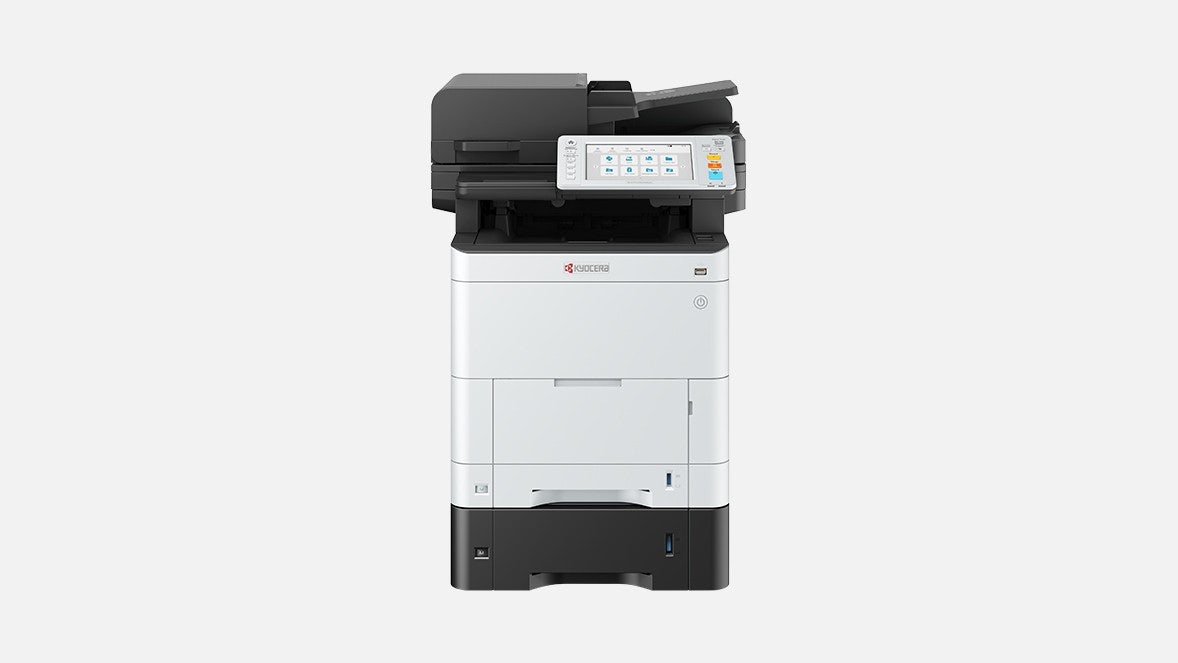

    • media-image-large-1178x663-ma3500cifx-4

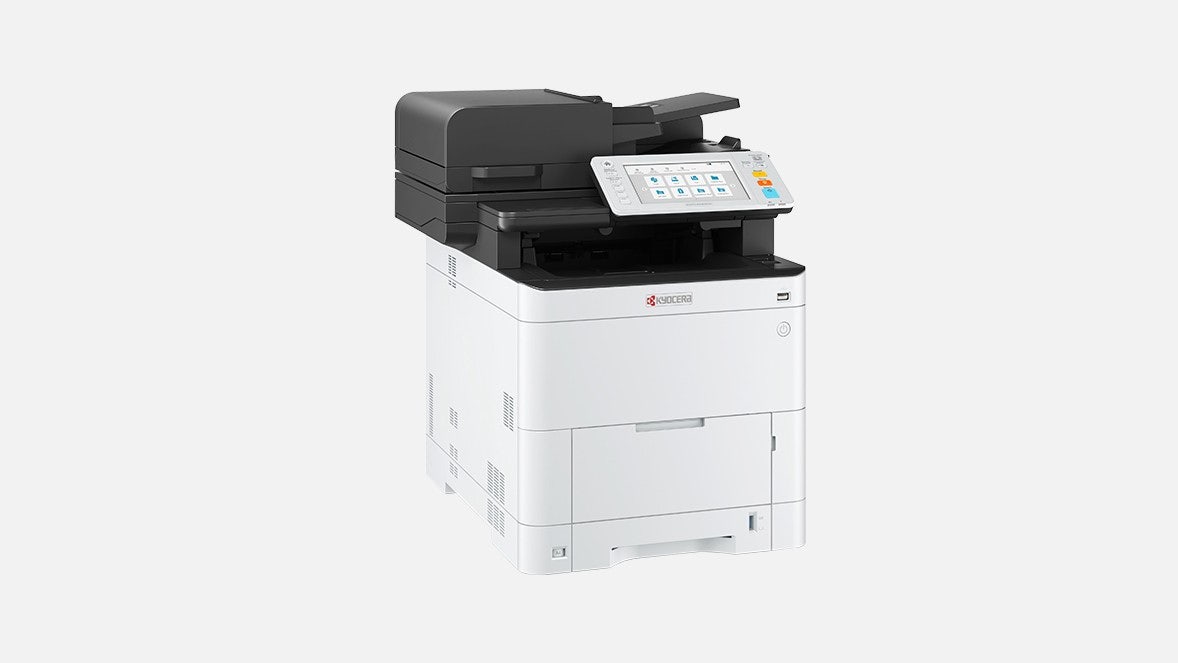

    • media-image-large-1178x663-ma3500cifx-5

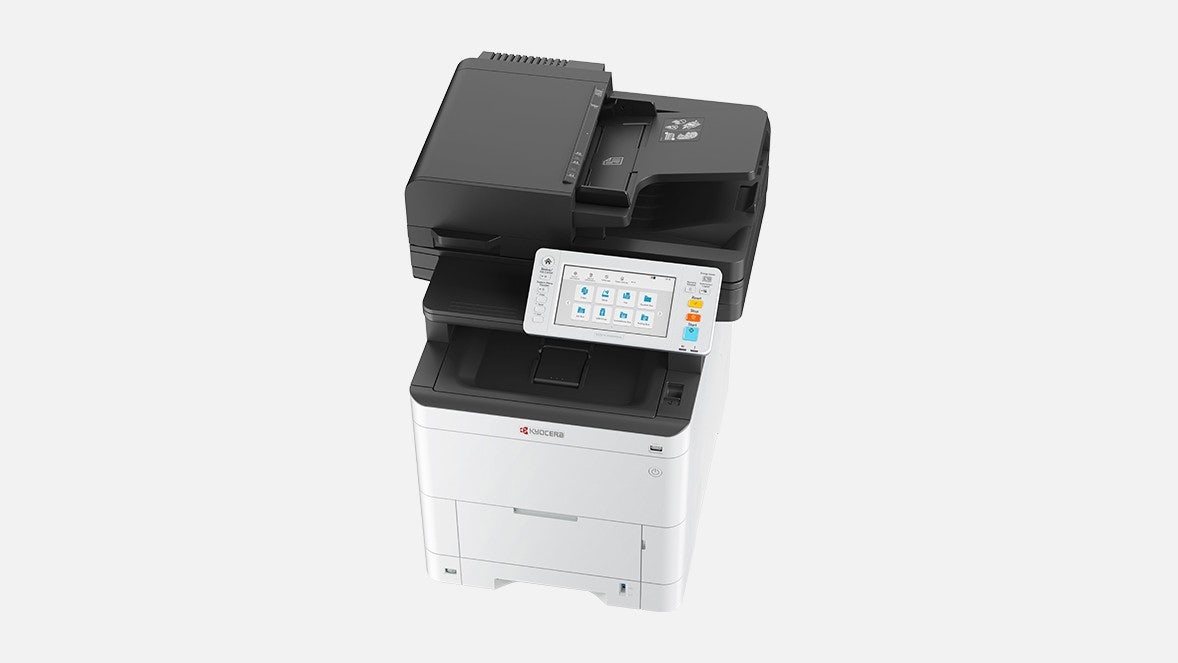

    • media-image-large-1178x663-ma3500cifx-6
