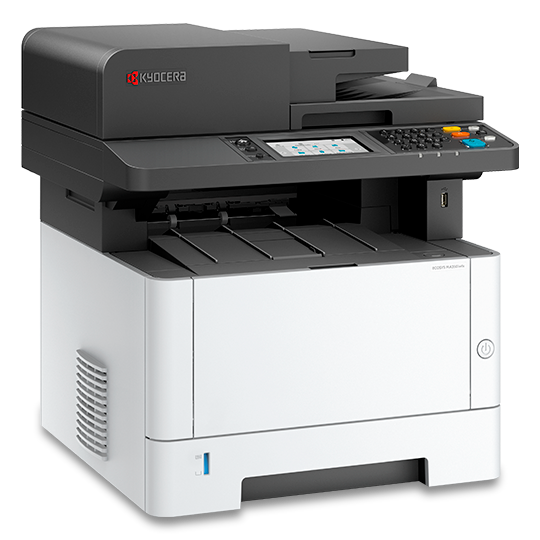

    MAIN_540x540_MA3501wfx_comb01_left_01

    ECOSYS MA3501wfx

    Featuring Wi-Fi Direct, mobile printing capabilities, and upgraded memory, the MA3501wfx is a productivity powerhouse tailored for modern workplaces. This multifunctional printer ensures outstanding quality while keeping printing costs to a minimum.

    • Print, copy, colour scan, and fax functionality
    • Up to 2 optional paper feeders for a total of 850 sheets
    • Safety of sensitive data with enhanced security features
    • Integration of personal cloud storage services
    • Compatible with Microsoft Universal Print for seamless printing
    Engine speed
    Engine speed

    Up to 35 pages A4 per minute

    Resolution
    Resolution

    1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    417 x 412 x 437 mm

    Weight
    Weight

    Approx. 19 kg

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    Downloads

    • ECOSYS MA3501wfx drivers
    • ECOSYS MA3501wfx documentation
    • ECOSYS MA3501wfx software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    MAIN_540x540_MA3501wfx_comb01_left_01
    General type
    Monochrome multifunctional for A4 format
    Engine speed
    Up to 35 pages A4 per minute
    Warm-up time
    Approx. 29 seconds or less from switching on
    Power consumption
    Copying/Printing: 534.4 W, Ready-mode: 11.8 W, Sleep-mode: 0.4 W
    Warranty
    1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 85,000 pages (whichever occurs sooner), provided each printer is used and cleaned in accordance with the service instructions.
    Input capacity
    100-sheet multi-purpose compartment; 60 – 220 g/m²; A4, A5, A6, custom (70 x 148 – 216 x 356 mm). 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, custom (105 x 148 – 216 x 356 mm).
    Max. input capacity with options
    850 sheets
    Duplex unit
    Duplex functionality as standard. Double-sided printing: 60 – 163 g/m²; A4, A5, custom (135 × 210 - 216 × 356 mm).
    Max. output capacity
    Max. 150 sheet face-down with paper full detection
    Document processor
    Automatic document feeder: 50-sheet; 50 – 160 g/m²; A4, A5, A6, Custom (100 x 148 – 216 x 356 mm).
    Processor
    1.0GHz
    Fonts
    93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 one-dimensional barcodes (e.g. EAN-8, EAN-13, EAN-128), as well as support for two-dimensional barcodes PDF417 under PRESCRIBE (PCL and other barcodes available an option)
    Features
    “Proof and hold”*, Job storage*, Quick copy*, Private print*, Data storage method with PIN code or password*, Internet printing IPP 1.0, E-mail printing, WSD Print, EcoPrint - toner save mode, AirPrint, Mopria, Microsoft Universal Print, Job batch output, Image Refinement, Pull print, VPSX, IPP PIN Print, Kyocera Cloud Access, optional Kyocera Cloud Print and Scan. *Optional SD/SDHC memory card is required.
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, as well as other operating systems on request
    Max. original size
    A4 / Legal
    Continuous copy
    1 - 999
    Zoom range
    25 - 350 % in 1% steps
    Preset magnification ratios
    7 Reductions / 5 Enlargements
    Image adjustments
    Text + Photo, Photo, Text, Chart/Map, Printed document
    Digital copy features
    Multiple copies from memory, electronic sorting, blank page skip, line skip, duplex copy, 2-in-1 and 4-in-1 function, split mode, DP auto-cropping, ID card copy supporting auto crop, folded corner detection, continuous scan, priority override, Eco Print (copy) - toner save mode, specific color removal, border erase, auto paper selection, manual and auto background density adjustment, manual and auto reduction / enlargement
    Scan functionalities
    Scan to Email, Scan to FTP, Scan to PC (SMB), TWAIN, WIA, WSD Scan, Scan to USB Host, Distributed File System (Windows 2012 server or later), eSCL support (AirPrint, Mopria Scan, Chrome OS)
    Scan speed
    40 ipm (300 dpi, A4, b/w, simplex), 23 ipm (300 dpi, A4, colour, simplex)
    Scan features
    Active Directory support, LDAP over TLS, internal address book, Multi Sending - simultaneous sending to email, SMB, FTP and fax, file separation, skip blank pages, line skip, folded corner detection, continuous scan, digital signature (PDF, Encrypted PDF), auto color select, scan resolution, specific color removal, border erase, manual density adjustment, saturation adjustment, text readability improvement, DP auto-cropping
    Scan resolution
    1,200 (with TWAIN and WIA driver), 600, 350, 300, 200 dpi
    Max. scan size
    A4 / Legal
    File type
    PDF, PDF/A-1, PDF/A-2, high compressed PDF, encrypted PDF, JPEG, TIFF, (Open) XPS
    Original recognition
    Text, photo, text + photo, light text/fine line, optimised for OCR
    Compatibility
    Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed
    2 seconds /sheet or less
    Transmission speed
    Max. 3 seconds (JBIG)
    Scanning density
    Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 350 dpi, Ultrafine: 350 x 350 dpi
    Max. original size
    A4 / Legal
    Fax features
    Network Fax, Memory Reception, Fax Polling, Duplex Receive, Multiple Scan, Fax Forwarding, Fax Direct, Scheduled transmission, Sub address, Fax dedicated paper source, Shared Fax Driver, text readability improvement, Received Fax preview function, Unread fax display notification

    Get More Information About Your Warranty Conditions.

    More details about Your Standard Warranty conditions coverage and details can be found here.
    Go to the Warranty page Go to the Warranty page

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Consumables
    • Options

    TK-1250
    Microfine toner for 3,000 pages A4. Capacity of starter toner is 1,000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752.

    CB-1100-B
    Wooden desk with storage capacity, including castors (wheels)

    Card Authentication Kit (B)
    Support for various authentication keys available

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    UG-50
    Trusted Platform Module (TPM)

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

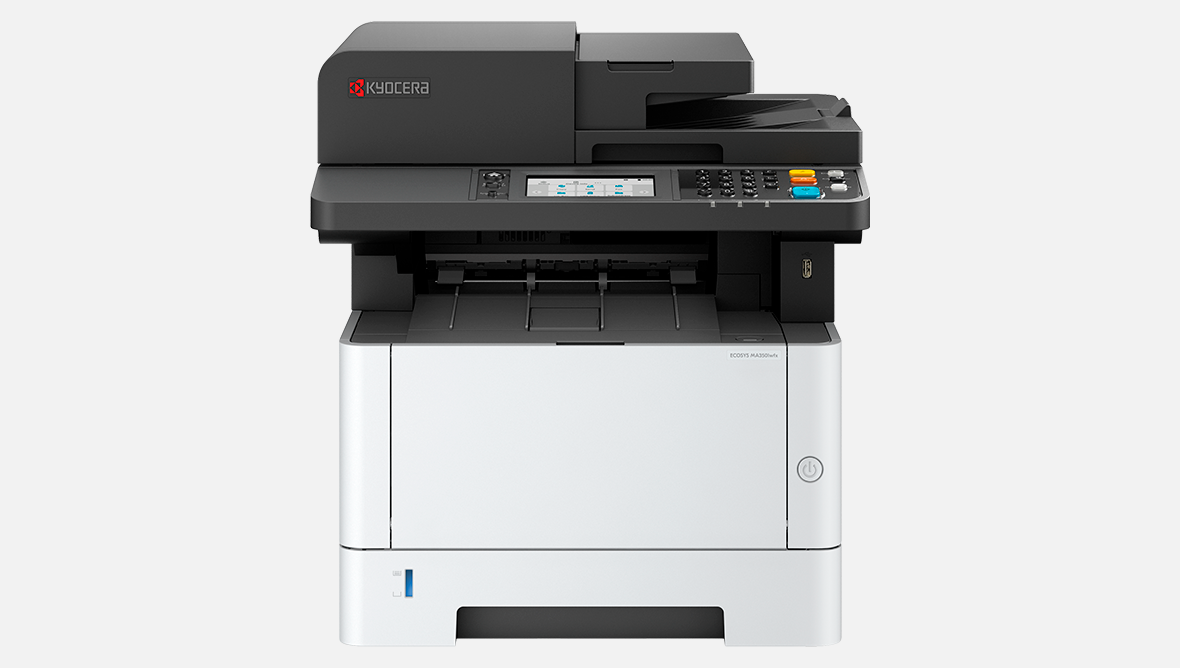

    • 1180x668_MA3501wfx_comb01_front_01

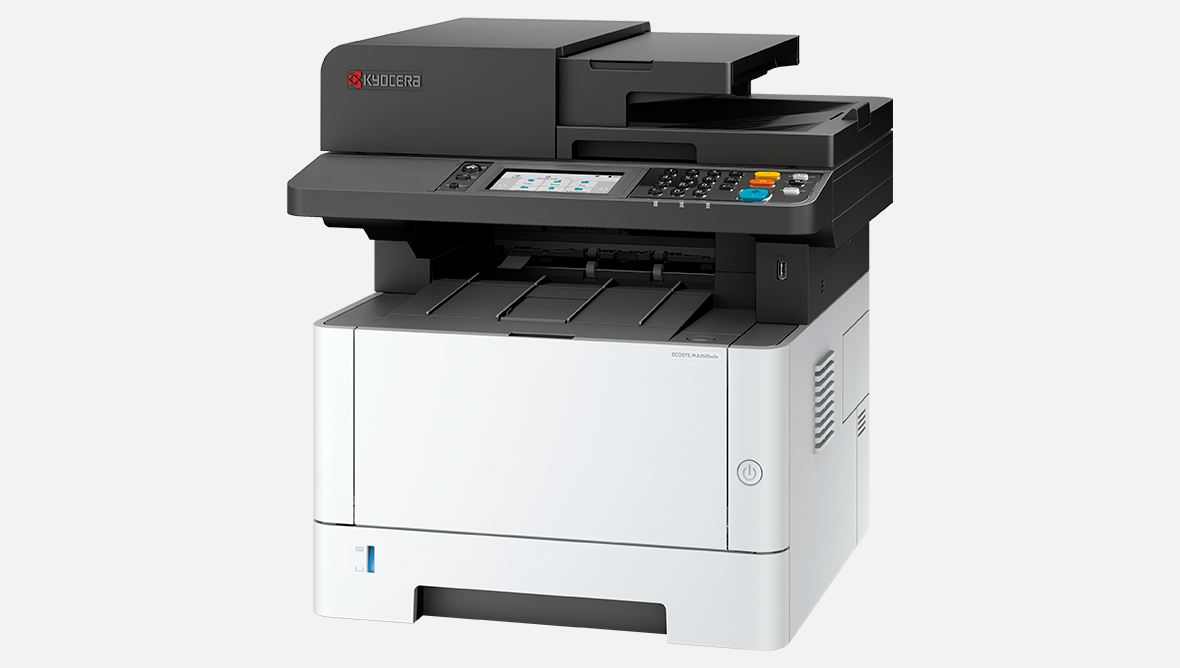

    • 1180x668_MA3501wfx_comb01_right_01

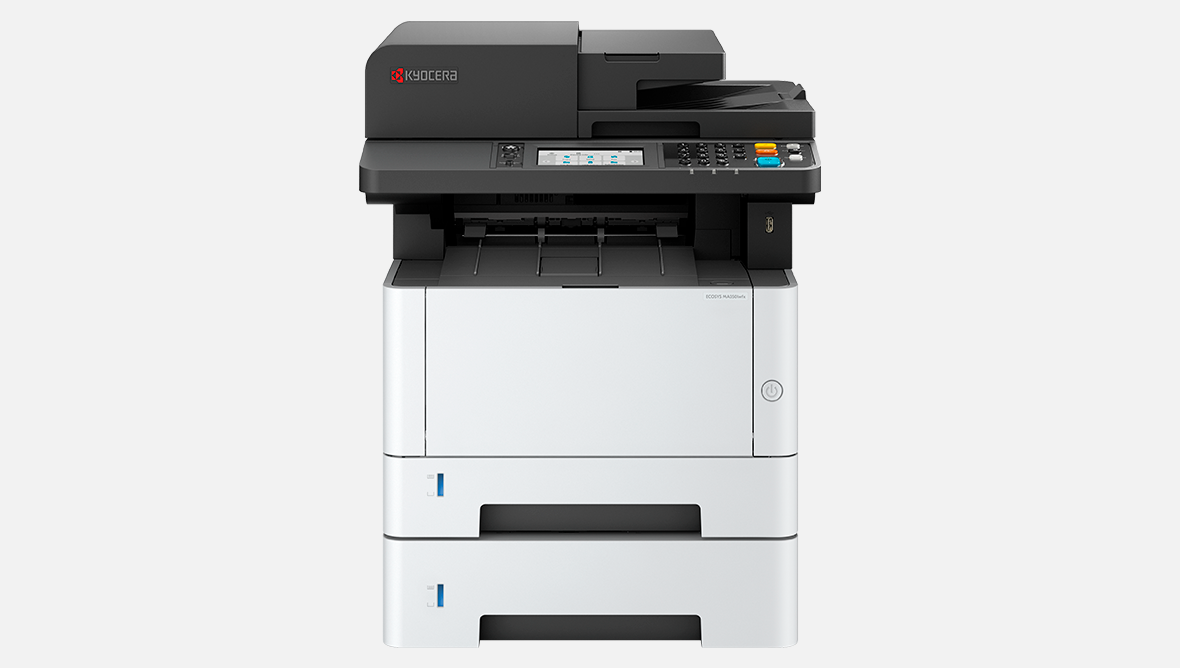

    • 1180x668_MA3501wfx_comb02_front_01

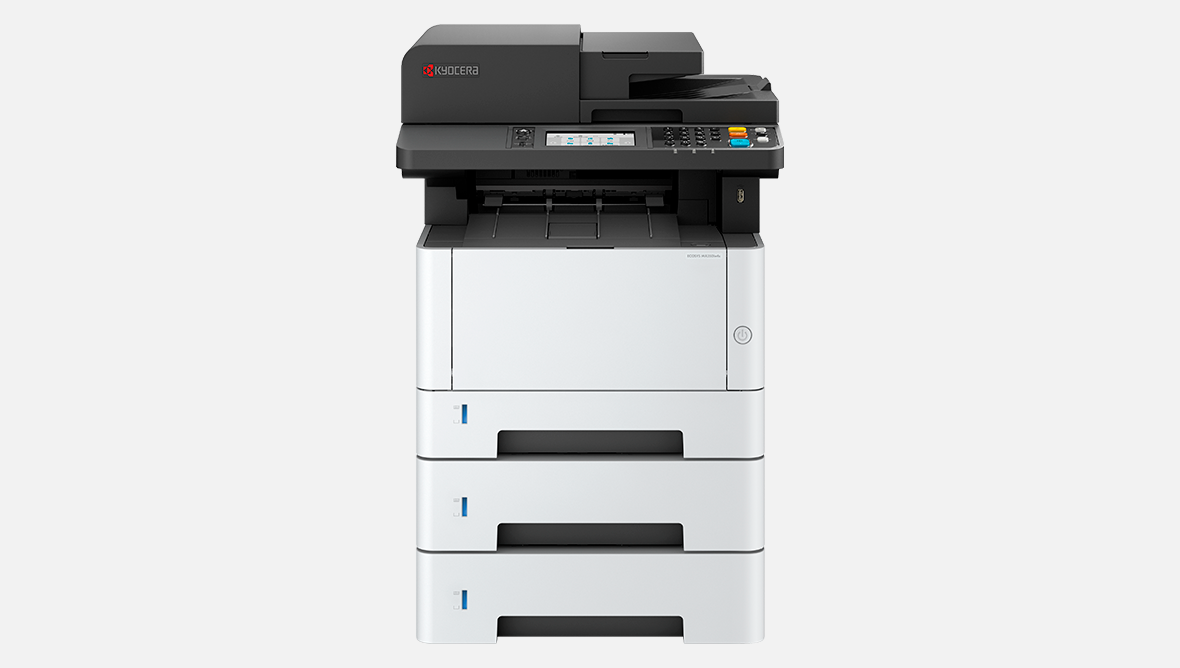

    • 1180x668_MA3501wfx_comb03_front_01

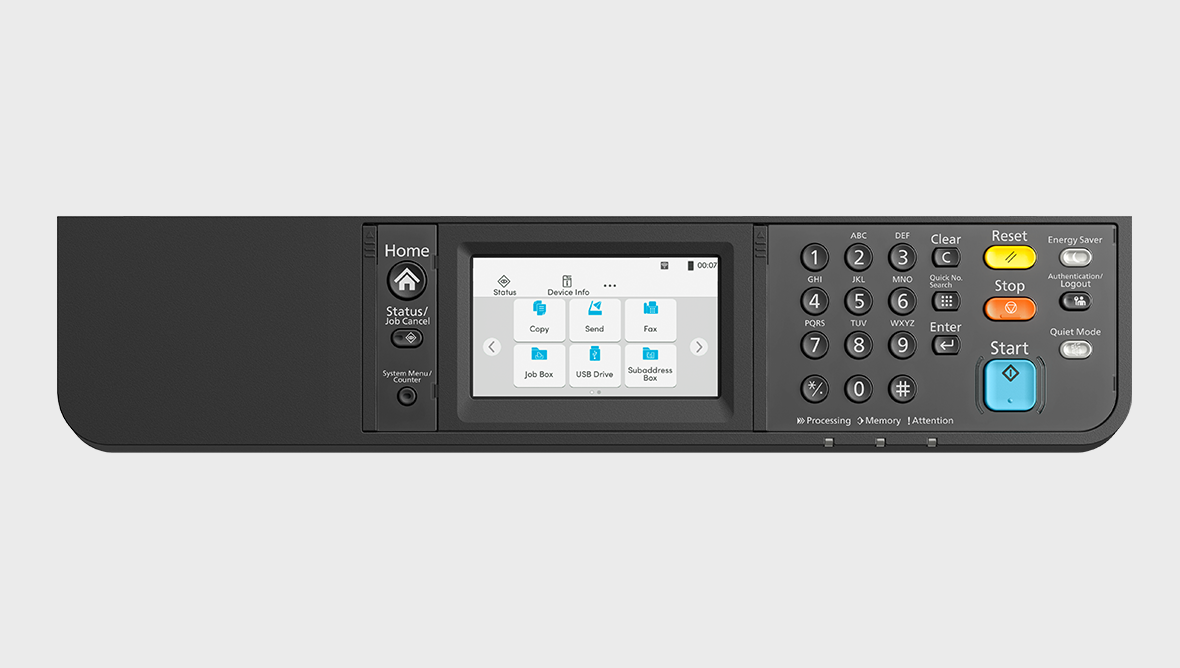

    • 1180x668_MFP_MA3501wfx_panel_eng_01
