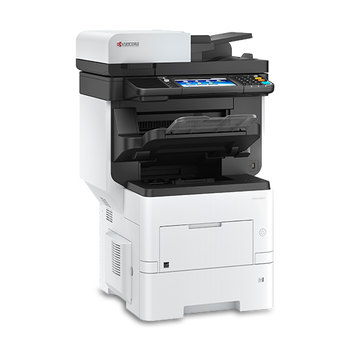

square-540x540-product-information-ECOSYS-3860idnf

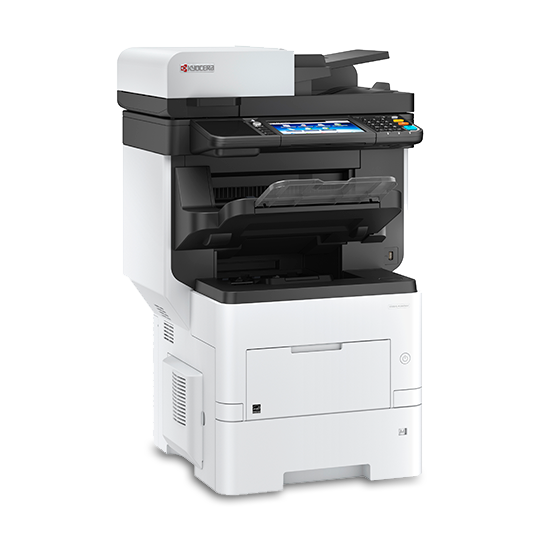

ECOSYS M3860idnf

This Multi-Functional Product is for dynamic teams (small to large in size) with high demands of productivity and software efficiency, while offering exceptionally low running costs.

Double-sided print and copy, scan and fax.
Quick scanning with the Single Pass Duplex scanning feeder.
7-inch full-colour touch panel provides ease of use.
HyPAS™ solution platform enables powerful customisations.
Space saving integrated finisher.

Engine speed

Up to 60 pages A4 per minute Duplex print speed: 43 page per minute, A4 Duplex copy speed: 43 page per minute, A4

Resolution

1200 x 1200 dpi (print) 600 x 600 dpi (scan/copy)

Dimensions (W x D x H)

480 x 545 x 744 mm

Warranty

Additional warranty on long-life parts for 3 years or 500 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Driving efficiency through sustainability

The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical

Whether on your desktop of in office production – be it in colour or black and white: with KYOCERA, you always achieve the best possible print quality while easily controlling your output costs. KYOCERA devices and their components have been designed to be extremely reliable and highly economical.

Powerful, reliable and economical

For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

Main Specifications

General

General
Paper handling
Print
Copy
Scan
Fax

General type

Monochrome multifunctional for A4 format

Engine speed

Up to 60 pages A4 per minute Duplex print speed: 43 page per minute, A4 Duplex copy speed: 43 page per minute, A4

Warm-up time

Approx. 25 seconds or less

Power consumption

Printing: 773 W Copying: 798 W Low power mode: 23 W Ready mode: 24 W Sleep-mode: 0.5 W

Input capacity

Multi-purpose tray: 100 sheets 60–220g/m2 A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm) Standard universal paper cassette: 500 sheet 60–120 g/m2 A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm).

Max. input capacity with options

Max. input capacity with options: 2,600 sheets A4

Duplex unit

Standard duplex unit 60–120 g/m2 A4, A5, B5, Letter, Legal

Max. output capacity

Max. 500 sheets face-down (inner tray: 250 sheets, finisher tray: 250 sheets) with paper full sensor. Inner finisher: 50-sheet stapling with job shift and stacking 250 sheet

Document processor

Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm) with ultrasonic sensor

Processor

ARM Cortex-A9 Dual core 1.2GHz (+ ARM Cortex-M3 100MHz)

Fonts

93 outline fonts (PCL6/KPDL 3), 8 fonts( Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features

PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec,SNMPv3, Bar code print, Banner print, Eco print

Applicable OS

All current Windows operating systems MAC OS X Version 10.9 or higher Unix, Linux as well as other operating systems on request

Max. original size

A4/Legal

Continuous copy

1 - 999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

7 Reductions / 5 Enlargements

Image adjustments

Text + Photo, Photo, Text, Chart/Map, Printing Document

Digital copy features

Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page

Scan functionalities

Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan

Scan speed

60 ipm (300 dpi, A4, b/w) 40 ipm (300 dpi, A4 colour) (Simplex), 120 ipm (300 dpi, A4, b/w) (Duplex) 80 ipm (300 dpi, A4 colour) (Duplex)

Scan features

Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution

600, 400, 300, 200 dpi 256 greyscales per colour

Max. scan size

A4 / Legal

File type

TIFF, JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)

Original recognition

Text, photo, text + photo, light text, optimised for OCR

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Scanning speed

2.0 seconds/sheet or less

Transmission speed

Max. 3 seconds (JBIG)

Scanning density

Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi) Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi) Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi) Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi) Halftone: 256 grey scales

Max. original size

A4 / Legal

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

SH-10
Staple cartridge 3 x 5,000

TK-3160
Microfine toner for 12,500 pages A4. Capacity of starter toner is 6000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752

TK-3170
Microfine toner for 15,500 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752

TK-3190
Microfine toner for 25,000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752

TK-3200
Micro fine black for 40,000 pages A4

CA-3100
Caster stand

CB-360W-B
Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (W x D x H)

CB-365W-B
Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)

Card Authentication Kit (B)
Support for various authentication keys available

Card Reader Holder (11)
To integrate the USB IC Card Reader

HD-14
HDD: 320 GB for easy document management

HD-17
64 GB for easy document management

HD-18
256 GB SSD hard disc for easy document management

HD-19
512 GB SSD hard disc for easy document management

HD-6
32 GB for easy document management

HD-7
128 GB SSD hard disc for easy document management

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOCERA Life 3 years
Warranty extension 3 years on-site

KYOCERA Life 4 years
Warranty extension 4 years on-site

KYOCERA Life 5 years
Warranty extension 5 years on-site

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MDDR3-1GB
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

MM3-512MB (b)
512 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

UG-33
ThinPrint support

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
