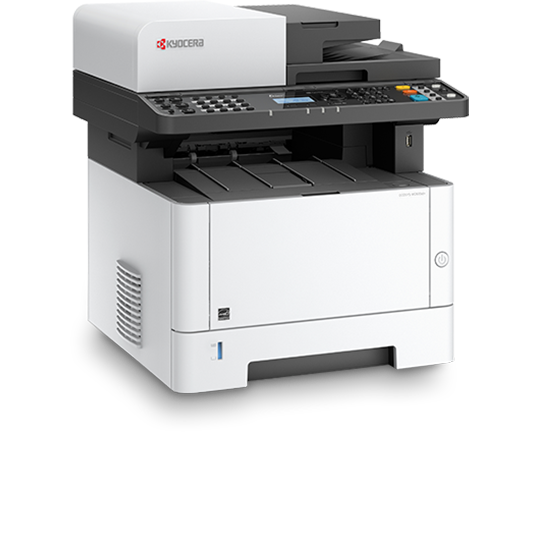

      ECOSYS M2635dn

      The M2635dn is one the most affordable models in our ECOSYS series, yet is still full of features for demanding desktop users and small work groups.
      • Double-sided print.
      • Single-sided copy, colour scan and fax.
      • Copy double-sided ID cards on a single sheet of paper with ease.
      • Compact design with low-noise printing.
      • AirPrint, Mopria, KYOCERA Mobile Print.
      • Copy double-sided ID cards on a single sheet of paper with ease
      • Compact design with low-noise printing

      ECOSYS makes your office more sustainable and efficient

      Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
      • ECOSYS M2635dn Drivers
      • ECOSYS M2635dn Documentation
      • ECOSYS M2635dn Software

      Main Specifications

      General
      • General
      • Paper Handling
      • Print
      • Copy
      • Scan
      • Fax
      mfp-540x540-angled-ecosysM2635dn
      General type
      Monochrome multifunctional for A4 format
      Engine speed
      Up to 35 pages A4 per minute
      Warm-up time
      Approx. 17 seconds or less
      Power consumption

      Copying/Printing: 661 W, Ready-mode: 21 W, Sleep-mode: 1 W,

      Warranty
      1-year warranty (depending on the country) as standard. KYOCERA guarantees the drum and developer for 3 years or 100,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
      Input capacity

      100-sheet multi-purpose tray; 60 – 220 g/m²;A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 – 216 x 356 mm).

      Max. input capacity with options

      850 sheets

      Duplex unit

      Duplex functionality as standard: Double-sided printing: 60 – 163 g/m²; A4, A5, B5, Letter, Legal

      Max. output capacity

      Max. 150 sheet face down with paper full detection

      Document processor

      Document processor: 50-sheet, 50 – 160 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (100 x 148 to 216 x 356 mm)

      Processor
      800 MHz
      Fonts

      93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

      Applicable OS

      All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

      Max. original size
      A4(Platen)/Legal(DP)
      Continuous copy
      1 - 999 (when optional memory installed)
      Zoom range

      25 - 400 % in 1% steps

      Preset magnification ratios

      7 Reductions/5 Enlargements

      Image adjustments

      Text + photo, text, photo

      Digital copy features

      Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control

      Scan functionalities

      Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMBv3, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)

      Scan speed

      40 ipm (300 dpi, A4, b/w); 23 ipm (300 dpi, A4, colour)

      Scan features

      Integrated address book, LDAP, encrypted data transfer, Blank sheet skip

      Scan resolution

      300dpi x 300dpi, 200dpi x 200dpi(Default) , 200dpi x 100dpi , 600dpi x 600dpi , 400dpi x 400dpi , 200dpi x 400dpi

      Max. scan size
      A4(Platen), Legal(DP)
      File type

      TIFF, PDF, PDF/A-1 , high compression PDF, encrypted PDF, JPEG, XPS

      Original recognition

      Text + Photo, Photo, Text, Light Text/Fine Line, Text (for OCR)

      Compatibility
      ITU-T Super G3
      Modem speed
      Max. 33.6 kbps
      Scanning speed

      2 seconds /sheet or less

      Transmission speed
      3 seconds or less
      Scanning density

      Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi

      Max. original size
      A4 / Legal
      Fax features

      Network fax, duplex transmission and reception, polling transmission and reception

      Get More Information About Your Warranty Conditions.

      More details about Your Standard Warranty conditions coverage and details can be found here.

      Options and Consumables

      Paper Handling Options
      • Paper Handling Options
      • Consumables
      • Options

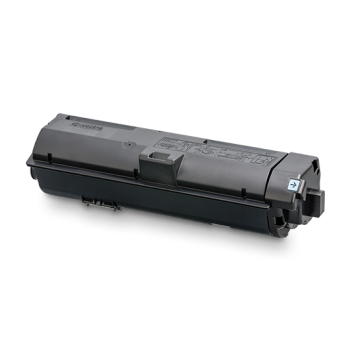

      TK-1150

      Average continuous toner yield in accordance with ISO/IEC 19752 Microfine toner for 3,000 pages A4. Capacity of starter toner is 1,000 pages A4
      CB-1100-B

      Wooden desk with storage capacity, including castors (wheels)
      KYOmulticode SD 3

      Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
      MD3-1024 (b)

      1,024 MB RAM Expansion
      PCL Barcode Flash 3.0 Type D/E

      Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).
      UG-33

      ThinPrint Kit: enables printing under ThinPrint
      USB_IC_CARDREADER

      Simplifies authentication on the system
