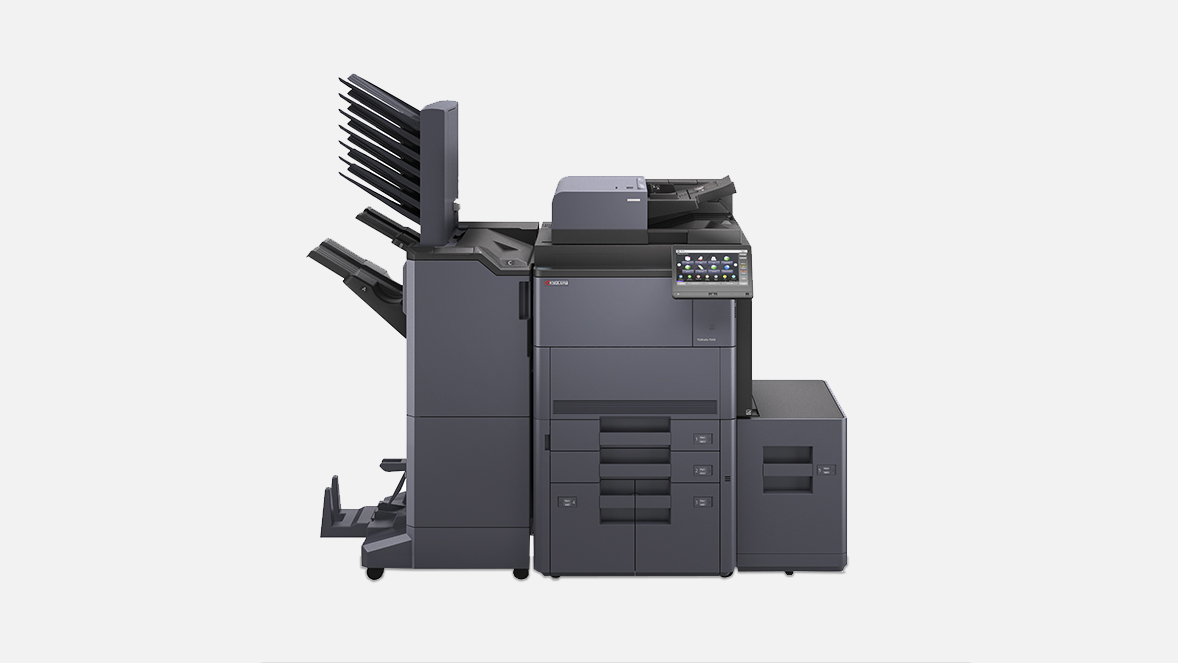

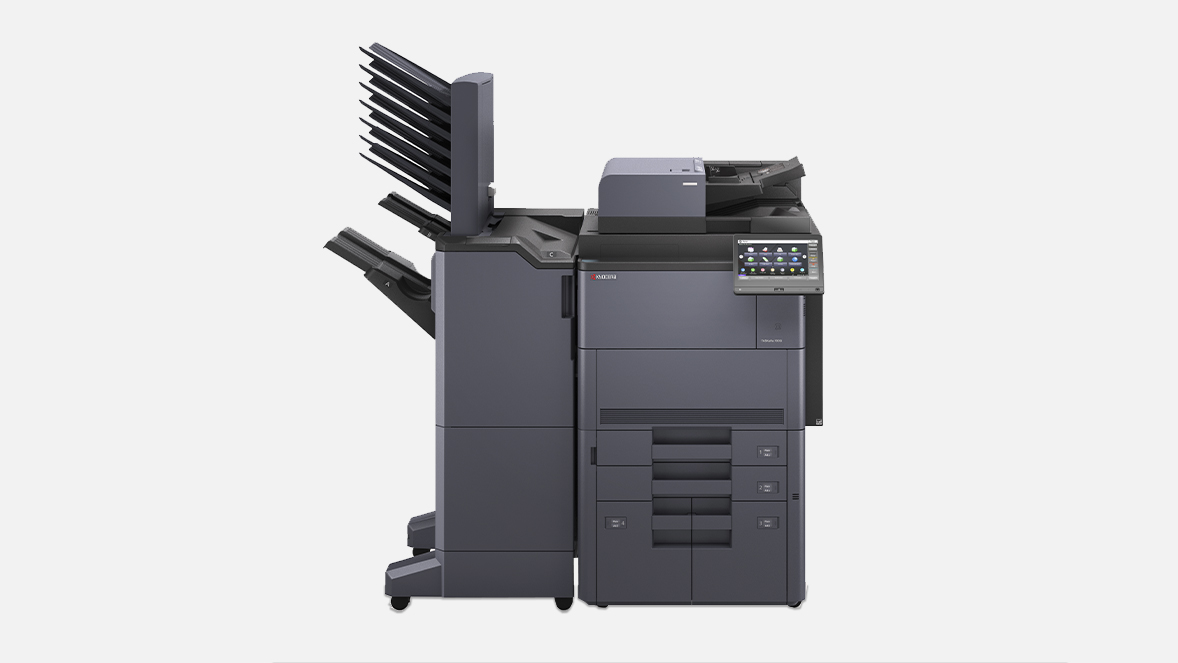

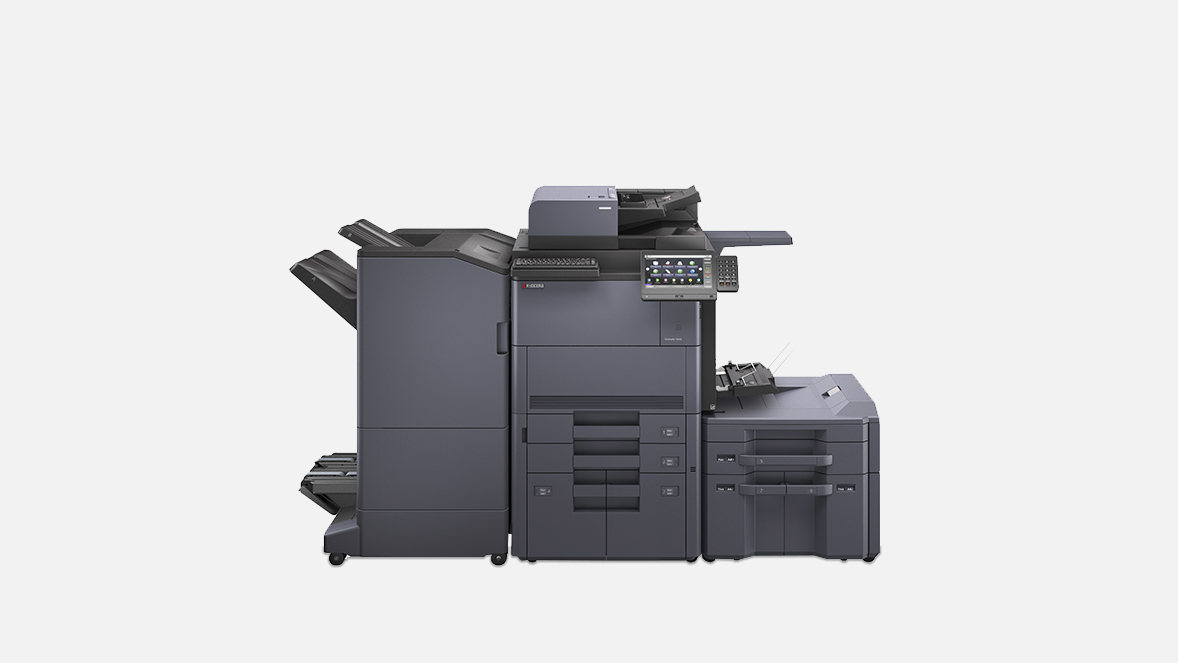

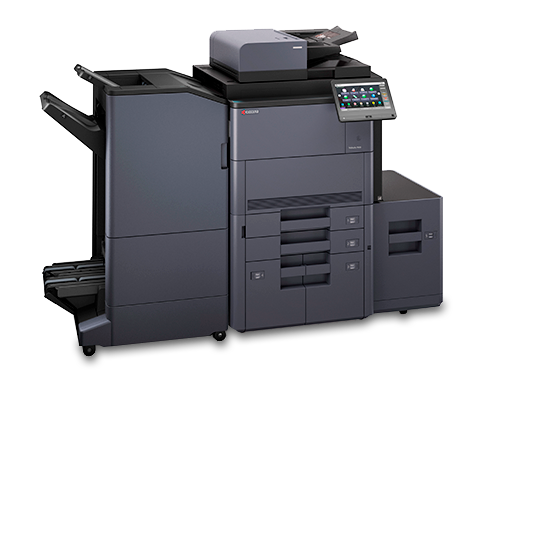

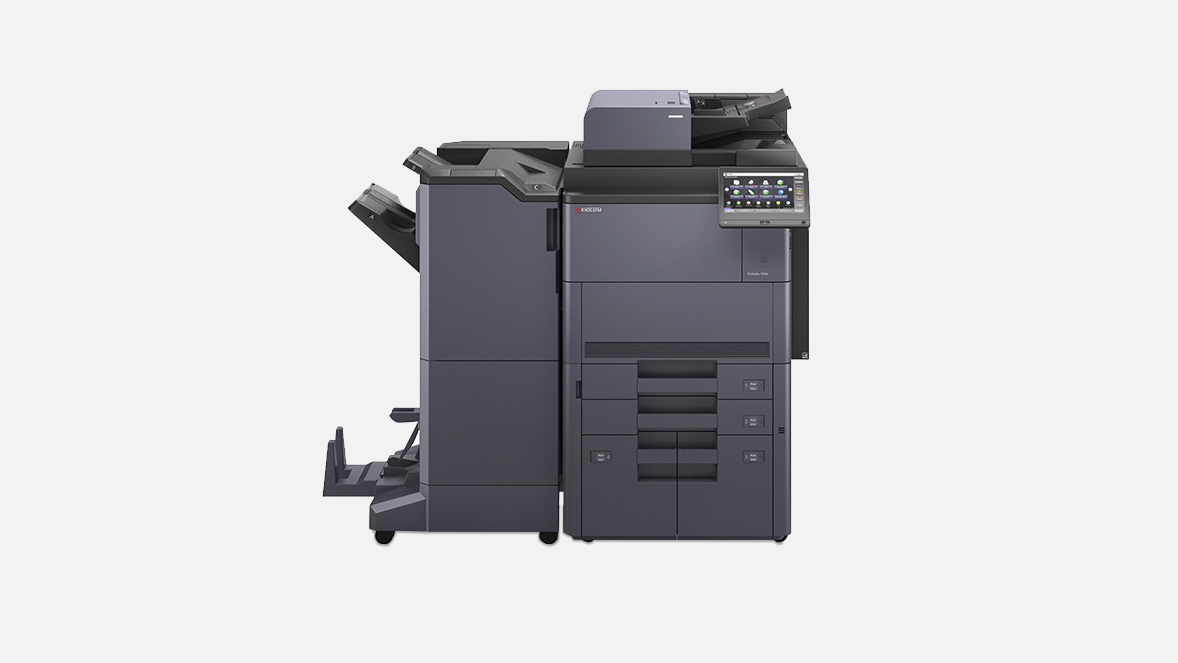

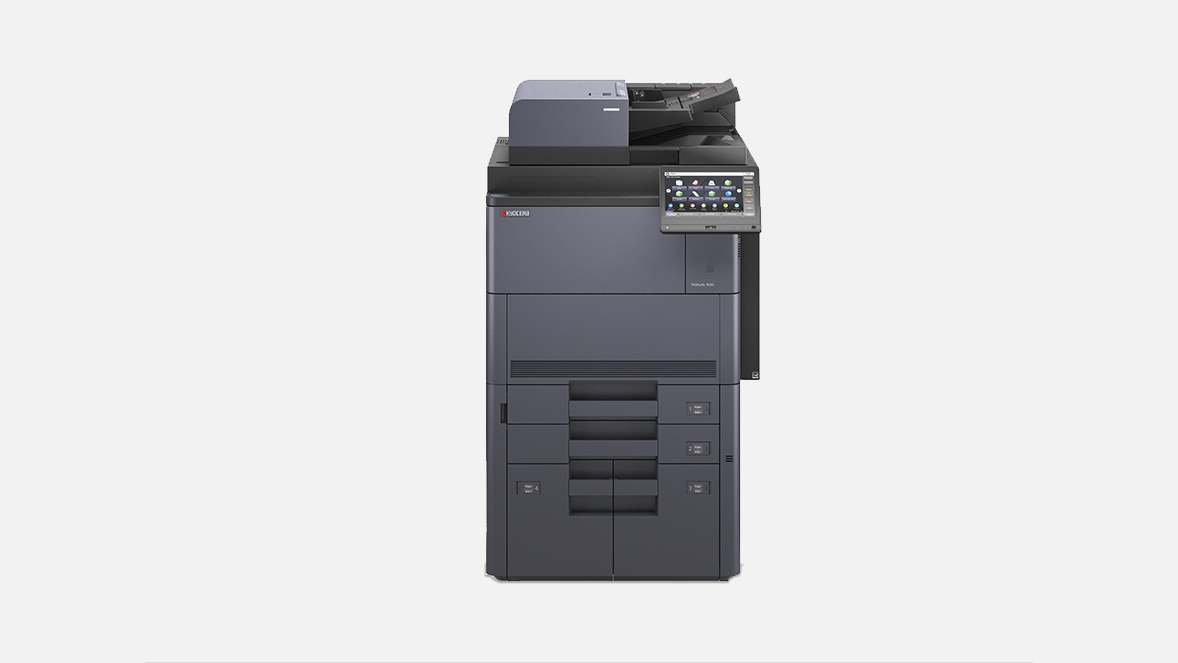

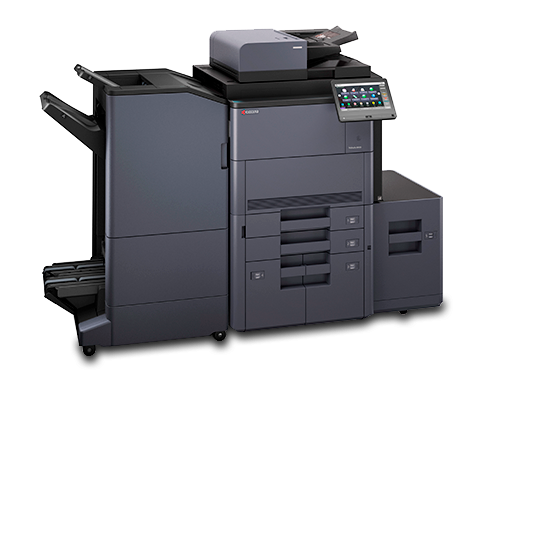

TASKalfa 7003i

The TASKalfa 7003i incorporates extremely durable components that guarantee efficient and reliable operation, to meet the demanding requirements of busy office environments. The TASKalfa 7003i provides effective productivity and maximum flexibility whilst ensuring minimum impact on the environment.

Outstanding image quality due to advanced imaging technology.
Efficient and reliable long-life components.
Professional finishing options like booklets and tri-folding.
Standard network, mobile printing and colour scanning.
Comprehensive security functions like an IC card reader.

Engine speed

Up to 70 pages A4 per minute Up to 35 pages A3 per minute Duplex print speed: 70 page per minute, A4

Resolution

1200 x 1200 dpi 600 x 600 dpi (scan/copy)

Scan speed

(A4, 300 dpi, Dual Scan) 220 images per minute (A4, 300 dpi, Simplex Scan) 120 images per minute

TASKalfa 7003i drivers
TASKalfa 7003i documentation
TASKalfa 7003i software

Main Specifications

General

General
Paper handling
Print
Copy
Scan
Fax

General type

Monochrome multifunctional for A3 format

Engine speed

Up to 70 pages A4 per minute Up to 35 pages A3 per minute Duplex print speed: 70 page per minute, A4

Warm-up time

Approx. 30 seconds or less

Power consumption

Printing: 1110 W, Stand-by: 100 W, Sleep-mode: 1.0 W

Input capacity

150-sheet multi-purpose tray, 60–300 g/m² (banner 136-165 g/m²), A6R–305 x 457 mm, banner max. 305 x 1,220 mm; 2 x 1,500-sheet high-capacity paper deck, 60-256g/m², A4, B5, 2 x 500-sheet universal paper cassette, 60–256 g/m², A5R–305 x 457 mm incl. custom paper sizes

Max. input capacity with options

7,650 sheets A4

Duplex unit

Duplex as standard supports A5R–305 x 457 mm, 60–256 g/m²

Max. output capacity

Standard job separator tray 70 sheets, optional copy tray (D): upper 100 sheets, lower 250 sheets; max. optional output capacity 4,300 sheets

Document processor

(one-path duplex scanning) 270 sheets; 35–220 g/m² (simplex), 50–220 g/m² (duplex); A6R – Banner up to 2.200 mm

Processor

NXP QorIQ T1024 (Dual Core) 1.4 GHz

Fonts

93 outline fonts (PCL), 136 fonts (KPDL3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes plus two-dimensional barcode (PDF-417)

Features

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPSec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality

Applicable OS

All current Windows operating systems, Mac OS X Version 10.8 or higher, UNIX, LINUX, as well as other operating systems on request.

Max. original size

Continuous copy

1-9,999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

5 Reductions/5 Enlargements

Image adjustments

Text + Photo, Photo, Text, Map, Printed document

Digital copy features

Scan-once-copy-many, electronic sort, 2in1, 4in1, image repeat, page numbering, cover mode. booklet copy, interrupt copy, form overlay, margin shift, auto cassette change, Skip blank page, ID card copy

Scan functionalities

Scan-to-email, Scan-to-FTP, Scan-to-SMB 3.0, Scan-to-USB Host, Scan-to-box, Network TWAIN, WSD scan (WIA Driver Network)

Scan speed

(A4, 300 dpi, Dual Scan) 220 images per minute (A4, 300 dpi, Simplex Scan) 120 images per minute

Scan features

Colour scan, Auto Colour Select, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip, Specified colour removal

Scan resolution

600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi

Max. scan size

A3, Banner up to 2.200 mm

File type

TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, OOXML (OCR)

Original recognition

Text, photo, text + photo, light text/fine line, optimised for OCR

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Transmission speed

Max. 3 seconds (JBIG)

Scanning density

Normal: 200 x 100 dpi Fine: 200 x 200 dpi Superfine: 200 x 400 dpi Ultrafine: 400 x 400 dpi 600 x 600 dpi

Max. original size

A3, Banner up to 1,600 mm

Fax features

Opt. Internet-fax, network faxing, rotate transmission, rotate reception, duplex fax reception, memory reception, mailbox, remote diagnostics, dual fax with second fax system 12
