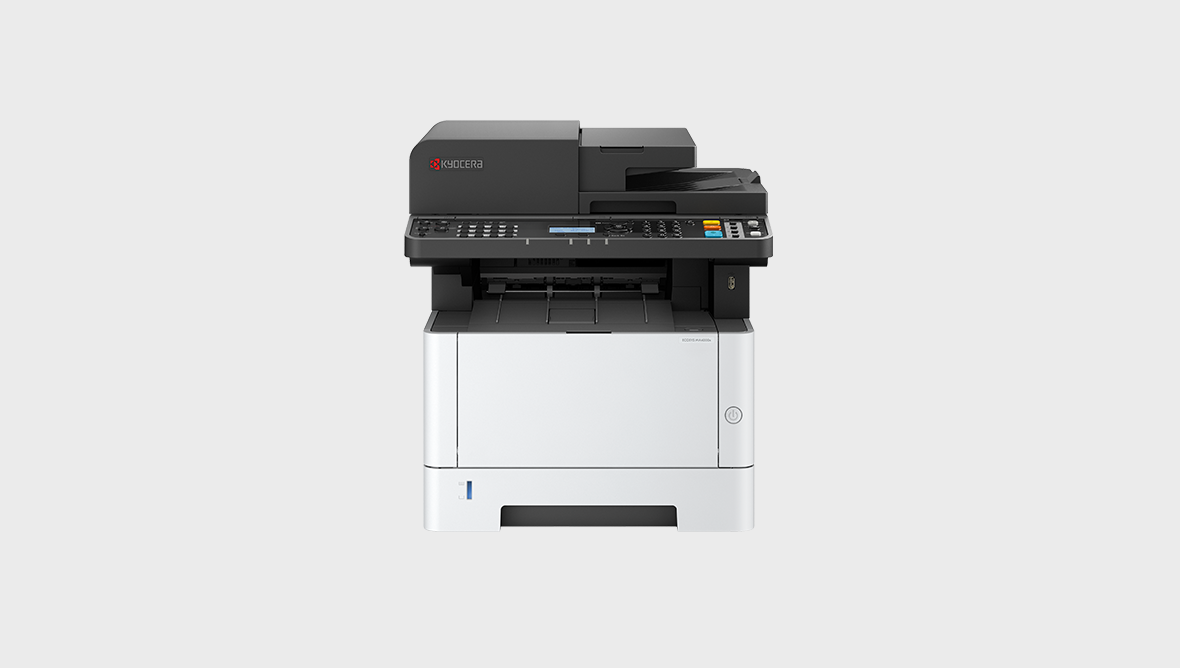

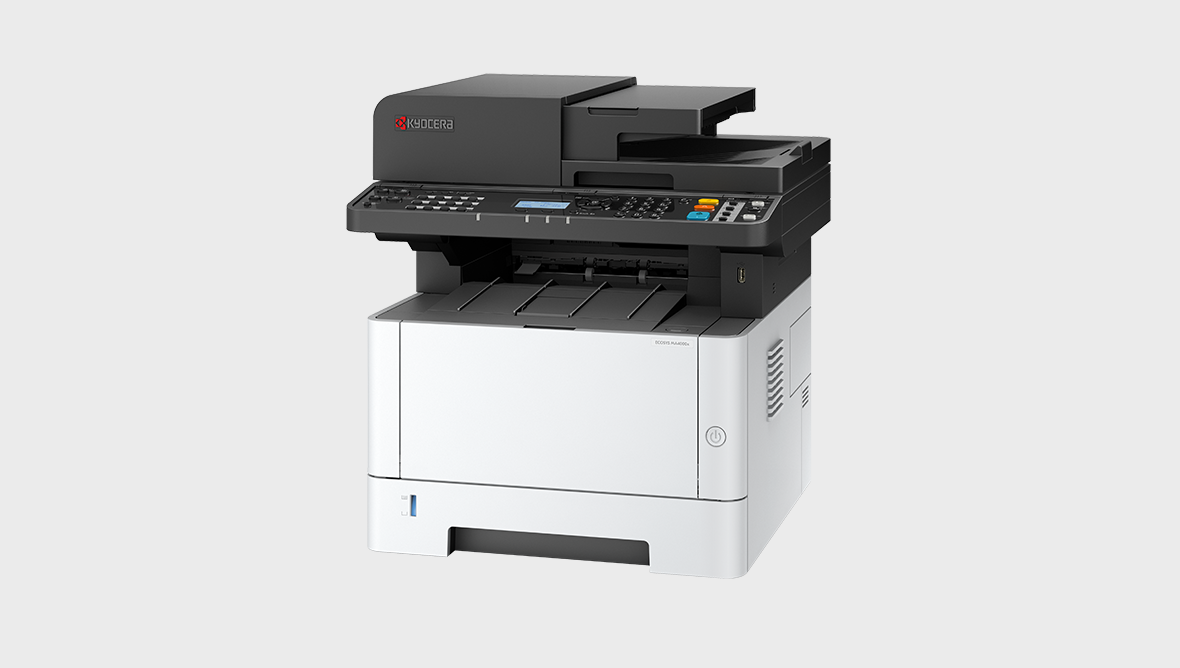

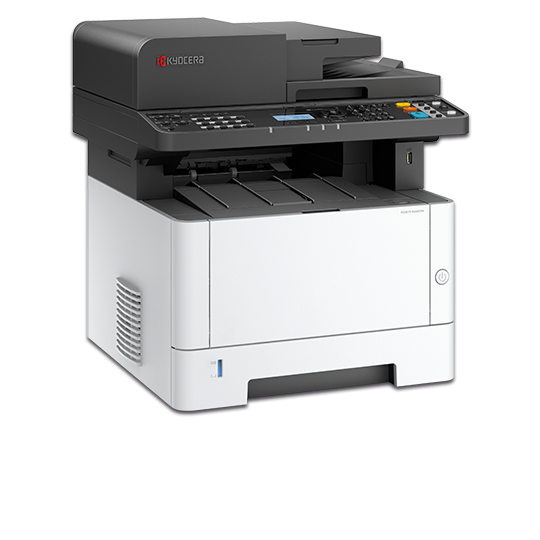

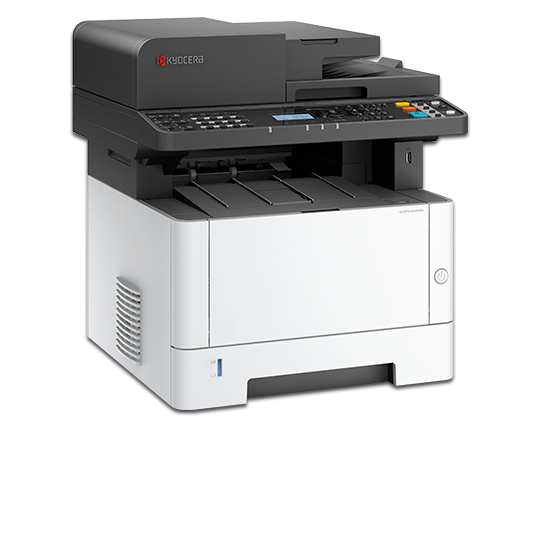

ECOSYS MA4000x

Built to last with long-life components, the robust and reliable ECOSYS MA4000x is the perfect fit for busy workplaces that rely on high uptime and fast, quality outputs. With a very short wait to first print or copy, users enjoy efficient printing for less.

Print, copy and colour scan with double-sided capability

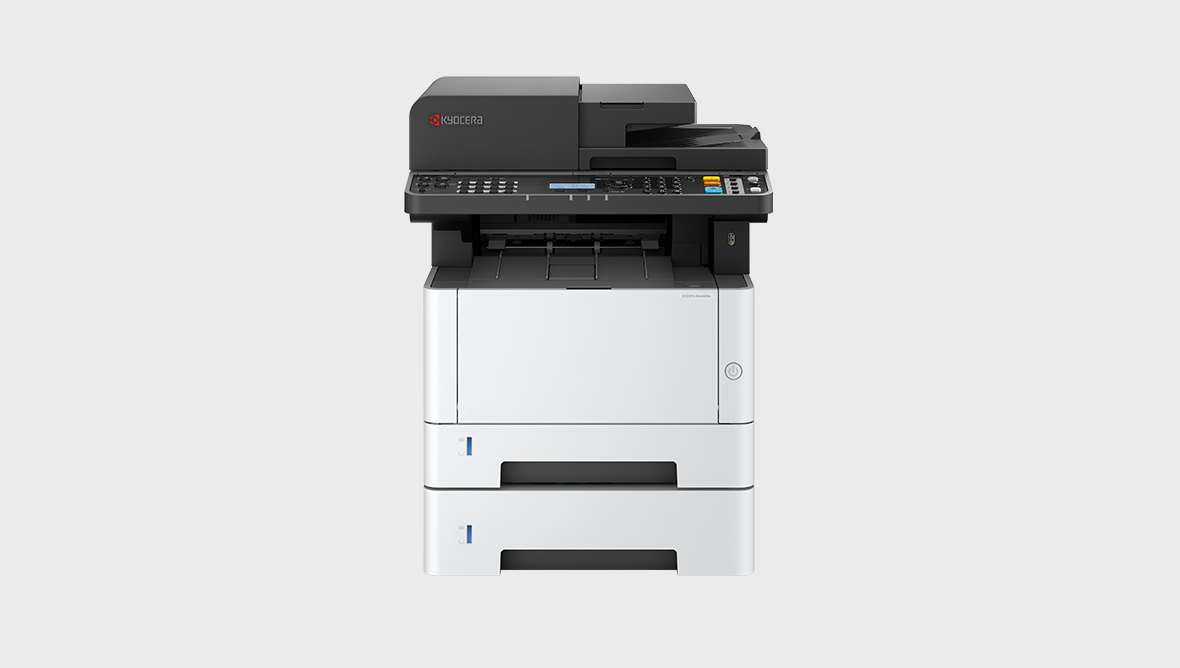

Up to 2 optional paper feeders for a total of 850 sheets
Safety of sensitive data with enhanced security features
Integration of personal cloud storage services
Compatible with Microsoft Universal Print for seamless printing

Engine speed

Up to 40 pages A4 per minute

Resolution

1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

Dimensions (W x D x H)

417 x 412 x 437 mm

Weight

Approx. 19 kg

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
A4 printer for all needs

KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A4 printer for all needs

High quality, high reliability and high efficiency are essential.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

ECOSYS MA4000x drivers
ECOSYS MA4000x documentation
ECOSYS MA4000x software

Main Specifications

General

General
Paper handling
Print
Copy
Scan

General type

Monochrome multifunctional for A4 format

Engine speed

Up to 40 pages A4 per minute

Warm-up time

Approx. 19 seconds or less from switching on

Power consumption

Copying/Printing: 574.4 W, Ready-mode: 10.8 W, Sleep-mode: 0.4 W

Warranty

1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 100,000 pages (whichever occurs sooner), provided each printer is used and cleaned in accordance with the service instructions.

Input capacity

100-sheet multi-purpose tray; 60 – 220 g/m²; A4, A5, A6, Custom (70 x 148 mm – 216 x 356 mm). 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, Custom (105 x 148 – 216 x 356 mm).

Max. input capacity with options

850 sheets

Duplex unit

Duplex functionality as standard. Double-sided printing: 60 – 163 g/m²; A4, A5, Custom (140 × 210 - 216 × 356 mm).

Max. output capacity

Max. 150 sheet face-down with paper full detection

Document processor

Dual scan document processor: 50-sheet; 50 – 160 g/m²; A4, A5, A6, Custom (100 x 148 – 216 x 356 mm).

Processor

1.0GHz

Fonts

93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 one-dimensional barcodes (e.g. EAN-8, EAN-13, EAN-128), as well as support for two-dimensional barcodes PDF417 under PRESCRIBE (PCL and other barcodes available an option)

Features

“Proof and hold”*, Job storage*, Quick copy*, Private print*, Data storage method with PIN code or password*, Internet printing IPP 1.0, E-mail printing, WSD Print, EcoPrint - toner save mode, AirPrint, Mopria, Microsoft Universal Print, Job batch output, Image Refinement, Pull print, VPSX, IPP PIN Print, Kyocera Cloud Access, optional Kyocera Cloud Print and Scan selected function integration. *Optional SD/SDHC memory card is required.

Applicable OS

All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, as well as other operating systems on request

Max. original size

A4 / Legal

Continuous copy

1 - 999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

7 Reductions / 5 Enlargements

Image adjustments

Text + Photo, Photo, Text, Chart/Map, Printed document

Digital copy features

Multiple copies from memory, electronic sorting, blank page skip, line skip, duplex copy, 2-in-1 and 4-in-1 function, split mode, DP auto-cropping, ID card copy supporting auto crop, folded corner detection, continuous scan, priority override, Eco Print (copy) - toner save mode, specific color removal, border erase, auto paper selection, manual and auto background density adjustment, manual and auto reduction / enlargement

Scan functionalities

Scan to Email, Scan to FTP, Scan to PC (SMB), TWAIN, WIA, WSD Scan, Scan to USB Host, Distributed File System (Windows 2012 server or later), eSCL support (AirPrint, Mopria Scan, Chrome OS)

Scan speed

40 ipm (300 dpi, A4, b/w, simplex), 23 ipm (300 dpi, A4, colour, simplex), 80 ipm (300 dpi, A4, b/w, duplex), 46 ipm (300 dpi, A4, colour, duplex)

Scan features

Active Directory support, LDAP over TLS, internal address book, Multi Sending - simultaneous sending to email, SMB and FTP, file separation, skip blank pages, line skip, folded corner detection, continuous scan, digital signature (PDF, Encrypted PDF), auto color select, scan resolution, specific color removal, border erase, manual density adjustment, saturation adjustment, text readability improvement, DP auto-cropping

Scan resolution

1,200 (with TWAIN and WIA driver), 600, 400, 300, 200 dpi

Max. scan size

A4 / Legal

File type

PDF, PDF/A-1, PDF/A-2, high compressed PDF, encrypted PDF, JPEG, TIFF, (Open) XPS

Original recognition

Text, photo, text + photo, light text/fine line, optimised for OCR

Options and Consumables

Paper handling Options

Paper handling Options
Consumables
Options

TK-1270
Microfine toner for 10,000 pages A4. Capacity of starter toner is 3,600 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752.

CB-1100-B
Wooden desk with storage capacity, including castors (wheels)

Card Authentication Kit (B)
Support for various authentication keys available

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

UG-50
Trusted Platform Module (TPM)
