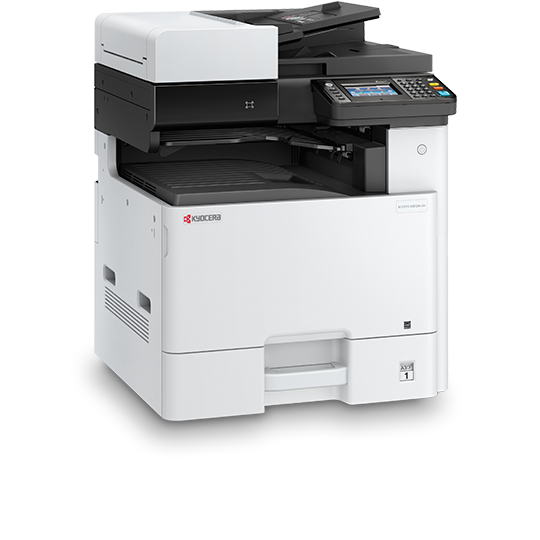

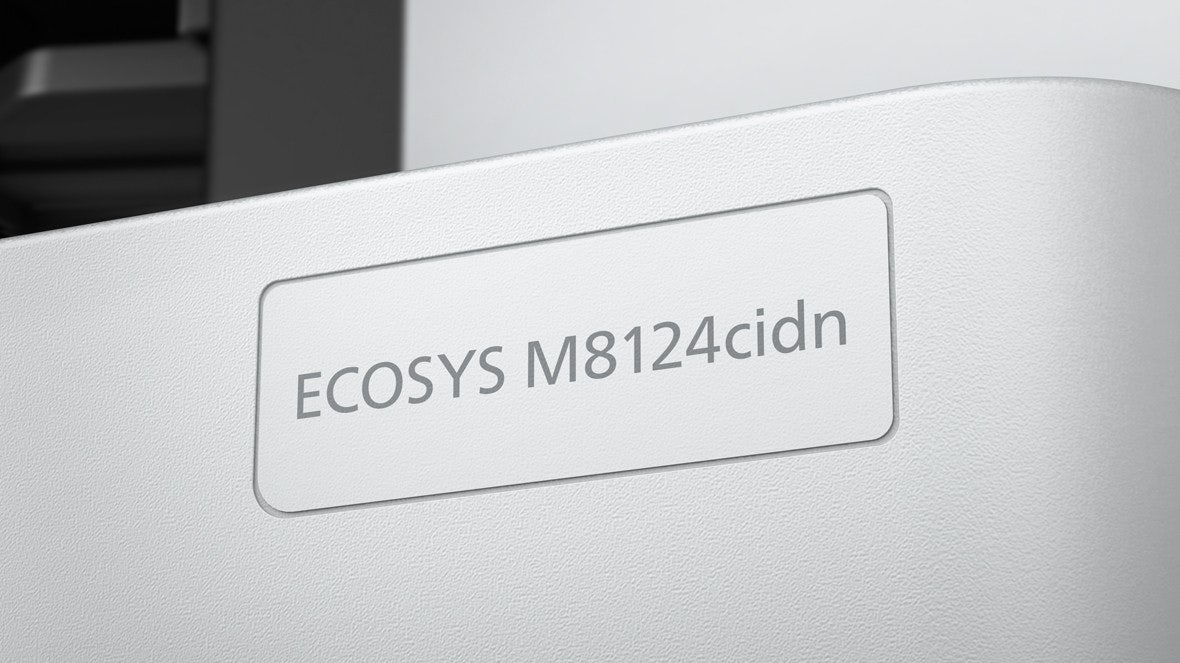

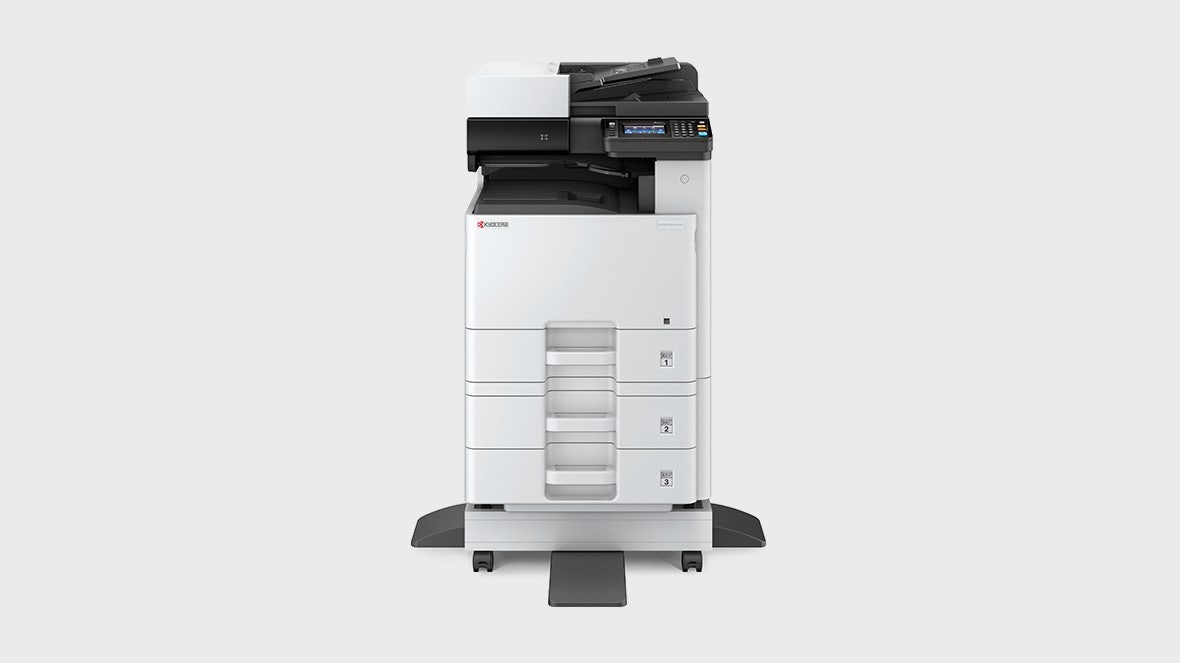

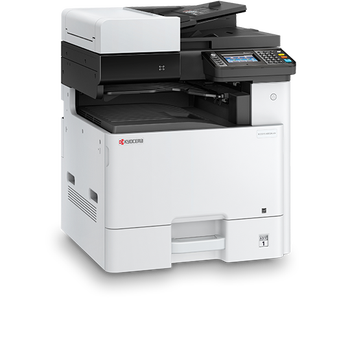

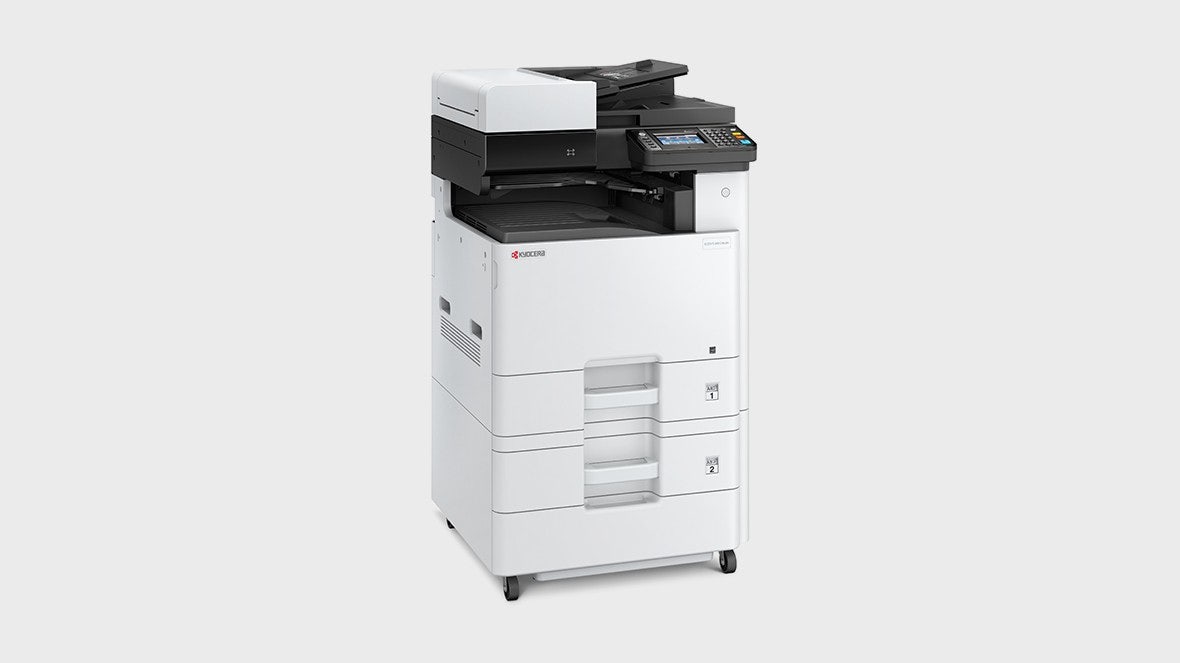

ECOSYS M8124cidn

An A4/A3 colour Multi-Functional Product with 24 page per minute productivity (in A4). It's ideal for small teams given the machine's functionality, usability and compact size.

  • Minimum installation and operation requirements.

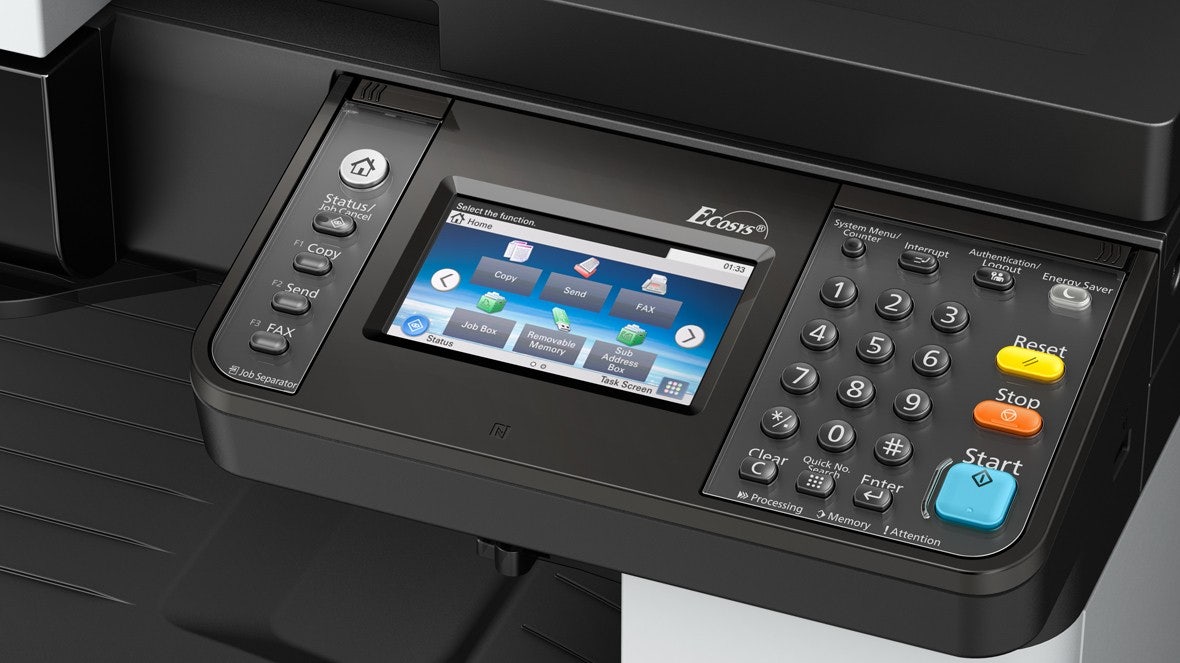

  • Easy to use full colour touch panel with wizard-style navigation.
  • Long-life components provide exceptional reliability.
  • HyPAS solution platform enables powerful customisations.
Engine speed

Up to 24/12 pages A4/A3 per minute in colour and b/w

Resolution

Printing: 1,200 x 1,200 dpi (reduced print speed), 600 x 600 dpi, MultiBit (9,600 x 600 dpi print quality), copying / scanning: 600 x 600 dpi

Dimensions (W x D x H)

590 x 590 x 753 mm (with standard Document processor)

Warranty

Additional warranty on long-life parts for 3 years or 200 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Multi-Functional Products for day-to-day tasks

    Multi-Functional Products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

    Multi-Functional Products for day-to-day tasks
    Multi-Functional Products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • A3 and A4 printers for all needs

    A3 and A4 printers for all needs

    KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

    A3 and A4 printers for all needs
    A3 and A4 printers for all needs

    High quality, high reliability and high efficiency are essential.

  • ECOSYS M8124cidn drivers
  • ECOSYS M8124cidn documentation
  • ECOSYS M8124cidn software

Main Specifications

General
  • General
  • Paper Handling
  • Print
  • Copy
  • Scan
  • Fax
General type
Colour multifunctional for A3 format
Engine speed
Up to 24/12 pages A4/A3 per minute in colour and b/w
Warm-up time
Approx. 30 seconds or less
Power consumption
Sleep-mode: 0.5 W, Stand-by: 70 W, Copying/Printing: 550 W
Warranty
1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Input capacity
100-sheet multi-purpose tray, 60–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm) 500-sheet standard universal paper cassette, 60–256 g/m², A3, A4, A5, B5, Ledger, Letter, Legal, Folio
Max. input capacity with options
1,600 sheets
Duplex unit
Standard duplex unit: 60–256 g/m²
Max. output capacity
Max. 280 sheets; 250 sheets face-down (Main Tray), plus 30 sheets (standard Job Separator Tray)
Document processor
Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)
Processor
ARM Cortex-A9 Dual core1.2 GHz
Fonts
101 outline fonts (PCL 6, KPDL3, Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode PDF417 under PRESCRIBE (PCL and other barcodes available as options)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Applicable OS
All current Windows operating systems, Mac OS X Version 10.5 or higher, UNIX LINUX , as well as other operating systems on request.
Max. original size
A3/Ledger
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
5 Reductions / 5 Enlargements
Image adjustments
Text, photo, text + photo, Map, Printed document
Digital copy features
Scan-once-copy-many, sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip blank page
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan-to-USB Host, Network TWAIN, WIA, WSD scan
Scan speed
b/w: 50 ipm (300 dpi, A4), Colour: 50 ipm (300 dpi, A4)
Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
200, 300, 400, 600 dpi (256 greyscales per colour)
Max. scan size
A3/Ledger
File type
PDF, PDF/A, JPG, TIFF, XPS, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF High Compresson PDF
Original recognition
Text, photo, text + photo, light text, optimised for OCR
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 second or less
Transmission speed
Max. 33.6 kbps
Scanning density
Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
Max. original size
A3/Ledger
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Paper Handling Options
  • Paper Handling Options
  • Consumables
  • Options

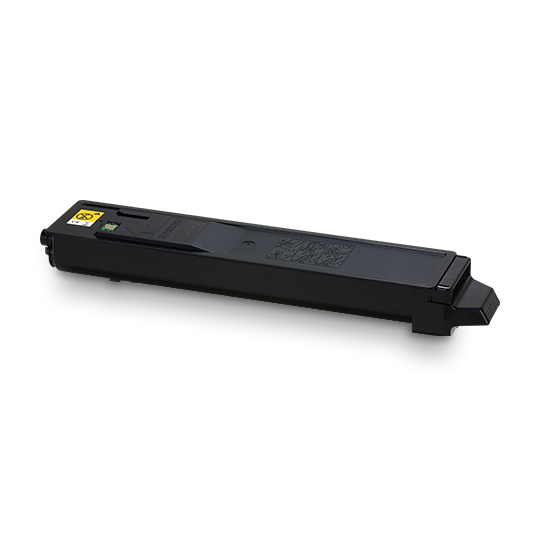

TK-8115K
Microfine toner black for 12000 pages A4, Capacity of starter toner is black 3,000 pages, Average continuous toner yield in accordance with ISO/IEC 19798.

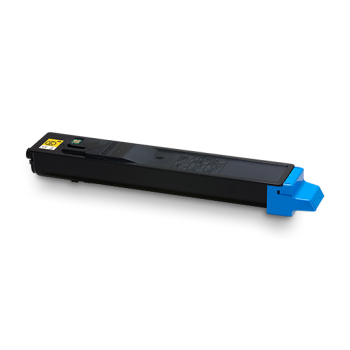

TK-8115C
Microfine toner cyan for 6000 A4 Capacity of starter toner is cyan 1,500 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

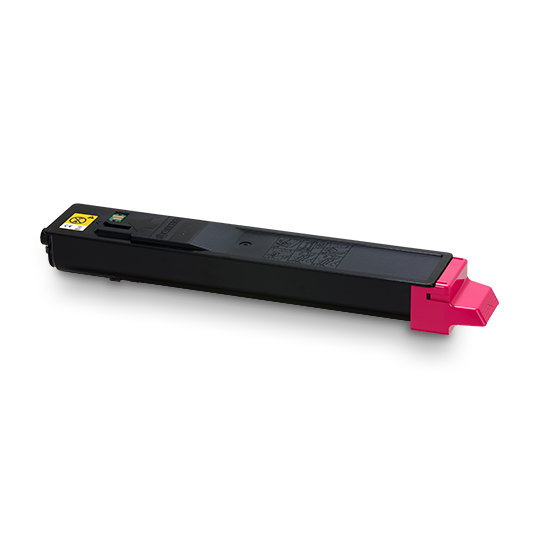

TK-8115M
Microfine toner magenta for 6000 A4 pages/ Capacity of starter toner is magenta 1,500 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

TK-8115Y
Microfine toner yellow for 6000 pages in accordance with ISO/IEC 19798 Capacity of starter toner is yellow 1,500 pages in accordance with ISO/IEC 19798. Average continuous toner yield in accordance with ISO/IEC 19798.

Fax System 13
Super G3 Fax, network fax

MD3-1024
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

HD-6
32 GB for easy document management

HD-7
128 GB SSD hard disc for easy document management

Data Security Kit (E) AC
In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

Card Authentication Kit (B)
Support for various authentication keys available

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

UG-33
ThinPrint support

CB-470
Wooden cabinet

CB-472
Metal cabinet

KYOCERA Life 3 years
Warranty extension 3 years on-site

KYOCERA Life 4 years
Warranty extension 4 years on-site

KYOCERA Life 5 years
Warranty extension 5 years on-site
