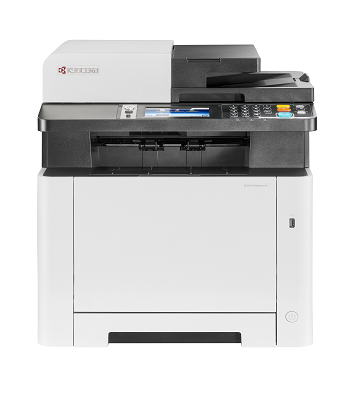

ECOSYS M5526cdw

This entry-professional top device of the ECOSYS series combines the best colour quality with the lowest running costs and it will ease workflows.

  • Double-sided print, copy, scan and fax.
  • 4.3 inch touch screen for easy operation.
  • Quick scanning with Single Pass Duplex scanning.
  • Exceptionally low printing costs in its class.
Engine speed

Up to 26 pages A4 per minute in colour and b/w

Resolution

1,200 x 1,200 dpi print at reduced speed, multibit technology for print quality of up to 9,600 x 600 dpi (print), 600 x 600 dpi, 256 greyscales per colour (scan/copy)

Dimensions (W x D x H)

417 x 429 x 495 mm

Warranty

Additional warranty on long-life parts for 3 years or 100 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • ECOSYS: New 3in1 Product introduction

    Do you require colour printing without fax? Discover more about the latest products.

  • woman smiling in meeting

    A3 and A4 printers for all needs

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    A3 and A4 printers for all needs
    A3 and A4 printers for all needs

    High quality, high reliability and high efficiency are essential.

  • hands holding a plant in soil

    ECOSYS: The sustainable solution

    KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS M5526cdw drivers
  • ECOSYS M5526cdw documentation
  • ECOSYS M5526cdw software

Main Specifications

General
  • General
  • Paper Handling
  • Print
  • Copy
  • Scan
  • Fax
mfp-540x540-angled-ecosysM5526cdw_WITH-GESTURE
General type
Colour multifunctional for A4 format
Engine speed
Up to 26 pages A4 per minute in colour and b/w
Warm-up time
Approx. 29 seconds or less
Power consumption
Cpy / Print (b/w / colour): 375 W, Ready mode: 41 W, Sleep-mode: 1 W
Warranty
1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 100,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
Input capacity
50-sheet multi-purpose tray; 60–220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm–216 x 356 mm) 250-sheet universal cassette; 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148–216 x 356 mm)
Max. input capacity with options
550 sheets
Duplex unit
Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal
Max. output capacity
150 sheets face-down with paper full detection
Document processor
Dual scan document processor: 50-sheet, 50–160 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
Processor
Coretex-A9 / 800 MHz
Fonts
93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Applicable OS
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Max. original size
A4/legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Map, Printed document
Digital copy features
Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, auto duplex copy, continuous scan, auto cassette change, copy density control
Scan functionalities
Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
Scan speed
30 ipm (300 dpi, A4, b/w, simplex), 23 ipm (300 dpi, A4, colour, simplex)
Scan features
Integrated address book, Active directory support, encrypted data transfer, Blank sheet skip
Scan resolution
600, 400, 300, 200 dpi (256 grey scales per colour)
Max. scan size
A4 / legal
File type
TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS
Original recognition
Text + Photo, Photo, Text, Light Text, Text (for OCR)
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2 seconds /sheet or less
Transmission speed
3 seconds or less
Scanning density
Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi
Max. original size
A4 / legal
Fax features
Network fax, duplex transmission and reception, polling transmission and reception

Options and Consumables

Paper Handling Options
  • Paper Handling Options
  • Consumables
  • Options

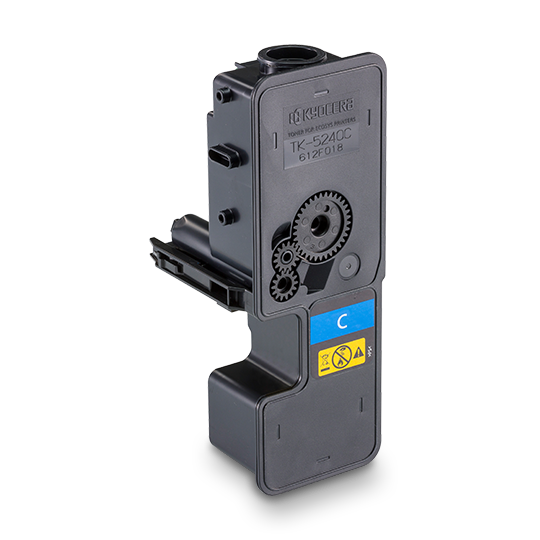

TK-5240C
Average continuous cyan toner yield 3,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,200 pages in accordance with ISO /IEC 19798.

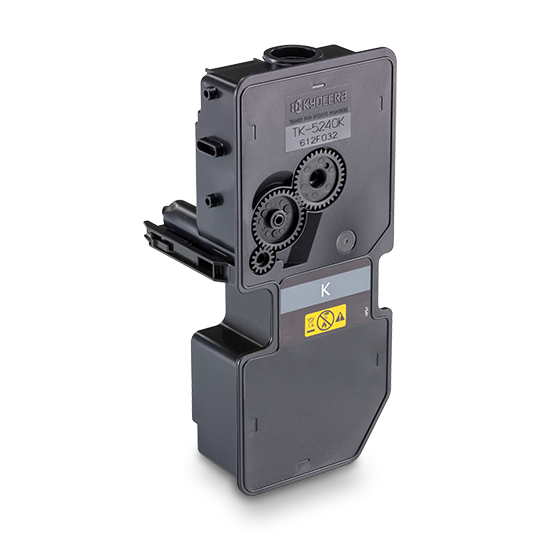

TK-5240K
Average continuous black toner yield 4,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,200 pages in accordance with ISO /IEC 19798.

TK-5240M
Average continuous magenta toner yield 3,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,200 pages in accordance with ISO /IEC 19798.

TK-5240Y
Average continuous yellow toner yield 3,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,200 pages in accordance with ISO /IEC 19798.

CB-510-B
Cabinet

KYOCERA Life 3 years
Warranty extension 3 years on-site

KYOCERA Life 4 years
Warranty extension 4 years on-site

KYOCERA Life 5 years
Warranty extension 5 years on-site

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MM3-1GB (b)
1,024 MB RAM Expansion

MM3-512MB (b)
512 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Find the perfect match

Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.

Never run out of toner again

With Amazon's Dash Replenishment Service, the ECOSYS M5526cdw orders its own toner as soon as it's running low.

Related products

Kyocera solutions to resolve all business needs.

  • TK-5240K

    Black toner yield 4,000 pages in accordance with ISO /IEC 19798.

  • TK-5240C

    Cyan toner yield 3,000 pages in accordance with ISO /IEC 19798.

  • TK-5240M

    Magenta toner yield 3,000 pages in accordance with ISO /IEC 19798.
