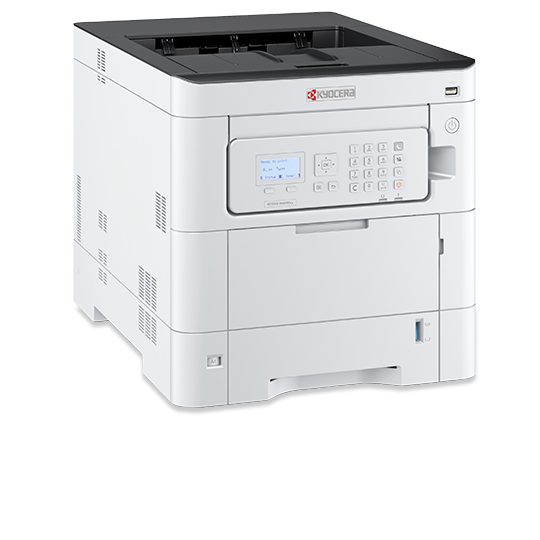

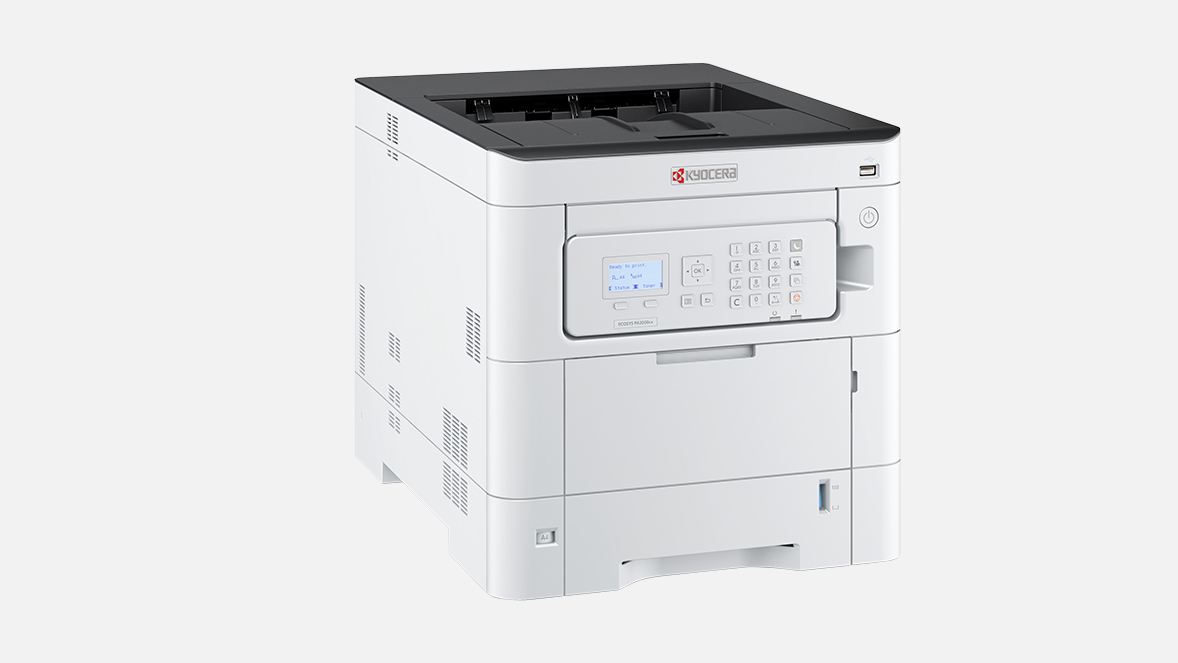

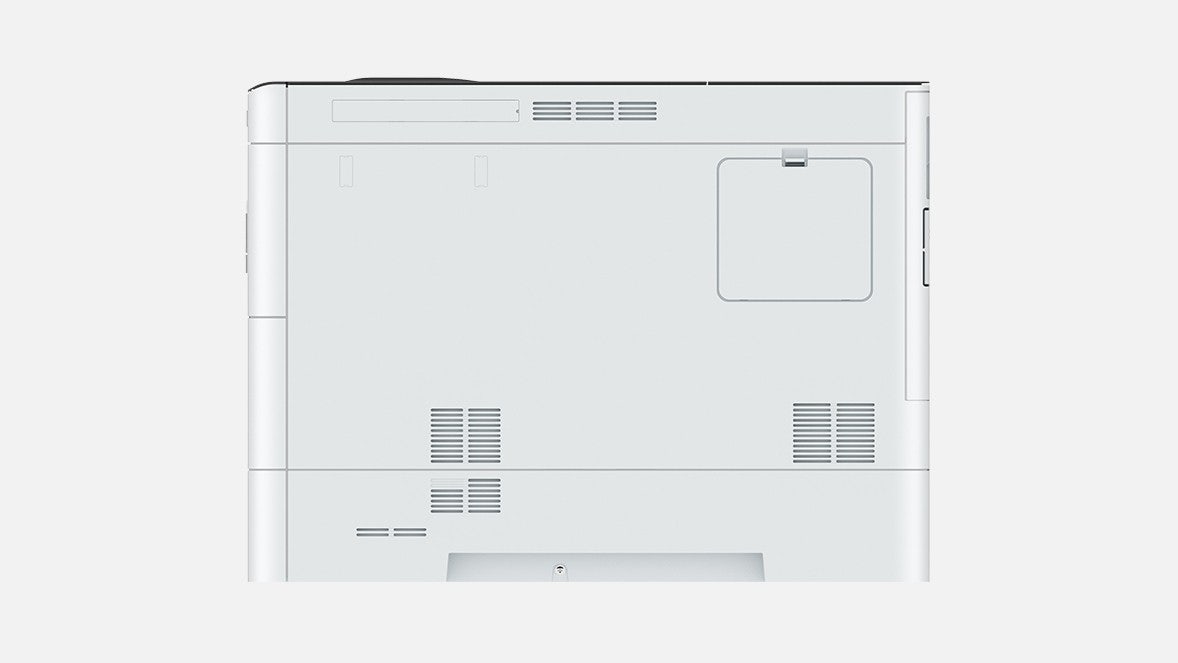

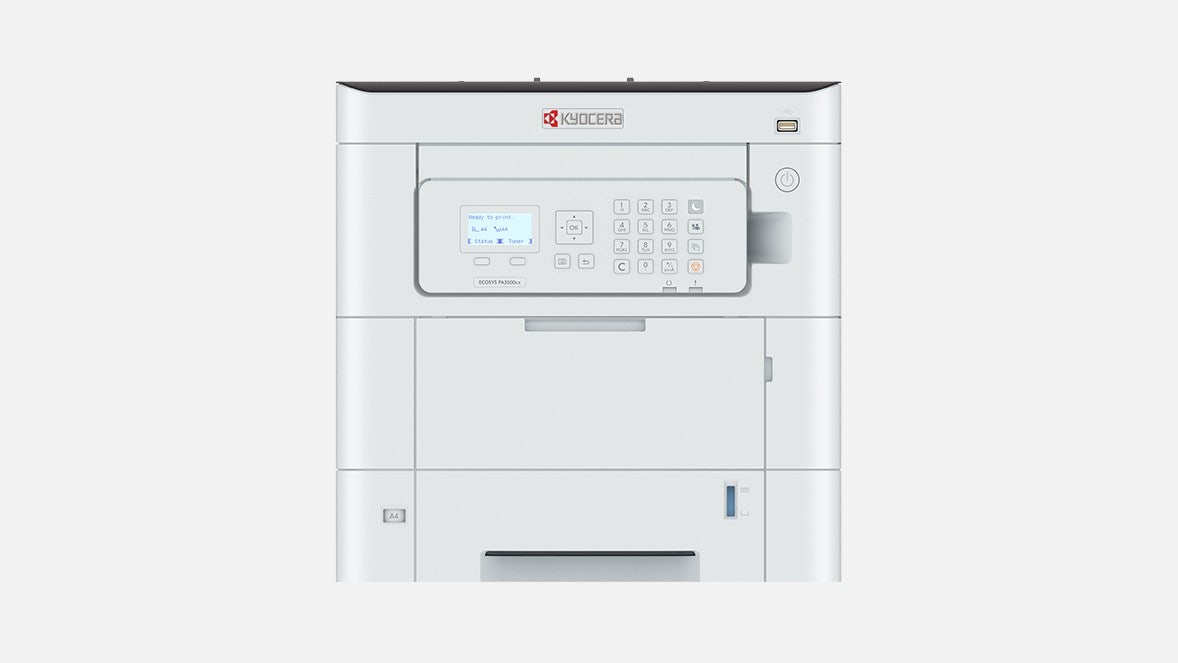

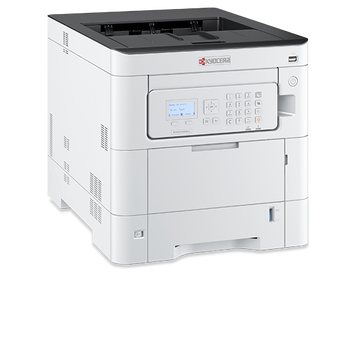

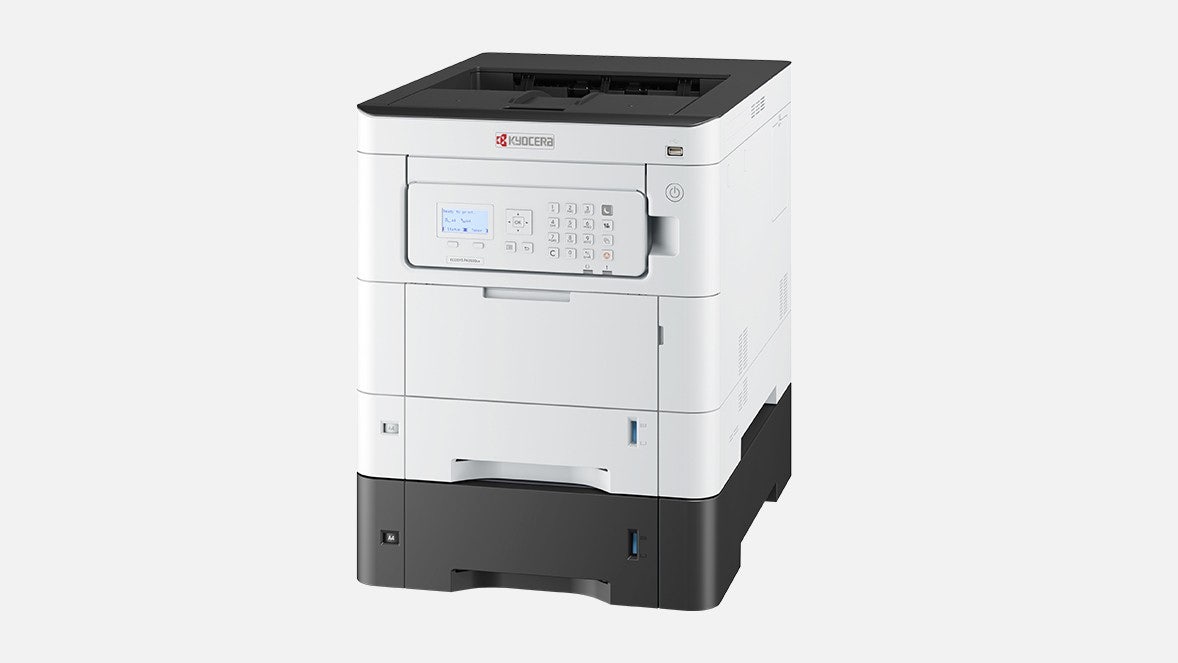

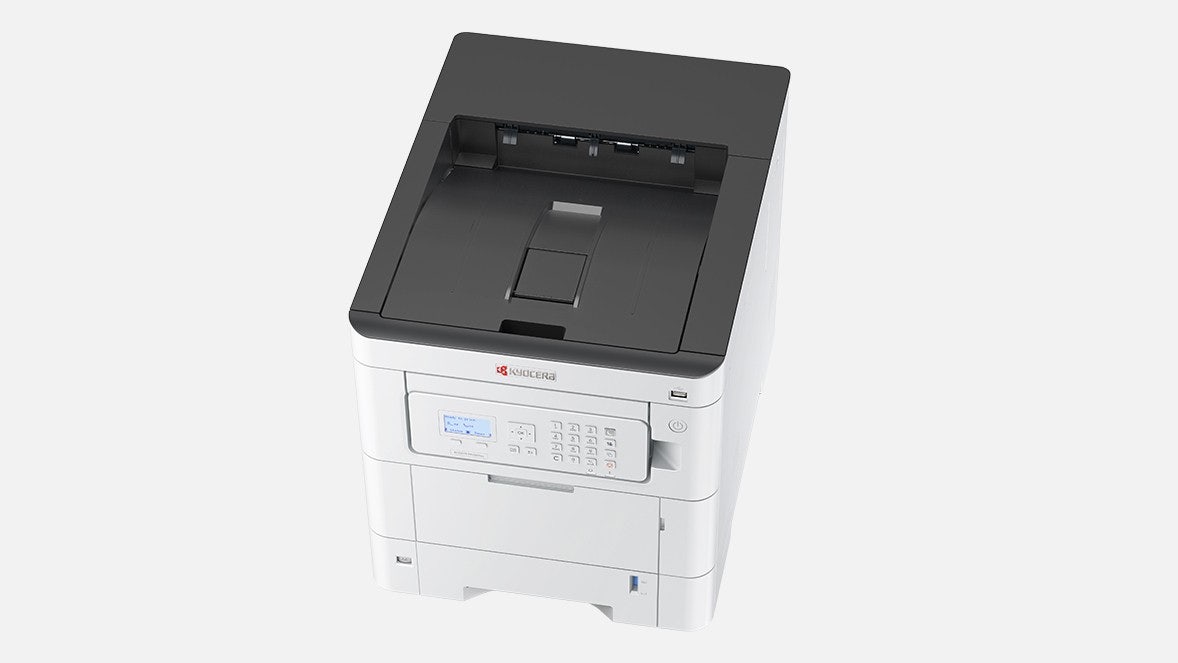

ECOSYS PA3500cx

Made for medium to large-size work groups, this A4 colour device is integrated with Kyocera long-life components that help to reduce waste and ensure exceptional levels of reliability.

Double-sided print.
Data overwrite and encryption, Trusted Platform Module, S/MIME and TLS 1.3
Compact design with full functionality.
Strenghen affinity with Microsoft Universal Print
Exceptional low waiting time to get your first page out
Low running costs and high productivity

Engine speed

Up to 35 pages per minute in A4 in colour and b/w; duplex print speed: 17.5 page per minute A4

Resolution

1200 x 1200 dpi (print, at reduced speed)

Dimensions (W x D x H)

394 × 531.5 × 392.5 mm

Warranty

1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
A4 printer for all needs

KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A4 printer for all needs

High quality, high reliability and high efficiency are essential.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

ECOSYS PA3500cx drivers
ECOSYS PA3500cx documentation
ECOSYS PA3500cx software

Better environment for tomorrow

Main Specifications

General

General
Paper handling
Print

General type

Colour printer for A4 format

Engine speed

Up to 35 pages per minute in A4 in colour and b/w; duplex print speed: 17.5 page per minute A4

Warm-up time

Approx. 23 seconds or less from power on

Power consumption

Printing: 466 W, Ready mode: 56 W, Sleep-mode: 0.6 W

Warranty

Input capacity

100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 500-sheet Standard universal paper cassette, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm).Max. input capacity with options: 2,100 sheets A4

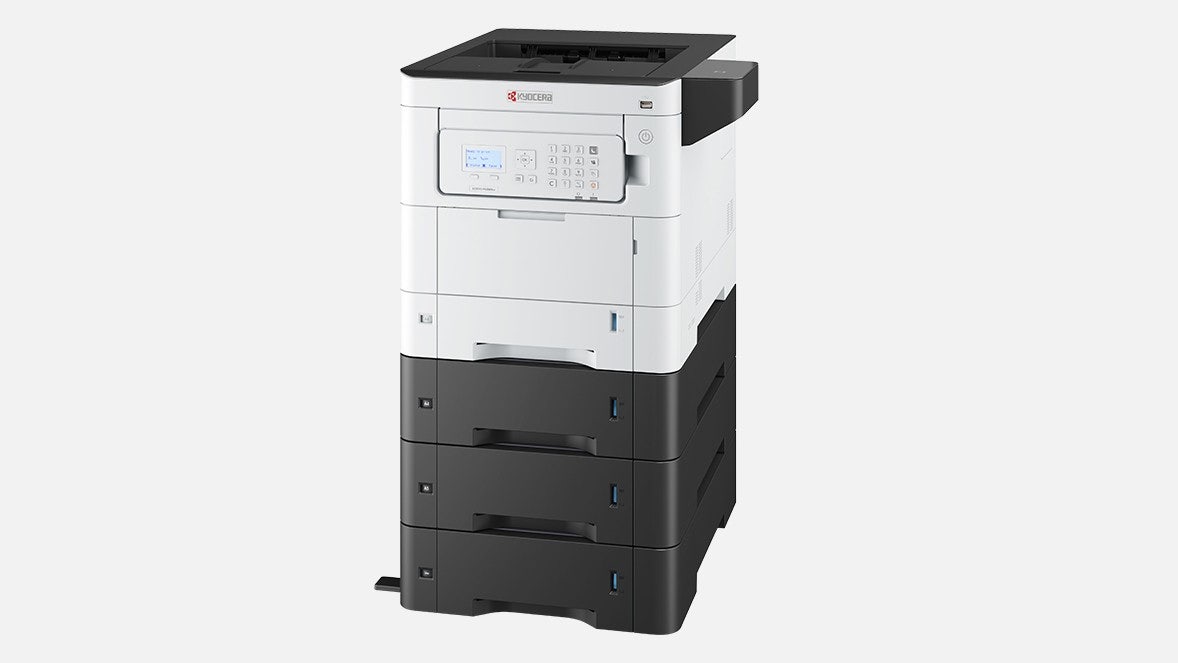

Max. input capacity with options

2,510 sheets with 64 g/m2

Duplex unit

Standard duplex unit: 60–163 g/m² (A4, A5, B5, Letter, Legal)

Max. output capacity

250-sheet face-down with paper full sensor

Processor

ARM Cortex-A9 D.core 1,2GHz + ARMCortex-M3 100MHz

Fonts

93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality

Applicable OS

All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

Options and Consumables

Paper handling Options

Paper handling Options
Consumables
Options

TK-5370C
Average continuous cyan toner yield 5,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 2,500 pages in accordance with ISO /IEC 19798.

TK-5370K
Average continuous black toner yield 7,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous black toner yield 3,500 pages in accordance with ISO /IEC 19798.

TK-5370M
Average continuous magenta toner yield 5,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 2,500 pages in accordance with ISO /IEC 19798.

TK-5370Y
Average continuous yellow toner yield 5,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 2,500 pages in accordance with ISO /IEC 19798.

CB-5150B
Wooden cabinet

CB-5150H
Wooden cabinet

CB-5150L
Wooden cabinet

CB-5150S
Metal cabinet

HD-17
64 GB for easy document management

HD-18
256 GB SSD hard disc for easy document management

HD-19
512 GB SSD hard disc for easy document management

IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)

IB-38
Wireless Network Interface (USB: 2.4GHz)

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
