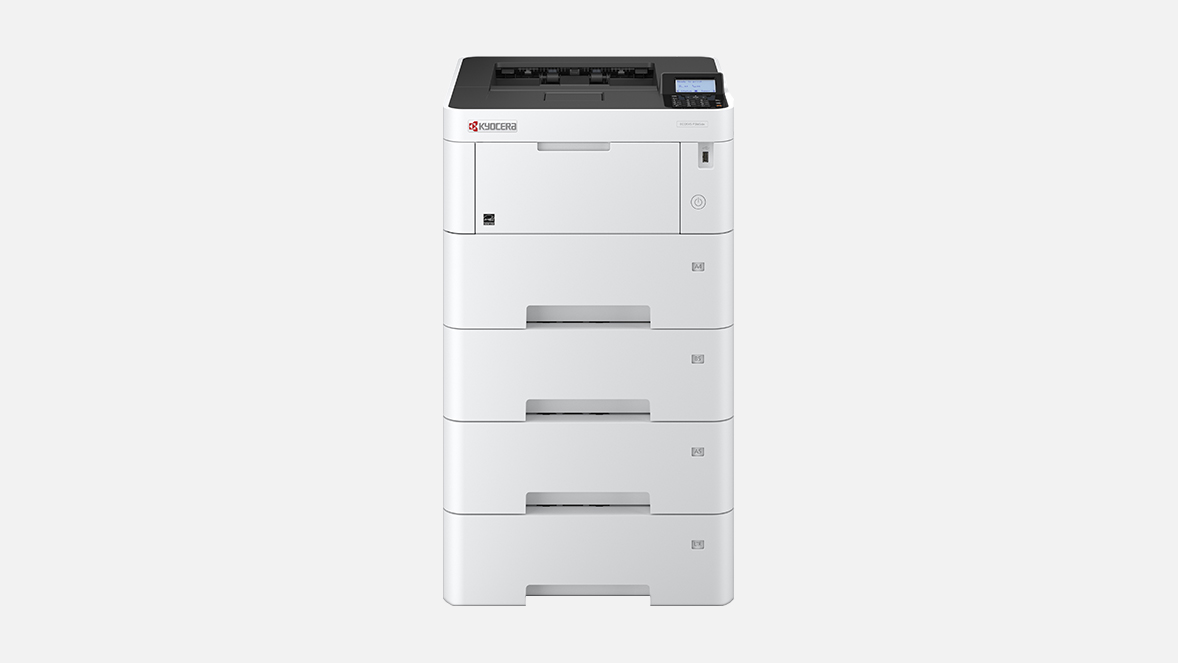

ECOSYS P3145dn

Highly productive and compact monochrome printer aimed at teams and workgroups. High speed of 45 pages per minute and a time to first print of only 5.3 seconds.

  • Double-sided print
  • Long-life components, low energy consumption
  • Gigabit LAN, Wi-Fi option with Wi-Fi Direct available
  • Optional SSD hard disk with data security kit
Engine speed

Up to 45 pages A4 per minute Duplex print speed: up to 22.5 page per minute in A4

Resolution

1200 x 1200 dpi

Time to first print

Approx. 5.3 seconds or less

Warranty

Additional warranty on long-life parts for 3 years or 300 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Driving efficiency through sustainability

    The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.

  • Powerful, reliable and economical

    Powerful, reliable and economical

    Whether on your desktop of in office production – be it in colour or black and white: with KYOCERA, you always achieve the best possible print quality while easily controlling your output costs.  KYOCERA devices and their components have been designed to be extremely reliable and highly economical.

    Powerful, reliable and economical
    Powerful, reliable and economical

    For a printer that can be trusted to produce the goods whenever required.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

Main Specifications

  • General
  • Paper handling
  • Print
General type
A4 Monochrome printer FOR A4 FORMAT
Engine speed
Up to 45 pages A4 per minute Duplex print speed: up to 22.5 page per minute in A4
Warm-up time
Approx. 16 seconds or less from power on
Power consumption
Print - mode: 594 W Sleep mode: 0.5 Wh Ready - mode: 10 Wh
Warranty
1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.
Input capacity
100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: : 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)
Max. input capacity with options
2,600 sheets
Duplex unit
Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2
Max. output capacity
Standard: 250 sheets Face down Special paper: comply with the settable no. of pcs.: face down. Comply with the settable no. of sheets ÷2: face up.
Processor
1.2 GHz
Fonts
93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Engrypted PDF Direct Print
Applicable OS
All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request

Options and Consumables

  • Paper Handling Options
  • Consumables
  • Options

TK-3160
Microfine toner for 12,500 pages A4. Capacity of starter toner is 6000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752

IB-32B
Parallel IEEE1284 interface kit

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

HD-6
32 GB SSD hard disc for easy document management

HD-7
128 GB SSD hard disc for easy document management

MD3-1024
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

UG-33
ThinPrint support

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Card Authentication Kit (B)
Support for various authentication keys available

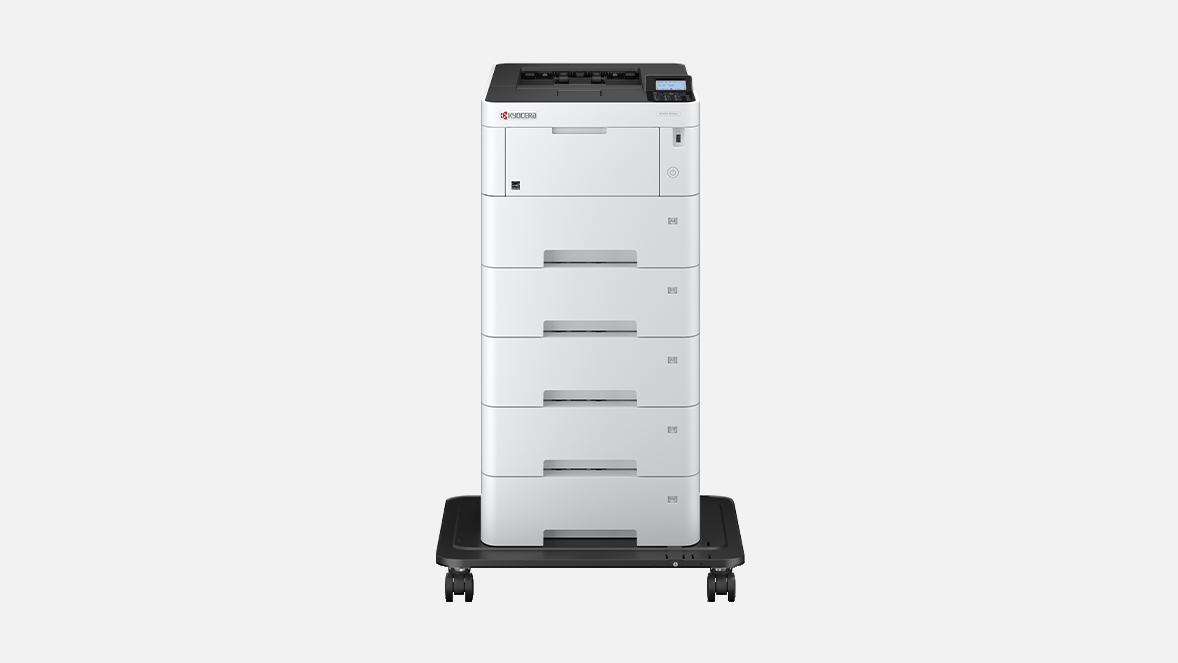

CA-3100
Caster stand

  • ECOSYS P3145dn drivers
  • ECOSYS P3145dn documentation
  • ECOSYS P3145dn software
