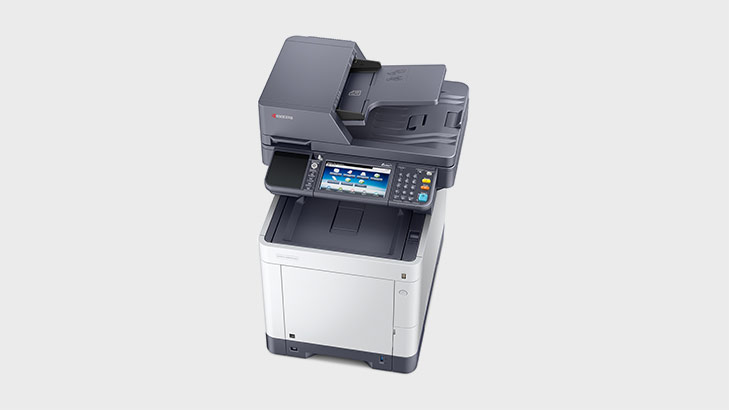

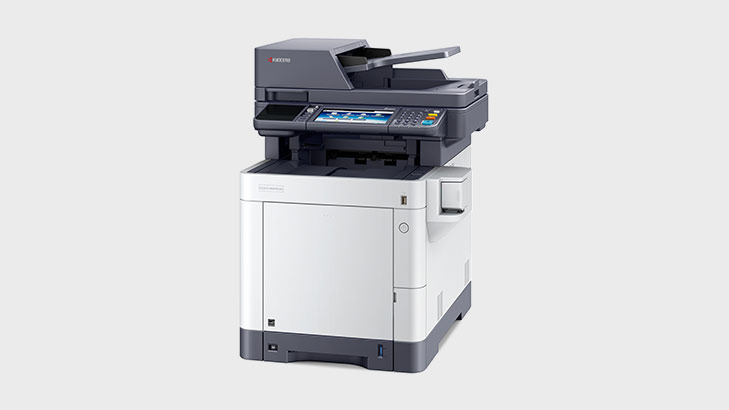

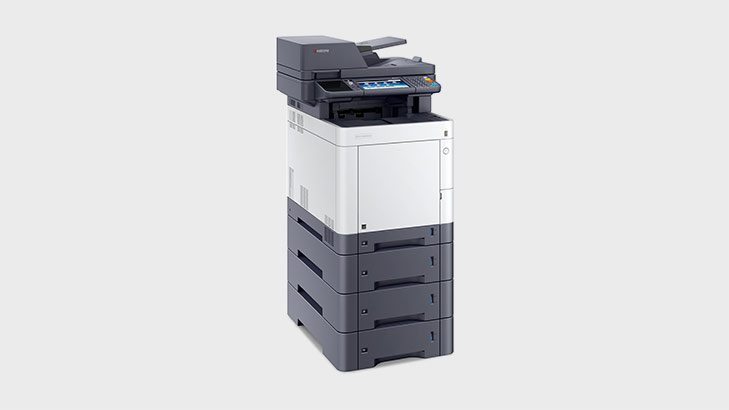

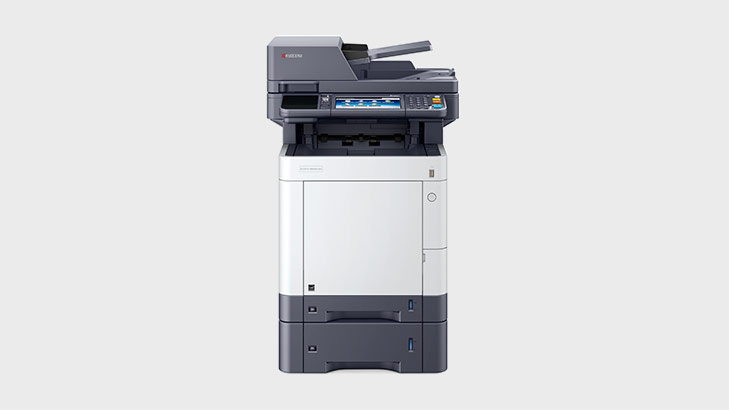

ECOSYS M6630cidn

This A4 colour device is designed specifically for medium and large-sized work groups, offering both reliability and fast 30ppm output. Includes fax.

  • Double-sided print, copy and scan.
  • 7-inch full-colour touch panel provides ease of use.
  • HyPAS™ solution platform enables powerful customisations.
Engine speed

Up to 30 pages A4 per minute in colour and b/w

Resolution

1200 x 1200 dpi (tulostus, hiljaisempi nopeus), 600 x 600 dpi (skannaus/kopiointi)

Dimensions (W x D x H)

475 x 558 x 616 mm

Warranty

Additional warranty on long-life parts for 3 years or 200 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Multi-Functional Products for day-to-day tasks

    Multi-Functional Products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

    Multi-Functional Products for day-to-day tasks
    Multi-Functional Products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • A3 and A4 printers for all needs

    A3 and A4 printers for all needs

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    A3 and A4 printers for all needs
    A3 and A4 printers for all needs

    High quality, high reliability and high efficiency are essential.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS M6630cidn drivers
  • ECOSYS M6630cidn documentation
  • ECOSYS M6630cidn software

Main Specifications

  • General
  • Paper Handling
  • Print
  • Copy
  • Scan
  • Fax
General type
Colour multifunctional for A4 format
Engine speed
Up to 30 pages A4 per minute in colour and b/w
Warm-up time
Approx. 26 seconds or less
Power consumption
Printing: 496 W Copying: 521 W Low power mode: -- W Ready mode: 70 W Sleep-mode: 0.6 W
Warranty
1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Input capacity
100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm)
Max. input capacity with options
1,850 sheets
Duplex unit
Duplex as standard supports 60 – 163 g/m²; A4, A5, B5, Letter, Legal
Max. output capacity
Max. 250 sheets face-down with paper full sensor
Document processor
Reversing document processor: 75-sheet, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
Processor
Cortex-A9 Dual core 1,2 GHz
Fonts
93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Security features: IPSec, HTTPS, SNMPv3, IPPS, Encrypted PDF Direct Print, Private Print, Secure printing via SSL, POP over SSL, SMTP over SSL, Access control via 100 integrated department codes Data Security Kit (E) protects data on the optional SSD
Applicable OS
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Max. original size
A4/legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
5 Reductions / 5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Map, Printed document
Digital copy features
Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change, copy density control
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA , WSD scan
Scan speed
60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi,A4 colour), 26 ipm (300 dpi, A4, b/w) (Duplex), 17 ipm (300 dpi, A4 colour) (Duplex)
Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
600, 400, 300, 200 dpi, 256 greyscales per colour
Max. scan size
A4 / legal
File type
TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
Original recognition
Text, photo, text + photo, light text, optimised for OCR
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2 seconds
Transmission speed
3 seconds or less
Scanning density
Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, Halftone: 256 greyscales
Max. original size
A4 / legal
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

  • Paper Handling Options
  • Consumables
  • Options

TK-5270K
Average continuous black toner yield 8,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous black toner yield 3,500 pages in accordance with ISO /IEC 19798.

TK-5270C
Average continuous cyan toner yield 6,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 2,500 pages in accordance with ISO /IEC 19798.

TK-5270M
Average continuous magenta toner yield 6,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 2,500 pages in accordance with ISO /IEC 19798.

TK-5270Y
Average continuous yellow toner yield 6,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 2,500 pages in accordance with ISO /IEC 19798.

MD3-1024
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

HD-6
32 GB SSD hard disc for easy document management

HD-7
128 GB SSD hard disc for easy document management

Data Security Kit (E) AC
In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HD-6, HD-7, HD-14 or SD-card is needed.

Card Reader Holder 10
To integrate the USB IC Card Reader

UG-33
ThinPrint support

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
