    mfp-540x540-angled-ecosysM6235cidn

    ECOSYS M6235cidn

    This A4 colour device is designed specifically for medium and large-sized work groups, offering both reliability and fastest 35ppm output.

    • Double-sided print, copy and scan.
    • 7-inch full-colour touch panel provides ease of use.
    • HyPAS™ solution platform enables powerful customisations.
    • Quick scanning with Single Pass Duplex scanning.
    Engine speed

    Up to 35 pages A4 per minute in colour and b/w

    Resolution

    1200 x 1200 dpi (print, at reduced speed) 600 x 600 dpi (scan/copy)

    Dimensions (W x D x H)

    480 x 577 x 619.5 mm

    Warranty

    Additional warranty on long-life parts for 3 years or 200 000 pages

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man leaning back in his chair

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks
      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman smiling in meeting

      A4 printer for all needs

      KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A4 printer for all needs
      A4 printer for all needs

      High quality, high reliability and high efficiency are essential.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS M6235cidn drivers
    • ECOSYS M6235cidn documentation
    • ECOSYS M6235cidn software

    Main Specifications

    General

    • General
    • Paper Handling
    • Print
    • Copy
    • Scan
    mfp-540x540-angled-ecosysM6235cidn
    General type
    Colour multifunctional for A4 format
    Engine speed
    Up to 35 pages A4 per minute in colour and b/w
    Warm-up time
    Approx. 25 seconds or less
    Power consumption
    Printing: 532 W Copying: 547 W Ready mode: 84 W Sleep-mode: 0.6 W
    Warranty
    1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity
    100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm).
    Max. input capacity with options
    1,850 sheets
    Duplex unit
    Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal
    Max. output capacity
    250 sheets face-down with paper full sensor
    Document processor
    Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
    Processor
    Cortex-A9 Dual core 1,2 GHz
    Fonts
    93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)
    Features
    Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
    Max. original size
    A4/legal
    Continuous copy
    1 - 999
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    7 Reductions/5 Enlargements
    Image adjustments
    Text + Photo, Photo, Text, Map, Printed document
    Digital copy features
    Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
    Scan functionalities
    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA, WSD scan
    Scan speed
    62 ipm (300 dpi, A4, b/w), 46 ipm (300 dpi, A4 colour), 46 ipm (300 dpi, A4, b/w), 32 ipm (300 dpi, A4 colour)
    Scan features
    Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Scan resolution
    600, 400, 300, 200 dpi, 256 greyscales per colour
    Max. scan size
    A4 / legal
    File type
    TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
    Original recognition
    Text, photo, text + photo, light text, optimised for OCR

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

    SH-13
    Staple cartridge 2 x 1,500

    TK-5280C
    Average continuous cyan toner yield 11000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 5,000 pages in accordance with ISO/IEC 19798.

    TK-5280K
    Microfine toner black for 13000 A4 Capacity of starter toner is black 6,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

    TK-5280M
    Average continuous magenta toner yield 11,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 6,000 pages in accordance with ISO/IEC 19798.

    TK-5280Y
    Average continuous yellow toner yield 11,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 5,000 pages in accordance with ISO/IEC 19798.

    CB-5100H-B
    Cabinet

    CB-5100L-B
    Cabinet

    Card Reader Holder 10
    To integrate the USB IC Card Reader

    Data Security Kit (E) AC
    In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

    HD-6
    32 GB for easy document management

    HD-7
    128 GB SSD hard disc for easy document management

    IB-36
    Wireless LAN (802.11b/g/n) with Wi-Fi Direct

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOCERA Life 3 years
    Warranty extension 3 years on-site

    KYOCERA Life 4 years
    Warranty extension 4 years on-site

    KYOCERA Life 5 years
    Warranty extension 5 years on-site

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024
    1,024 MB RAM Expansion

    MDDR3-2GB
    2,048 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    Scan extension Kit (A) AC
    Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

    UG-33
    ThinPrint support

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

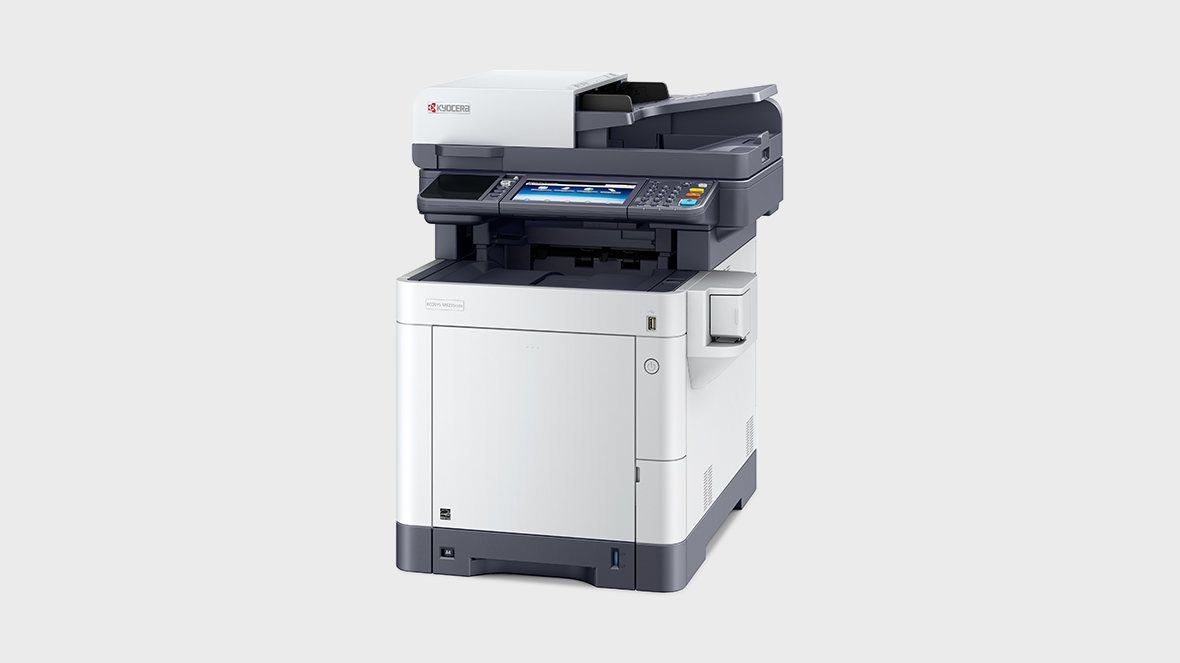

    • imagegallery-1180x663-ECOSYS-M6235cidn-angled-2

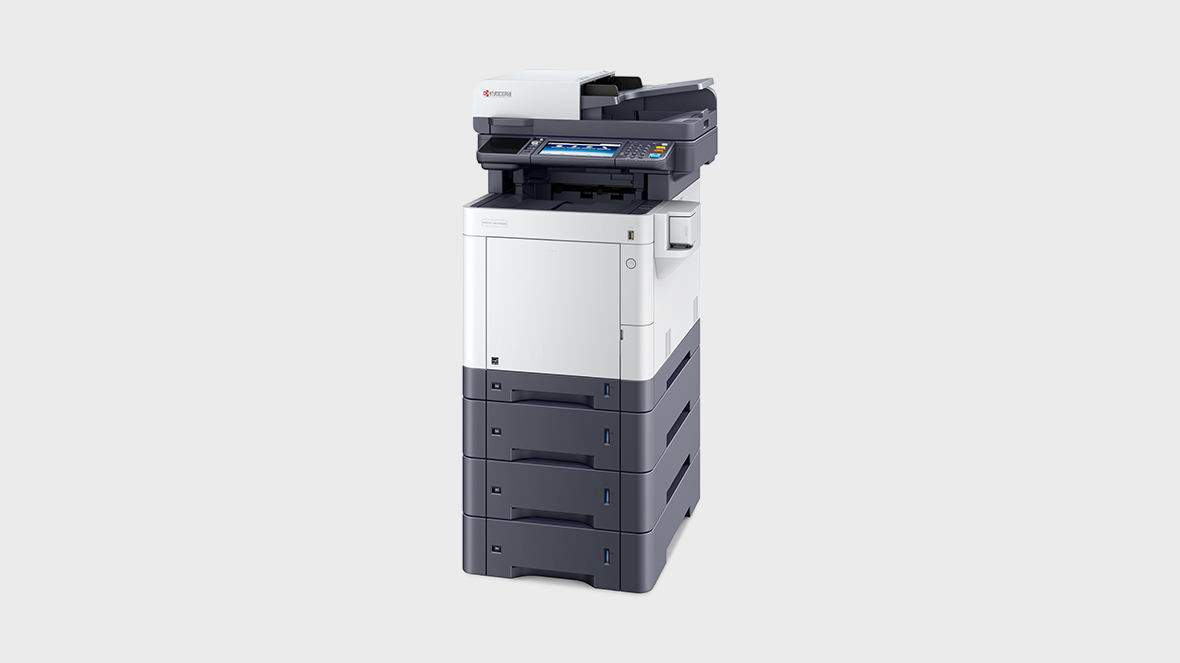

    • imagegallery-1180x663-ECOSYS-M6235cidn-angled

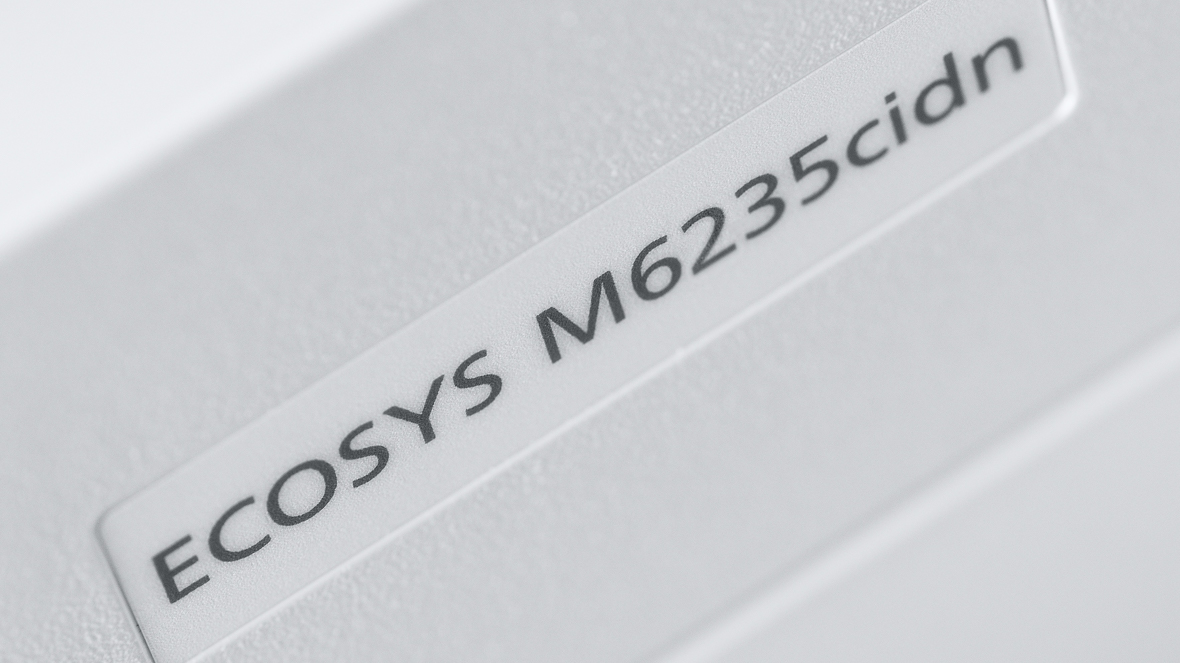

    • imagegallery-1180x663-ECOSYS-M6235cidn-detail

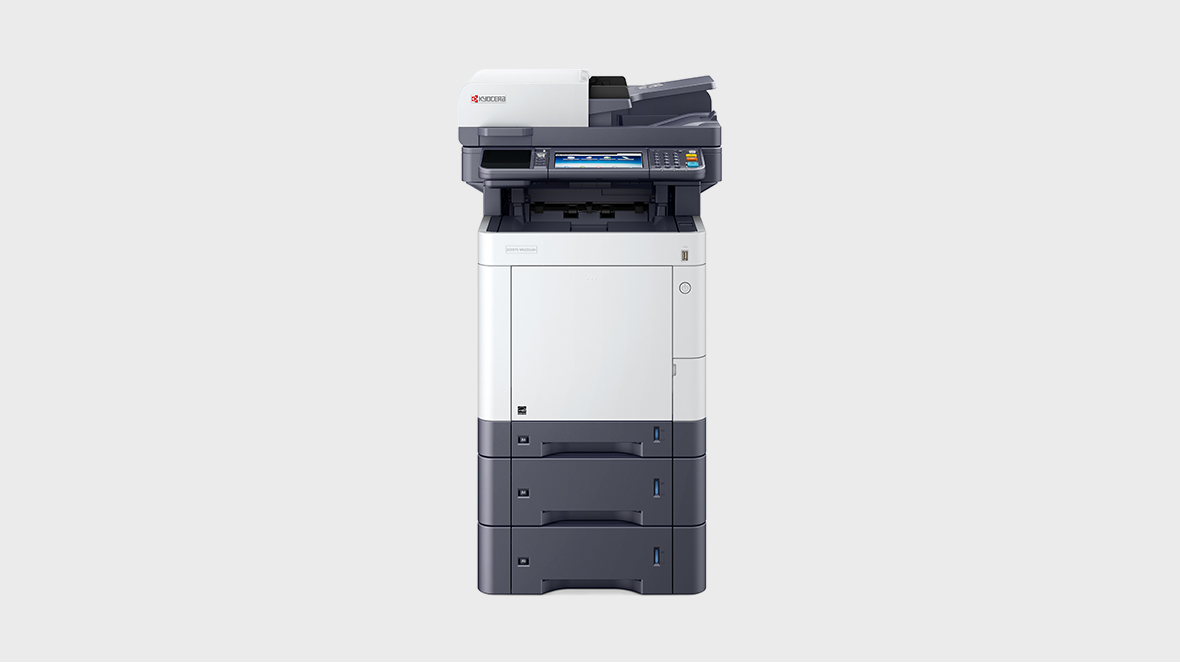

    • imagegallery-1180x663-ECOSYS-M6235cidn-front

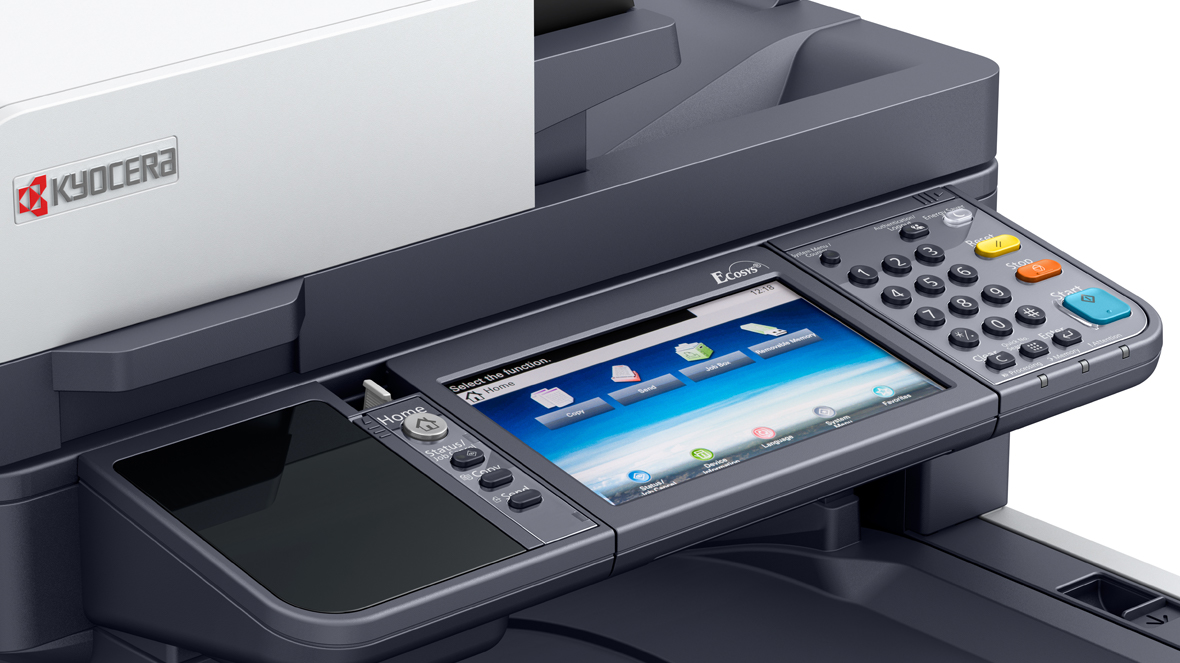

    • imagegallery-1180x663-ECOSYS-M6235cidn-panel
