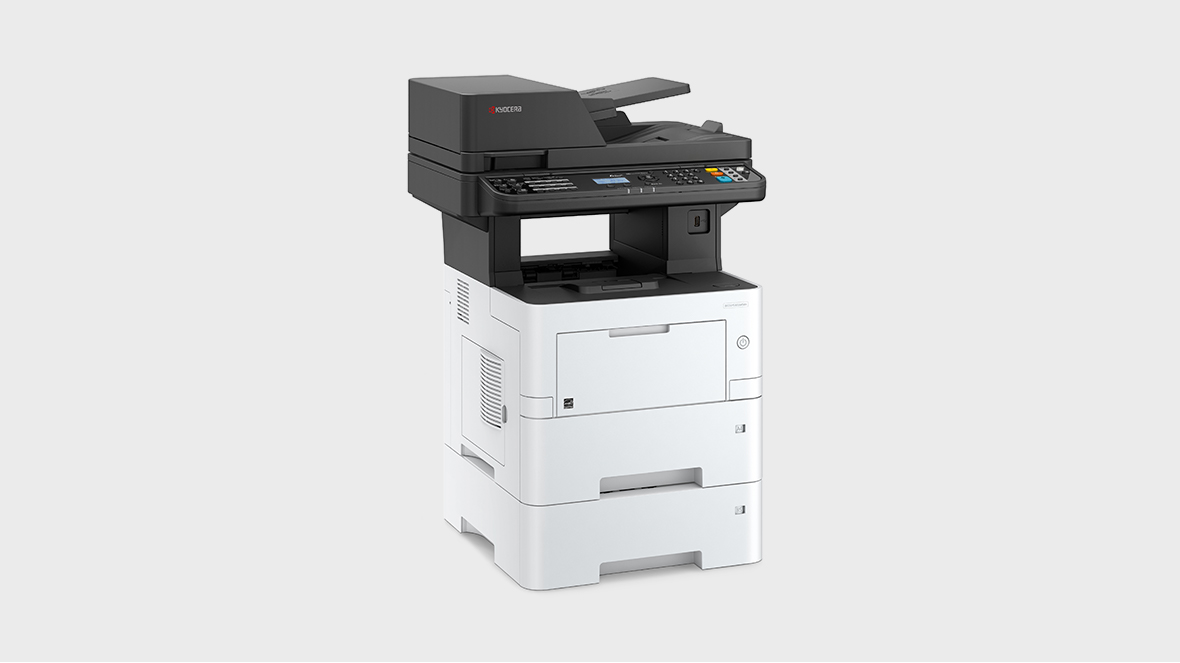

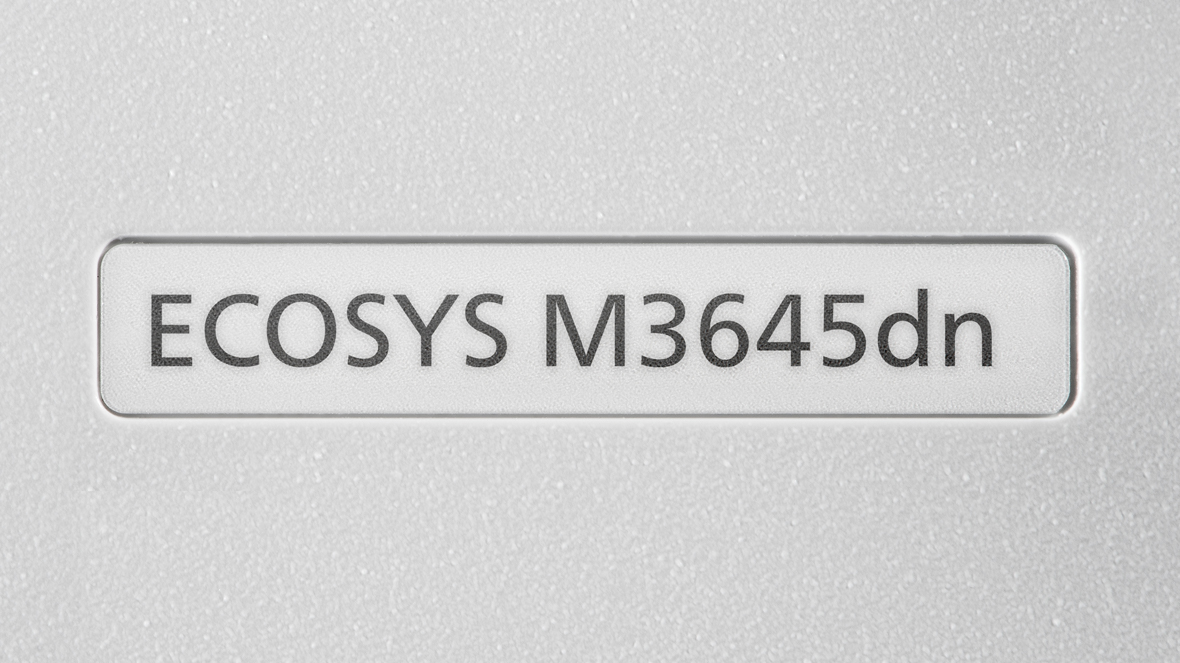

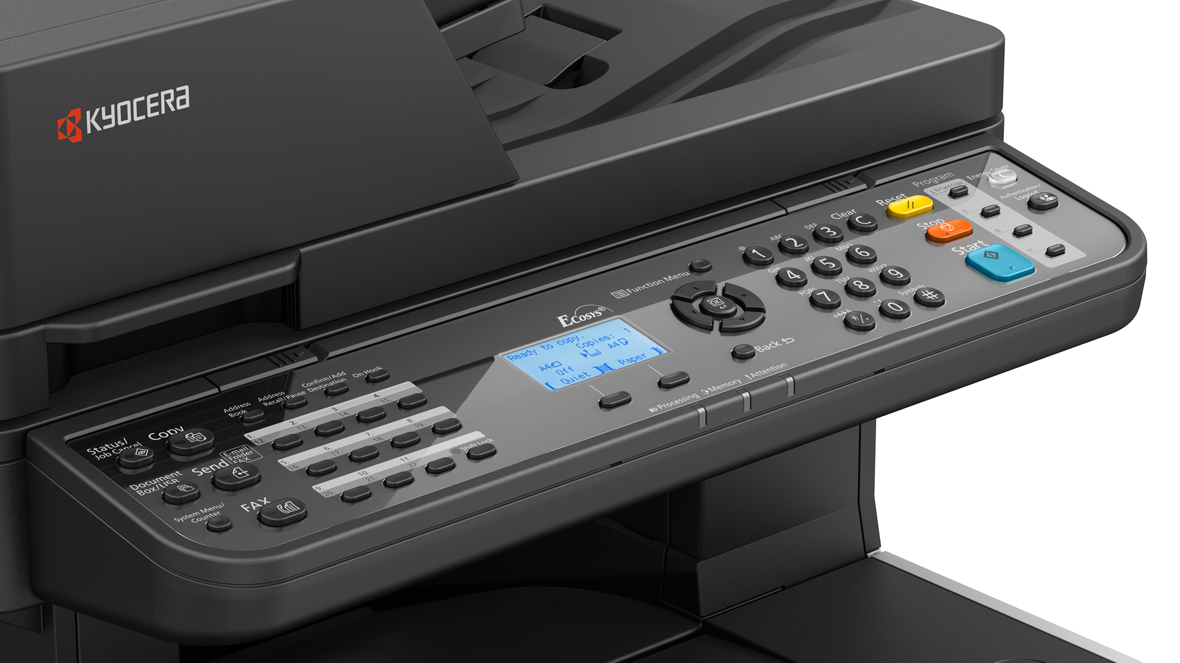

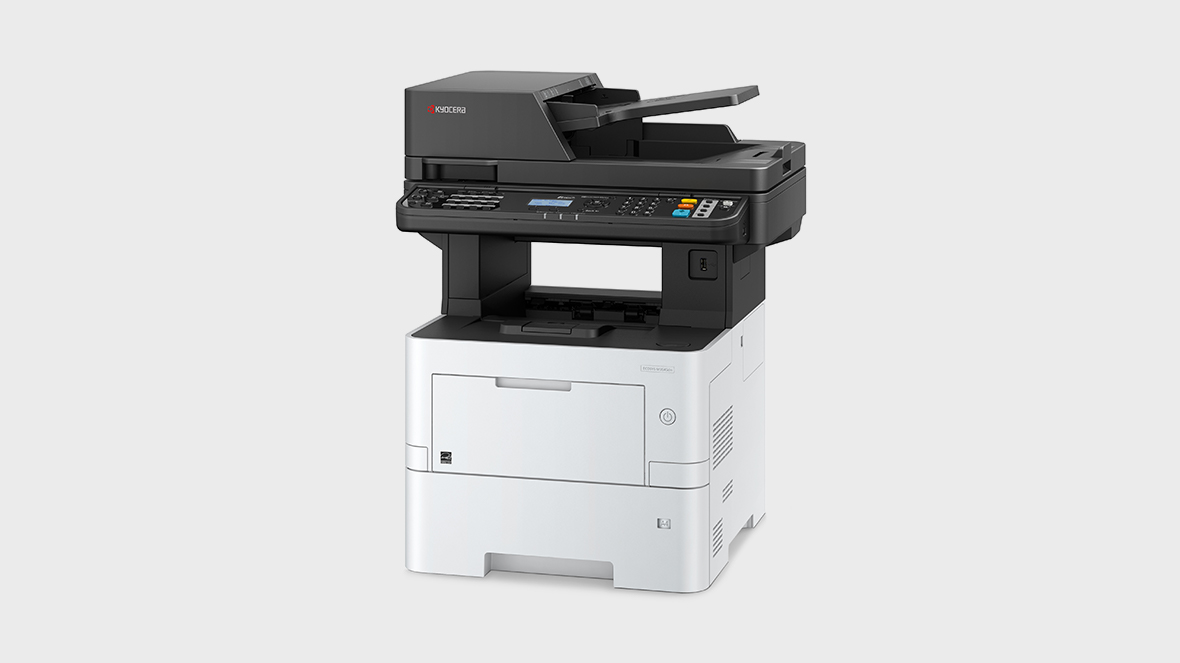

ECOSYS M3645dn

This Multi-Functional Product is made for dynamic teams of any size. It meets the high demands of users on versatility and productivity whilst also delivering exceptionally low running costs.

  • Double-sided print, copy, scan and fax.
  • Compact design with full functionality.
  • Mobile ready as never before.
  • Full defense with the optional Data Security Kit.
Engine speed

Vitesse d’impression recto : jusqu’à 45 pages A4 en noir/blanc Vitesse d’impression recto-verso : 22,5 pages A4 par minute Vitesse de copie recto-verso : 22,5 pages A4 par minute

Resolution

1,200 dpi quality (1,800 x 600, print), 600 x 600 dpi, 256 greyscales (scan/copy)

Dimensions (W x D x H)

475 x 476 x 575 mm

Warranty

Additional warranty on long-life parts for 3 years or 300 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Multi-Functional Products for day-to-day tasks

    Multi-Functional Products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

    Multi-Functional Products for day-to-day tasks
    Multi-Functional Products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • A4 printer for all needs

    A4 printer for all needs

    KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

    A4 printer for all needs
    A4 printer for all needs

    High quality, high reliability and high efficiency are essential.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS M3645dn drivers
  • ECOSYS M3645dn documentation
  • ECOSYS M3645dn software

Main Specifications

  • General
  • Paper Handling
  • Print
  • Copy
  • Scan
  • Fax
General type
b/w multifunctional for A4 format
Engine speed
Vitesse d’impression recto : jusqu’à 45 pages A4 en noir/blanc Vitesse d’impression recto-verso : 22,5 pages A4 par minute Vitesse de copie recto-verso : 22,5 pages A4 par minute
Warm-up time
Approx. 16 seconds or less
Power consumption
Printing: 630 W Copying: 652 W Low power mode: 29 W Ready mode: 50 W Sleep-mode: 0.5 W
Warranty
1-year warranty (depending on the country) as standard. Kyocera guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Input capacity
Multi-purpose tray: 100 sheets 60–220g/m2 A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm) Standard universal paper cassette: 500 sheet 60–120 g/m2 A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (140 x 148 – 216 x 356 mm)

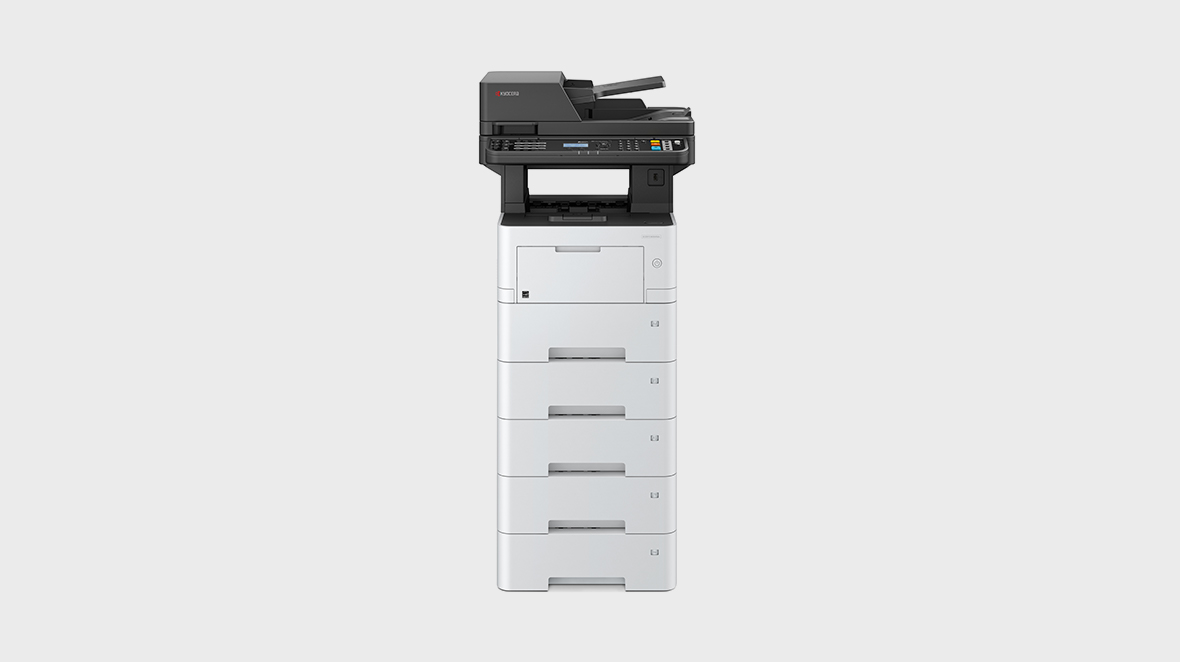

Max. input capacity with options
2,600 sheets A4
Duplex unit
Standard duplex unit 60–120 g/m2 A4, A5, B5, Letter, Legal
Max. output capacity
250-sheet-face-down with paper full sensor
Document processor
Reverse Auto Document Processor: standard, 75 sheets, 50–120 g/m2, A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
Processor
ARM Cortex-A9 1,2 GHz
Fonts
93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3
Applicable OS
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Max. original size
A4/Legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions / 5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Chart/Map, Printing Document
Digital copy features
Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
Scan functionalities

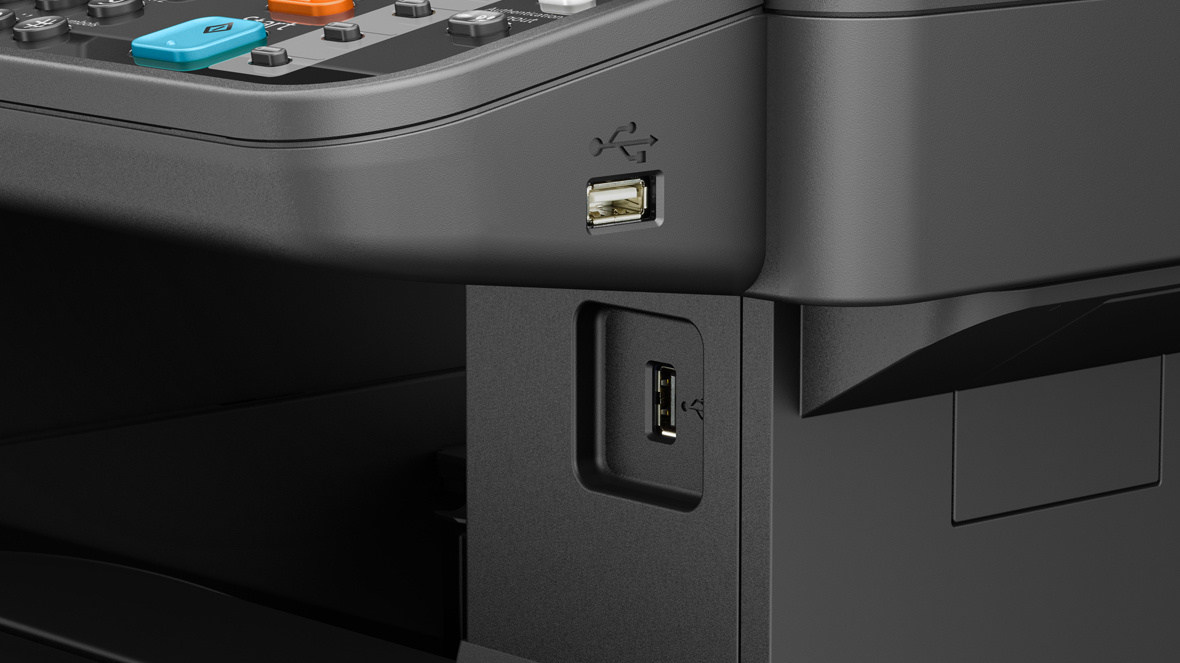

Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA, WSD scan
Scan speed
60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4 colour), 26 ipm (300 dpi, A4, b/w) (Duplex), 17 ipm (300 dpi, A4 colour) (Duplex)
Scan features
Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
600, 400, 300, 200 dpi (256 greyscales)
Max. scan size
A4 / Legal
File type
TIFF/JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A- 1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF
Original recognition
Text, photo, text + photo, for OCR
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds/sheet or less
Transmission speed
Max. 3 seconds (JBIG)
Scanning density
Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi) Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi) Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi) Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi) Halftone: 256 grey scales
Max. original size
A4 / Legal
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

  • Paper Handling Options
  • Consumables
  • Options

TK-3160
Microfine toner for 12,500 pages A4. Capacity of starter toner is 6,000 pages A4, Average continuous toner yield in accordance with ISO/IEC 19752
