    mfp-540x540-angled-ecosysM3145dn

    ECOSYS M3145dn

    This MFP is made for dynamic teams (small to large) with high demands to versatility and productivity, while delivering exceptionally low running costs.

    • Double-sided print and copy and scan
    • Compact design with full functionality
    • Mobile ready as never before
    • Full defense with the optional Data Security Kit
    Engine speed

    Up to 45 pages A4 per minute

    Resolution

    1,200 x 1,200 dpi (print) 600 x 600 dpi (scan/copy)

    Dimensions (W x D x H)

    475 x 476 x 575 mm

    Warranty

    Additional warranty on long-life parts for 3 years or 300 000 pages

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man leaning back in his chair

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks
      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman smiling in meeting

      A4 printer for all needs

      KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A4 printer for all needs
      A4 printer for all needs

      High quality, high reliability and high efficiency are essential.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS M3145dn drivers
    • ECOSYS M3145dn documentation
    • ECOSYS M3145dn software

    Main Specifications

    General

    • General
    • Paper Handling
    • Print
    • Copy
    • Scan
    mfp-540x540-angled-ecosysM3145dn
    General type
    Monochrome multifunctional for A4 format
    Engine speed
    Up to 45 pages A4 per minute
    Warm-up time
    Approx. 16 seconds or less
    Power consumption
    Printing: 630 W Copying: 652 W Low power mode: 29 W Ready mode: 50 W Sleep-mode: 0.5 W
    Warranty
    1-year warranty (depending on the country) as standard. Kyocera guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity
    Multi-purpose tray: 100 sheets, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm). Standard universal paper cassette: 500 sheet, 60–120 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (140 x 148 to 216 x 356 mm). Max. input capacity with options: 2,600 sheets A4
    Max. input capacity with options
    2,600 sheets A4
    Duplex unit
    Standard duplex unit 60–120 g/m2 A4, A5, B5, Letter, Legal
    Max. output capacity
    Max. 250 sheets face-down with paper full sensor
    Document processor
    Reverse Auto Document Processor: standard, 75 sheets, 50–120 g/m2, A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
    Processor
    ARM Cortex-A9 1,2 GHz
    Fonts
    93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
    Features
    PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
    Max. original size
    A4/Legal
    Continuous copy
    1 - 999
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    7 Reductions / 5 Enlargements
    Image adjustments
    Text + Photo, Photo, Text, Chart/Map, Printed document
    Digital copy features
    Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
    Scan functionalities
    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan
    Scan speed
    60 ipm (300 dpi, A4, b/w) 40 ipm (300 dpi, A4 colour) 26 ipm (300 dpi, A4, b/w) (Duplex) 17 ipm (300 dpi, A4 colour) (Duplex)
    Scan features
    Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Scan resolution
    600, 400, 300, 200 dpi, 256 greyscales per colour
    Max. scan size
    A4 / Legal
    File type
    TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
    Original recognition
    Text, photo, text + photo, light text, optimised for OCR

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

    TK-3160
    Microfine toner for 12,500 pages A4. Capacity of starter toner is 6000 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752

    CA-3100
    Caster stand

    CB-360W-B
    Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (W x D x H)

    CB-365W-B
    Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)

    Card Authentication Kit (B)
    Support for various authentication keys available

    Data Security Kit (E) AC
    In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

    HD-17
    64 GB for easy document management

    HD-18
    256 GB SSD hard disc for easy document management

    HD-19
    512 GB SSD hard disc for easy document management

    HD-6
    32 GB for easy document management

    HD-7
    128 GB SSD hard disc for easy document management

    IB-36
    Wireless LAN (802.11b/g/n) with Wi-Fi Direct

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024
    1,024 MB RAM Expansion

    MDDR3-2GB
    2,048 MB RAM Expansion

    MM3-512MB (b)
    512 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Find the perfect match

    Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
    Set it up Set it up

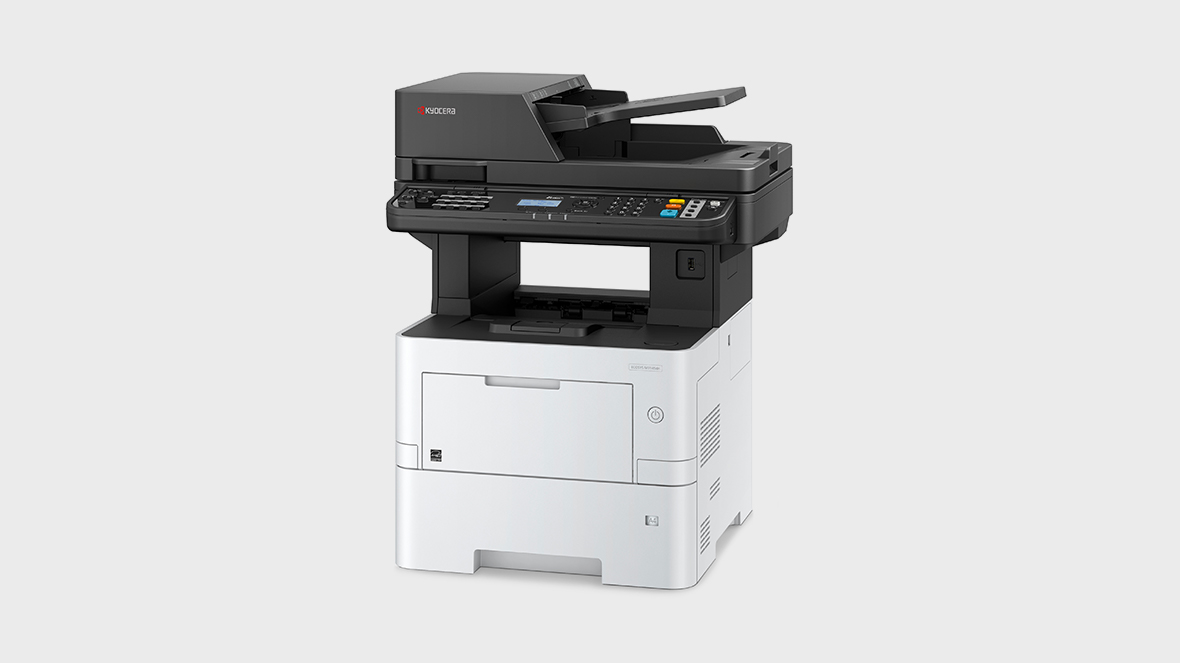

    • imagegallery-1180x663-ECOSYS-M3145dn-angle

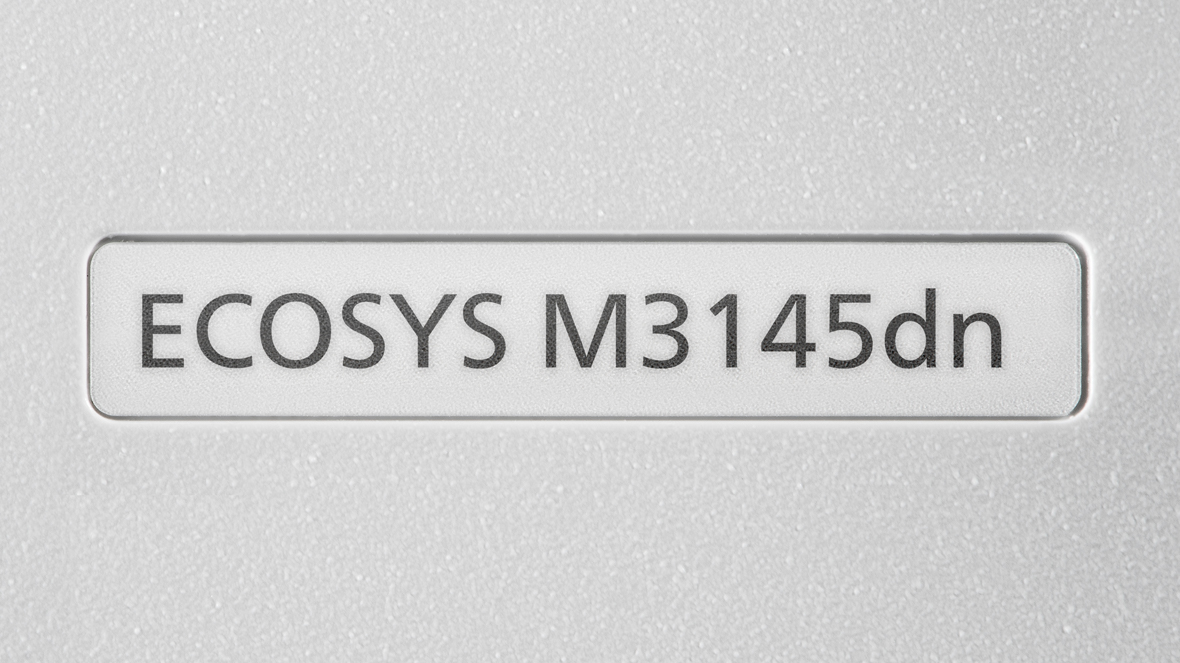

    • imagegallery-1180x663-ECOSYS-M3145dn-detail

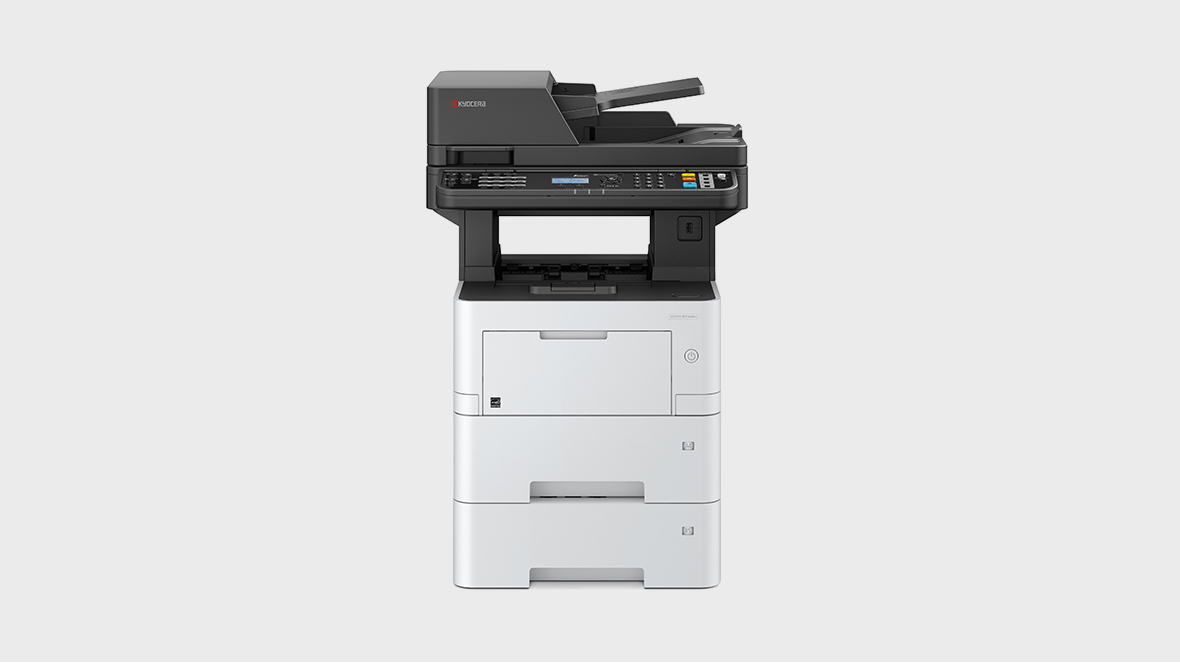

    • imagegallery-1180x663-ECOSYS-M3145dn-front-2

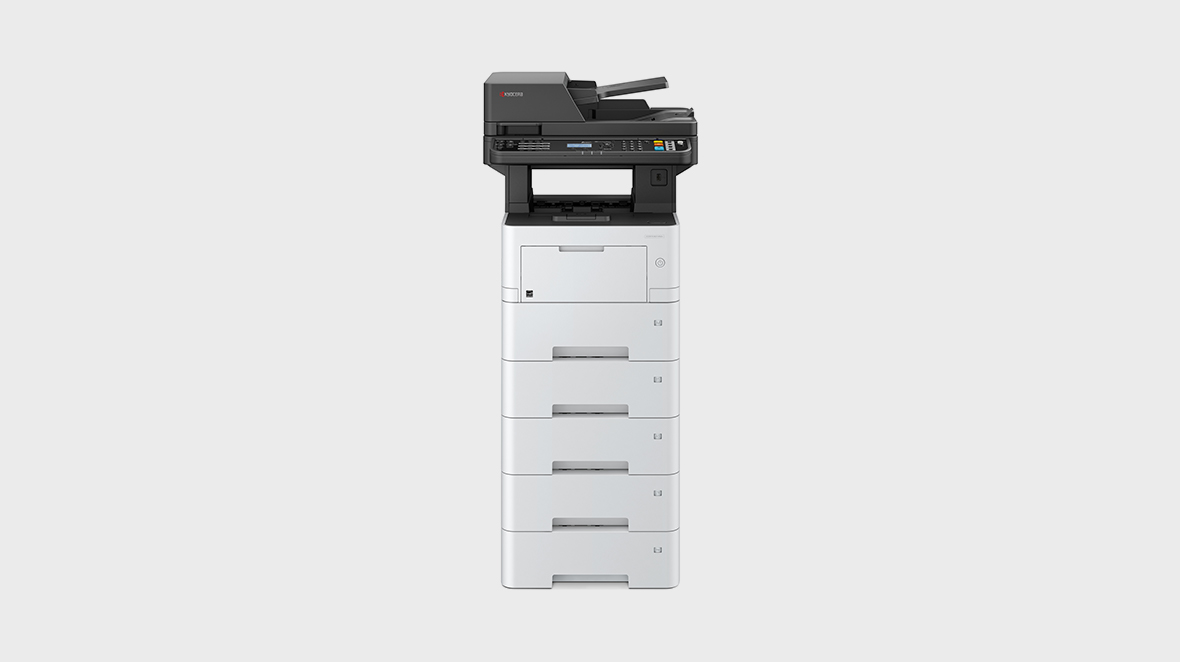

    • imagegallery-1180x663-ECOSYS-M3145dn-front
    • imagegallery-1180x663-ECOSYS-M3145dn-logo

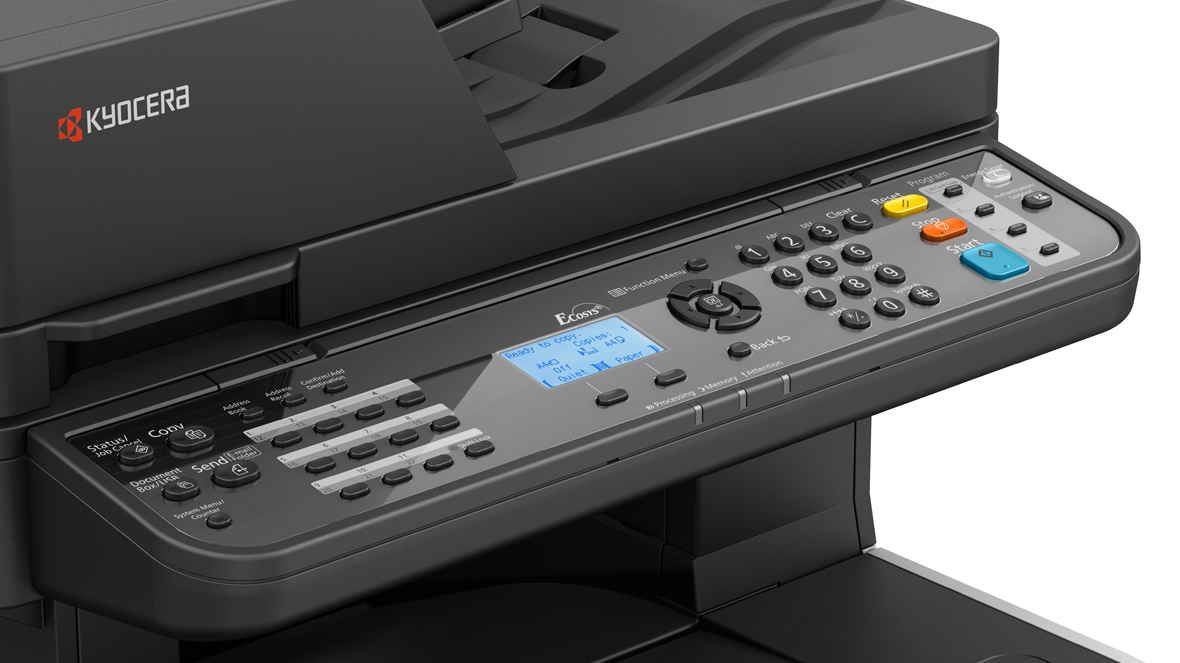

    • imagegallery-1180x663-ECOSYS-M3145dn-panel
